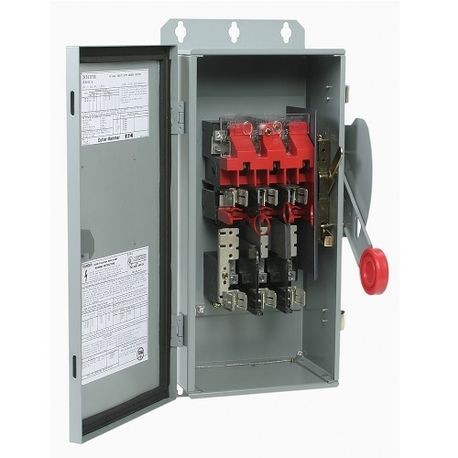

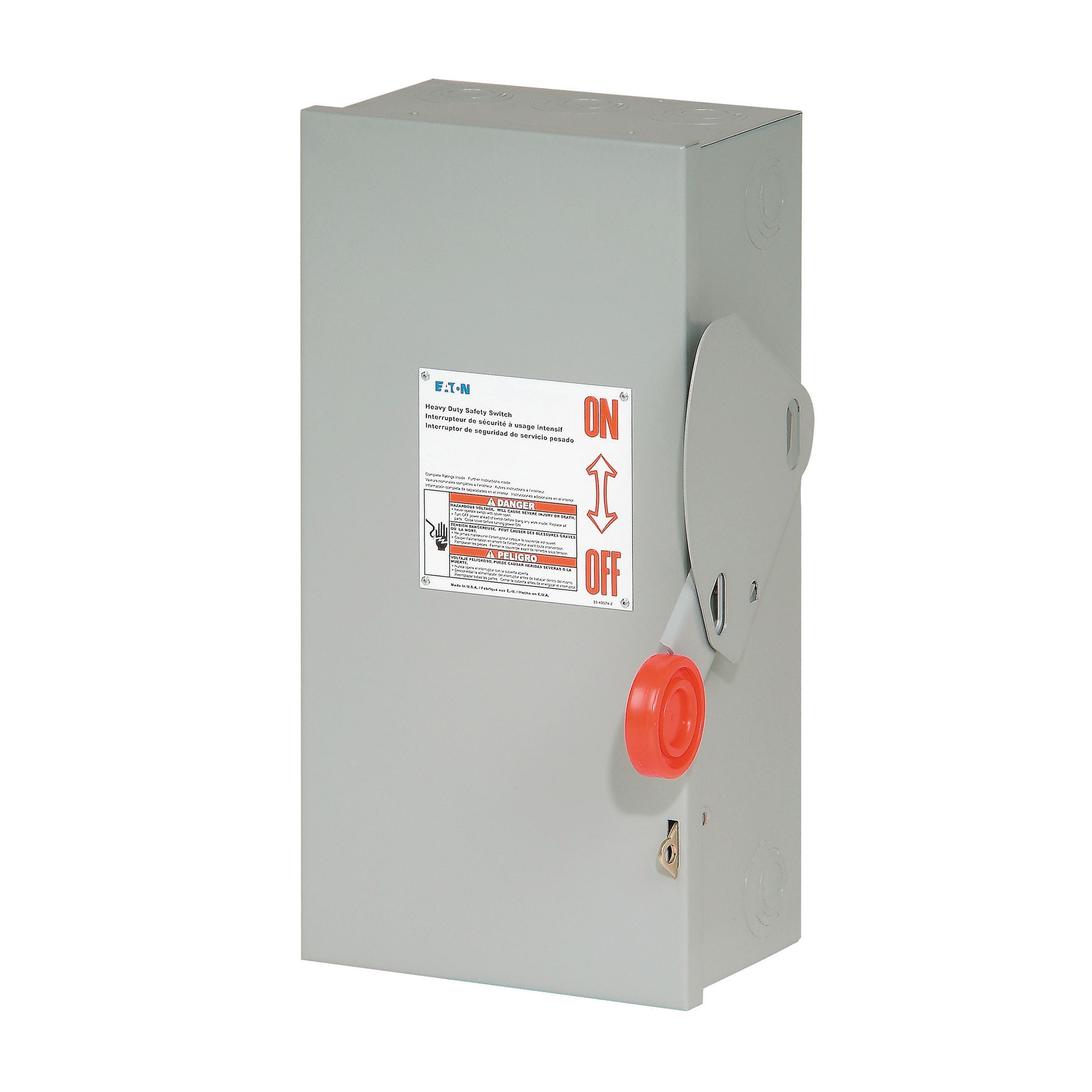

Cutler-Hammer DH361URK Safety Switch 600V 30A Non-Fusible Replacement MPN

Product Description

Cutler-Hammer DH361URK is a heavy-duty safety switch designed for reliable power distribution. This unit features a non-fusible design and provides an amperage rating of thirty amps, making it ideal for various electrical applications. The switch is housed in a NEMA 3R enclosure, which ensures protection from dust and moisture.

• Heavy-duty, non-fusible safety switch
• Rated for 600 volts and up to 30 amps
• Constructed from painted galvanized steel

Product Highlights

Product Information

Standard Information

• Brand: Cutler-Hammer
• MPN: DH361URK

Technical Specifications

• Type: Single-throw
• Amperage Rating: 30A
• Voltage Rating: 600V
• Max Hp Rating: 30 at 600 Vac
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Number Of Poles: Three-pole
• Number Of Wires: Three-wire
• Weight: 16 LB
• Dimensions: 16.5 in (L) x 9.12 in (W) x 8.31 in (H)
• Notes: Suitable for service entrance use with a neutral or ground lug kit installed
