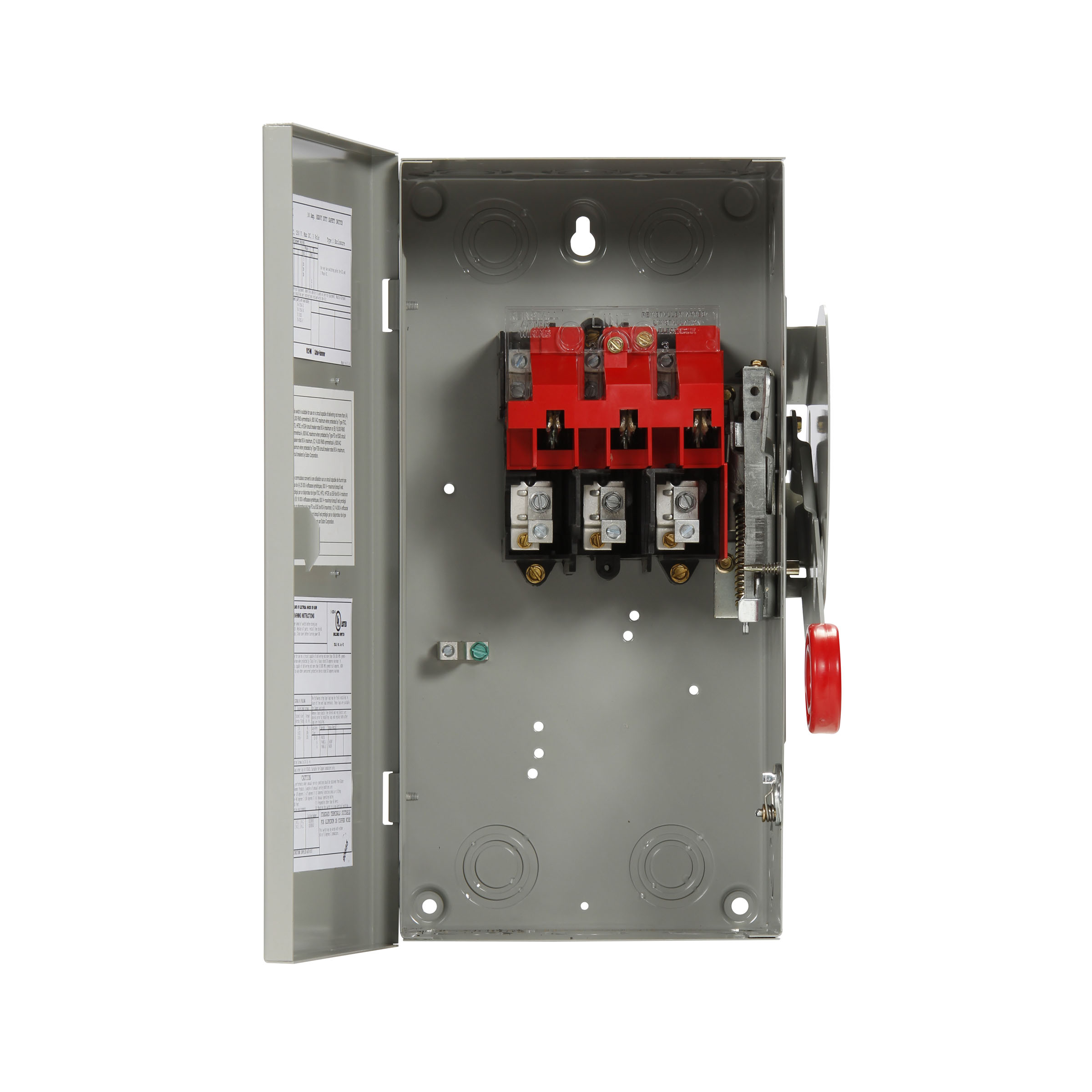

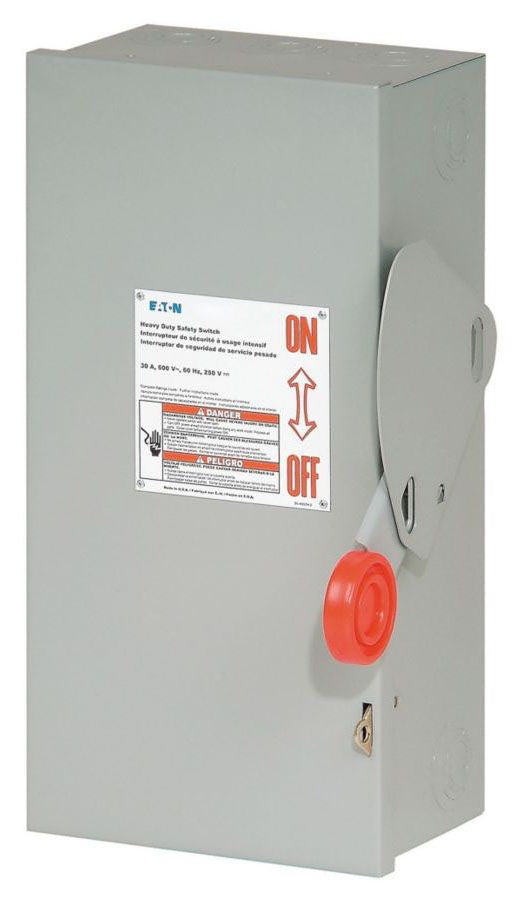

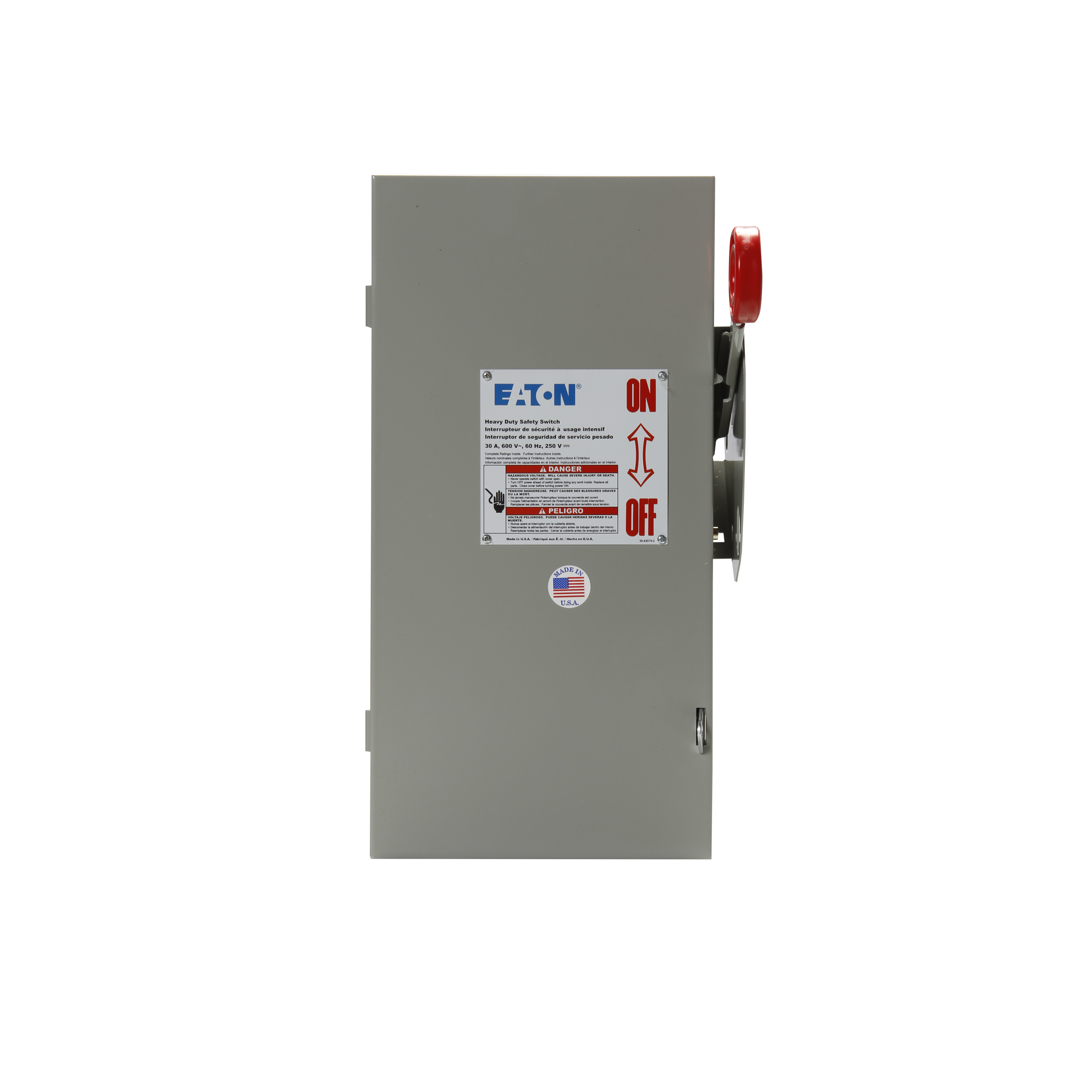

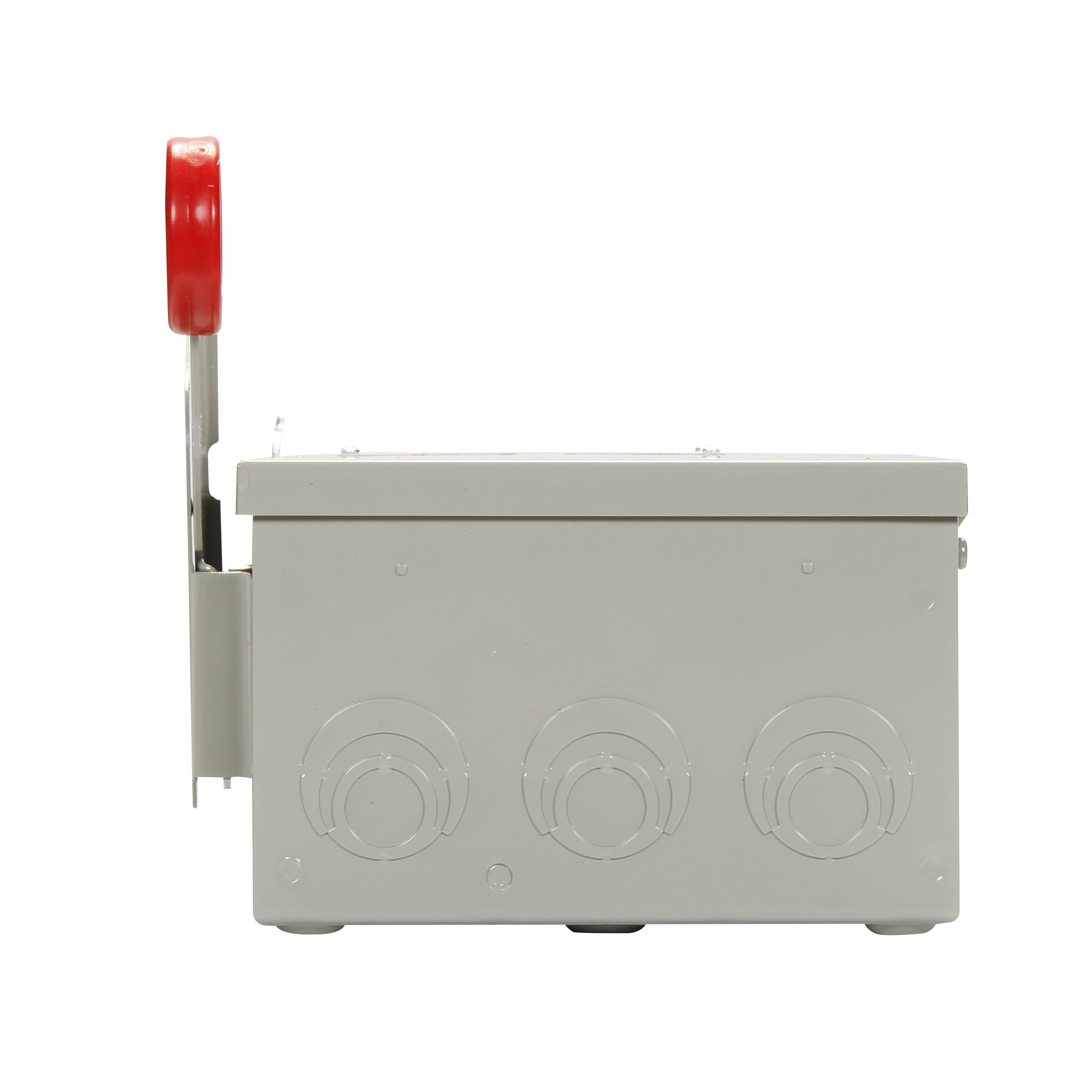

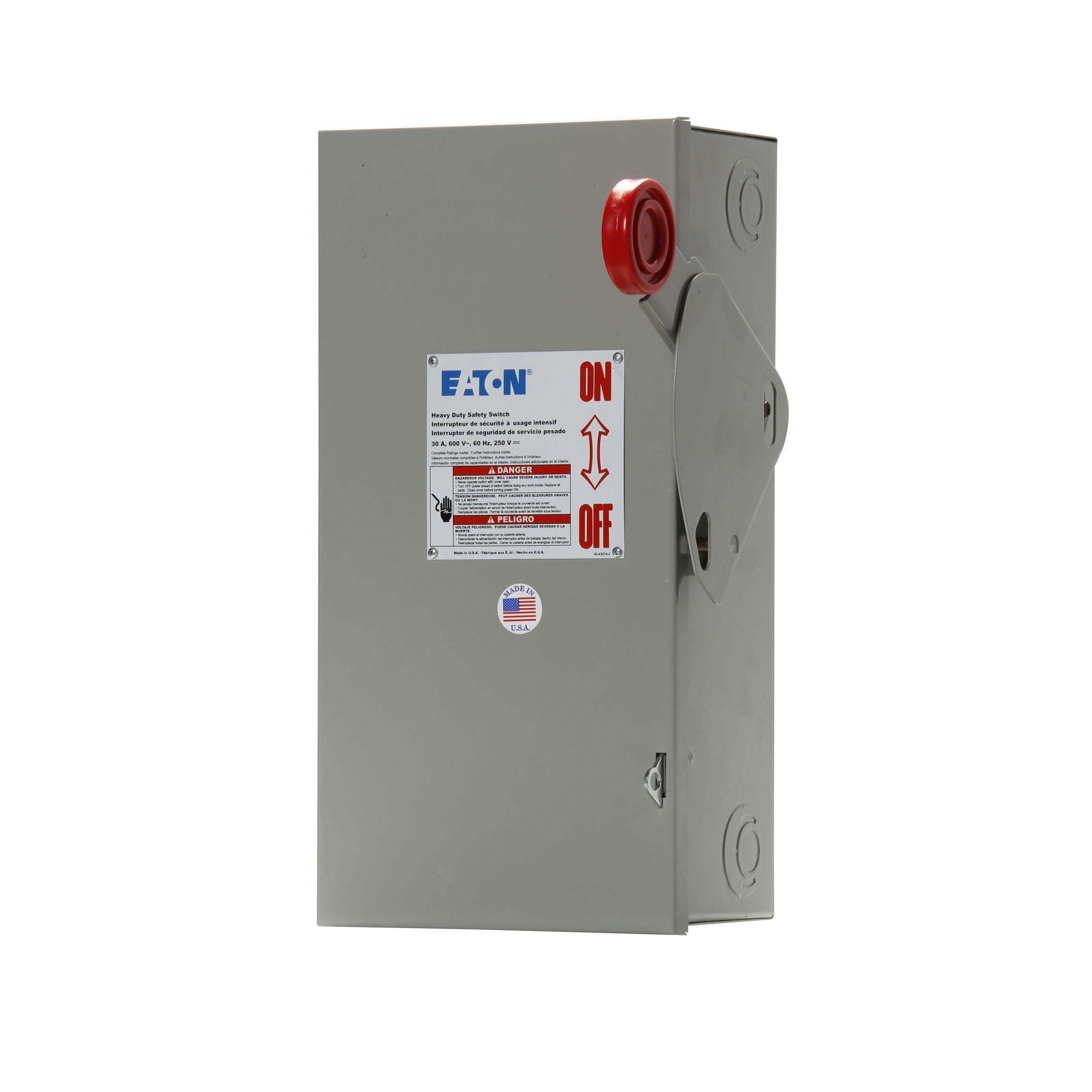

Cutler-Hammer DH361UGK Safety Switch 600V Single-Throw Non-Fusible 30A

Product Description

The Cutler-Hammer DH361UGK is a single-throw safety switch designed for efficient electrical distribution. It operates at a voltage rating of six hundred volts and an amperage rating of thirty amps. This model is suitable for commercial and institutional buildings, making it a reliable choice for power distribution needs.

• Single-throw design for easy operation.
• Meets NEMA 1 standards with a painted steel enclosure.
• Three-pole configuration for versatile wiring options.

Product Highlights

This safety switch is non-fusible, ensuring safe operation even in demanding environments. It is rated for applications requiring a maximum horsepower of up to thirty at six hundred volts in a three-phase setup.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Enclosure: NEMA 1

Technical Specifications

• Type: Single-throw
• Amperage Rating: 30A
• Voltage Rating: 600V
• Max Hp Rating: 7.5 at 480 Vac TD 1 Ph
• Number Of Poles: Three-pole
• Number Of Wires: Three-wire
• Weight: 16 LB
• Height: 8.31 IN
• Length: 16.5 IN
• Width: 9.12 IN
• Enclosure Material: Painted steel
• Fuse Configuration: Non-fusible
• Notes: Suitable for service entrance use with a neutral or ground lug kit installed
