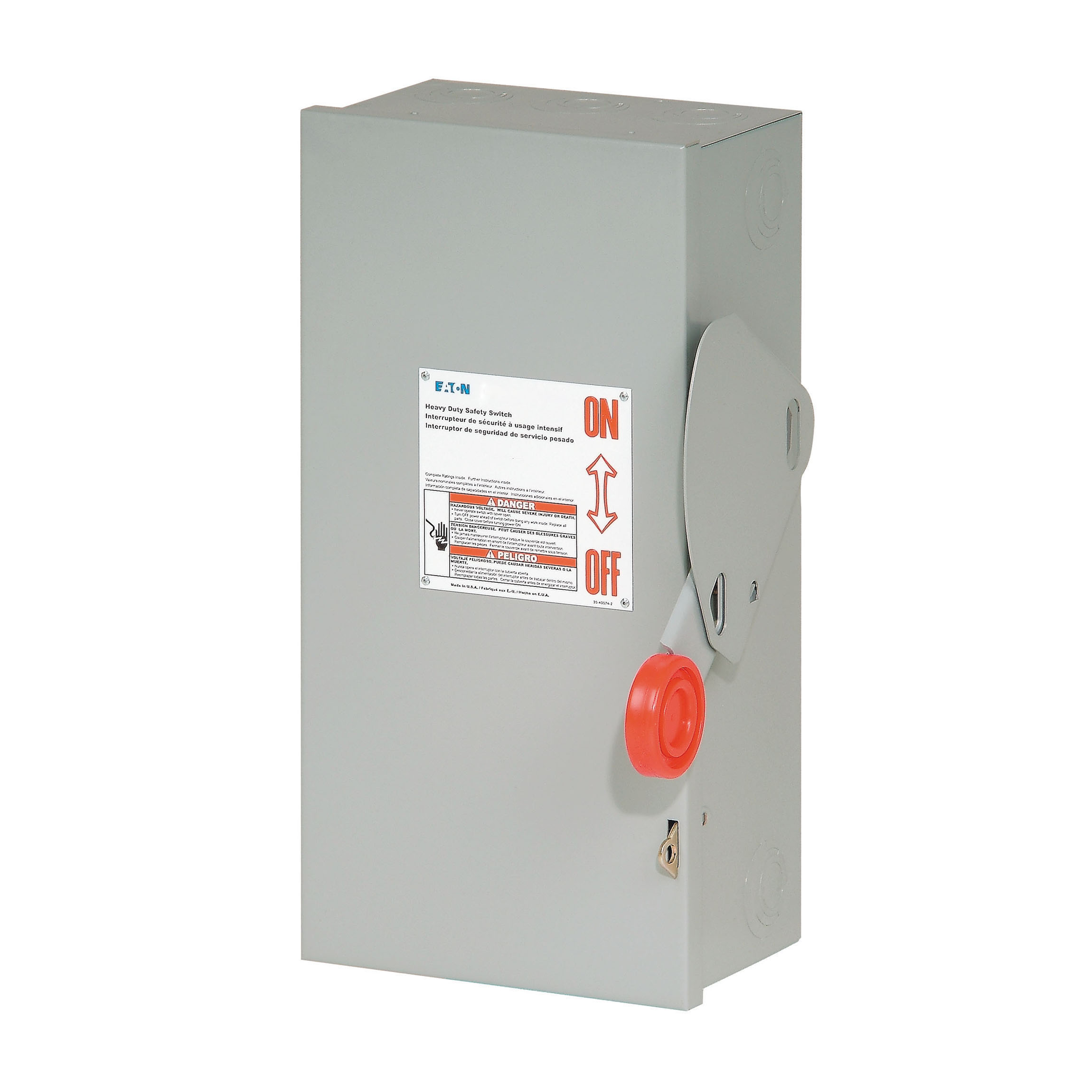

Cutler-Hammer DH361NRK CH3 DH361NRK 600V SFTY SW

Product Description

The Cutler-Hammer DH361NRK is a heavy-duty safety switch designed for reliable power control. This unit is a fusible safety switch rated for thirty amperes at six hundred volts, suitable for various electrical applications. It features three-pole and four-wire configurations for greater versatility in installations. Constructed with painted galvanized steel, it provides durability and protection against harsh conditions.

• Heavy duty fusible safety switch
• Rated for 600V and 30A
• Designed with NEMA 3R enclosure for outdoor use

Product Highlights

This safety switch is ideal for commercial and institutional buildings requiring robust power distribution solutions.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Type: Fusible safety switch

Technical Specifications

• Amperage Rating: 30A
• Voltage Rating: 600V
• Max Hp Rating: 7.5, 10/15, 20 hp (1/3PH @480, 600 V)
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Fuse Class Provision: Class H
• Fuse Configuration: Fusible with neutral
• Number Of Poles: Three-pole
• Number Of Wires: Four-wire
• Wire Size: #14-2 AWG Cu/Al
• Dimensions: 16.7 inches (L) x 9.5 inches (W) x 8.5 inches (H)
• Weight: 12 LB
