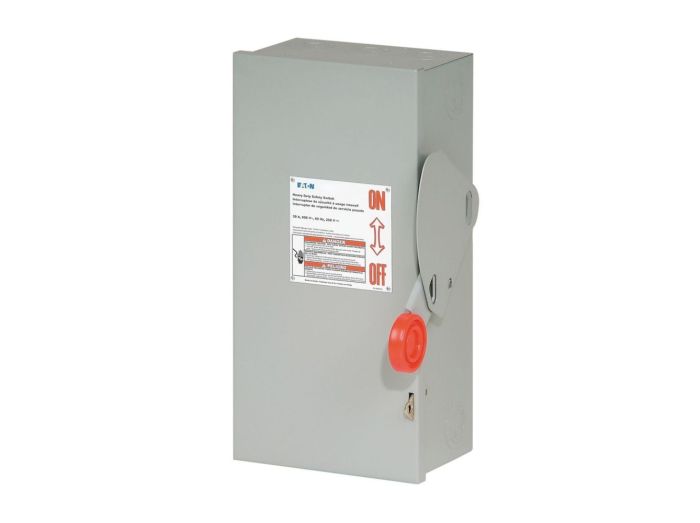

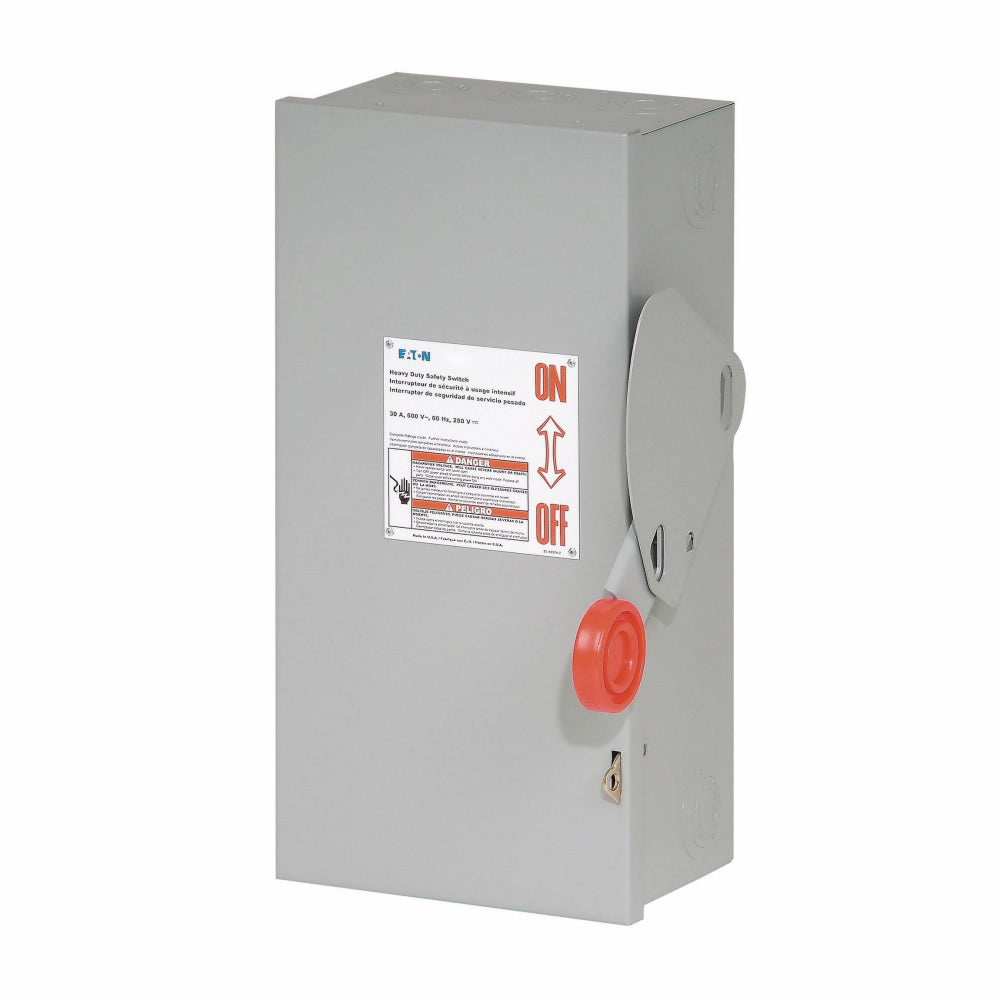

Cutler & Hammer DH361NGK Heavy Duty Single-Throw Fused Safety Switch 30A 600V NEMA 1

Product Description

The CUTLER & HAMMER DH361NGK is a heavy-duty single-throw fused safety switch. This three-pole, four-wire switch is rated for 30A and 600V, and features a NEMA 1 enclosure made of painted steel. It is Class H fuse compatible and designed to be fusible with neutral, accommodating NO.14-NO.2 Cu/Al conductors.

• Heavy duty single-throw fused safety switch
• Fusible with neutral
• NEMA 1 enclosure

Product Highlights

Heavy-duty fusible safety switch with a NEMA 1 enclosure, suitable for commercial and industrial applications requiring reliable performance.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH361NGK

Technical Specifications

• Amperage: 30 A
• Voltage: 600 V
• Enclosure: NEMA 1
• Switch Type: Heavy duty single-throw fused safety switch
• Poles: Three-pole
• Wires: Four-wire
• Fuse Class: Class H
• Features: Fusible with neutral
• Conductor Range: NO.14-NO.2 Cu/Al
• Material: Painted steel
• Product Length/Depth: 16.5 in
• Product Height: 8.5 in
• Product Width: 9.5 in
• Product Weight: 20 lb
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Product Type: Fusible safety switch
• Enclosure material: Painted steel
• Fuse class provision: Class H
• Fuse configuration: Fusible with neutral
• Number of poles: Three-pole
• Number of wires: 4
• Type: Heavy duty fusible safety switch
• Wire size: #14-2 AWG Cu/Al
• HP rating - max: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
• NEMA rating: NEMA 1
• Amperage Rating: 30A
• Voltage rating: 600 V
• Product Category: Heavy Duty, Fusible with neutral
• Part Number: DH361NGK
• Manufacturer: Eaton Cutler-Hammer
• Family: DH Series
• Pole: 3
• Amp: 30
• Volt: 6
• Phase: 3
• Category: Disconnect
• AIC Ratings: 200kA@600V
• Wire: 4
• Configuration: Single
• Switch Style: Fusible
• Suit Fuse: R
• Manufacturer Part Number: DH361NGK
• Product Series: DH
• Description: Eaton Heavy duty single-throw fused safety switch, 30 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp 1/3PH 480, 600 V, 14-2 Cu/Al
• Current Rating: 30 A
• Fusible: Yes
• Fuse Type: H, R
• Neutral: Yes
• Composition: Metallic
• Approvals: CUL, UL
