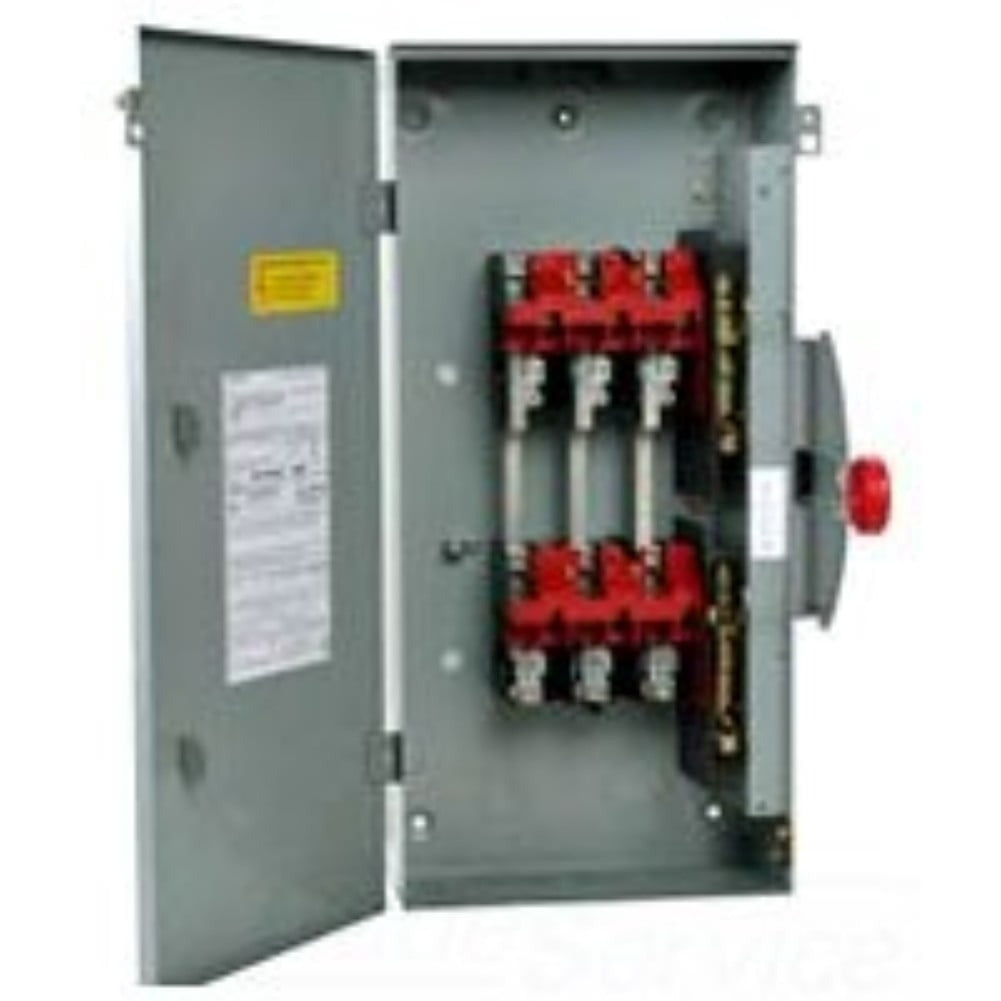

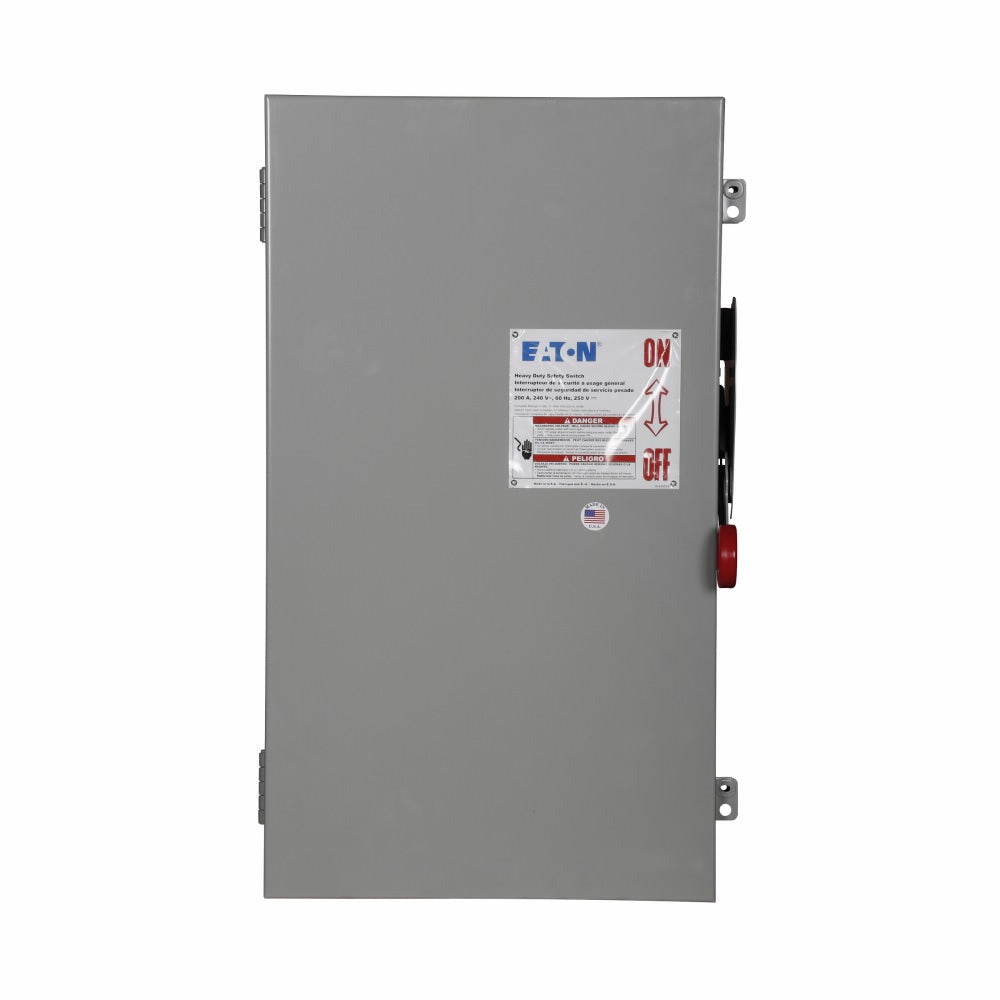

Cutler & Hammer DH324NGK Heavy duty fusible safety switch 200 A 240 VAC (4-wire)

Product Description

Cutler & Hammer DH324NGK is a 200 A, 240 VAC heavy-duty fusible safety switch configured as a 3-pole, 4-wire disconnect with neutral for industrial and commercial power distribution. The switch features a painted steel NEMA 1 enclosure, Class H fuse compatibility, and a 100 kA interrupting rating at 240 V. It is suitable for copper and aluminum conductors and includes arc control and a palm-fitting handle for manual operation.

• 200 A rated, 3-pole fusible safety disconnect with neutral (4-wire); rated 240 VAC
• 100 kA interrupting rating at 240 V; compatible with Class H fuses; conductor range #6–250 kcmil Cu/Al
• NEMA 1 painted steel enclosure with deionizing arc chutes and palm-fitting red handle

Product Highlights

200 A fusible disconnect, 3-pole 4-wire with neutral; NEMA 1; 100 kA AIC

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH324NGK
• Country of Origin: United States
