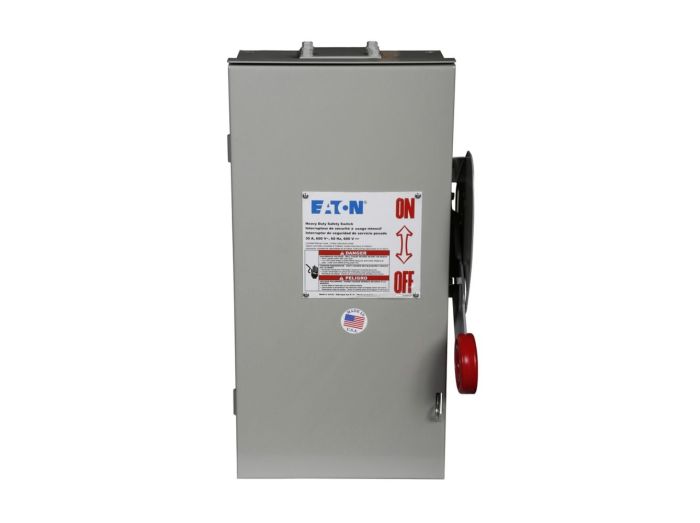

Cutler & Hammer DH261URK Heavy Duty Non-Fusible Safety Switch 30 A

Product Description

The CUTLER & HAMMER DH261URK is a heavy-duty, single-throw, non-fusible safety switch. Rated at 30A, this two-pole, two-wire switch is suitable for service entrance use. It features a painted galvanized steel enclosure, NEMA 3R rating, and is UL Listed. The switch is 100% load break and 100% load make rated.

• Clearly visible, palm fitting red handle for easy operation
• Two points of contact provide a positive open and close
• Triple padlocking capability increases personnel safety

Product Highlights

Heavy-duty, non-fusible safety switch with a NEMA 3R enclosure for commercial and industrial applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH261URK
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton heavy duty non-fusible safety switch
• Catalog Number: DH261URK
• UPC: 786685176635
• Product Length/Depth: 9.89 in
• Product Height: 15.81 in
• Product Width: 8.87 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Product Type: Non-fusible safety switch
• Enclosure: NEMA 3R
• Enclosure material: Painted galvanized steel
• Fuse configuration: Non-fusible
• Number of Poles: 2
• Number of Wires: 2
• Type: Single-throw
• Amperage Rating: 30 A
• HP rating - max: 3 at 240 Vac TD 1 Ph, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 600 Vdc
• NEMA rating: NEMA 3R
• Voltage rating: 600 V
• Product Category: Heavy Duty, Non-Fusible
• Brand: Eaton
• Port Type: Power
• Current Type: AC
• Fuse Type: Switch
• MPN: DH261URK
• Switch Style: Toggle/Joystick
• Suitable For: Wall, Interior
• Country of Origin: United States
• Contact Form: DPST
• Material: Steel
• Finish: Galvanized
• Manufacturer: Eaton
• Product Series: DH
• Family Series: Eaton Safety Switches, DH Series
• Description: Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 30 A, NEMA 3R, Painted galvanized steel, Non-Fusible, Two-pole, Two-wire, 3 at 240 Vac TD 1 Ph, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 600 Vdc
• Switch Type: Heavy Duty
• Voltage: 600 V
• Current Rating: 30 A
• Fusible: No
• Neutral: No
• Composition: Metallic
• Net Weight: 16 lbs
• Gross Weight: 16 lbs
