Cutler & Hammer DH221NRK Safety Switch 30 Amp 240 Volt NEMA 3R

Product Description

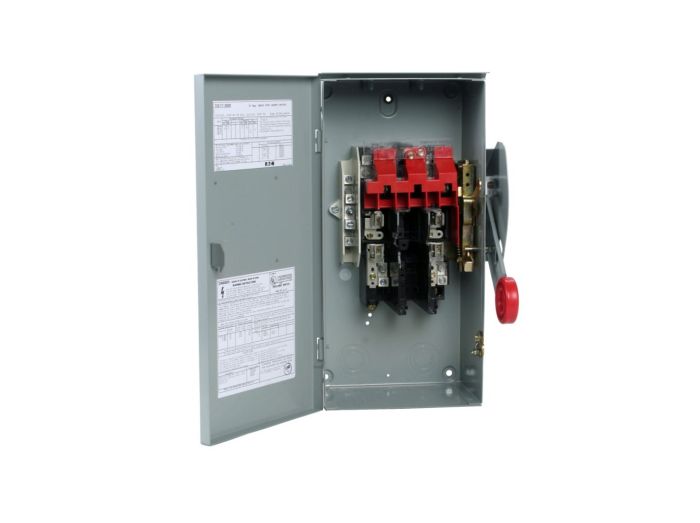

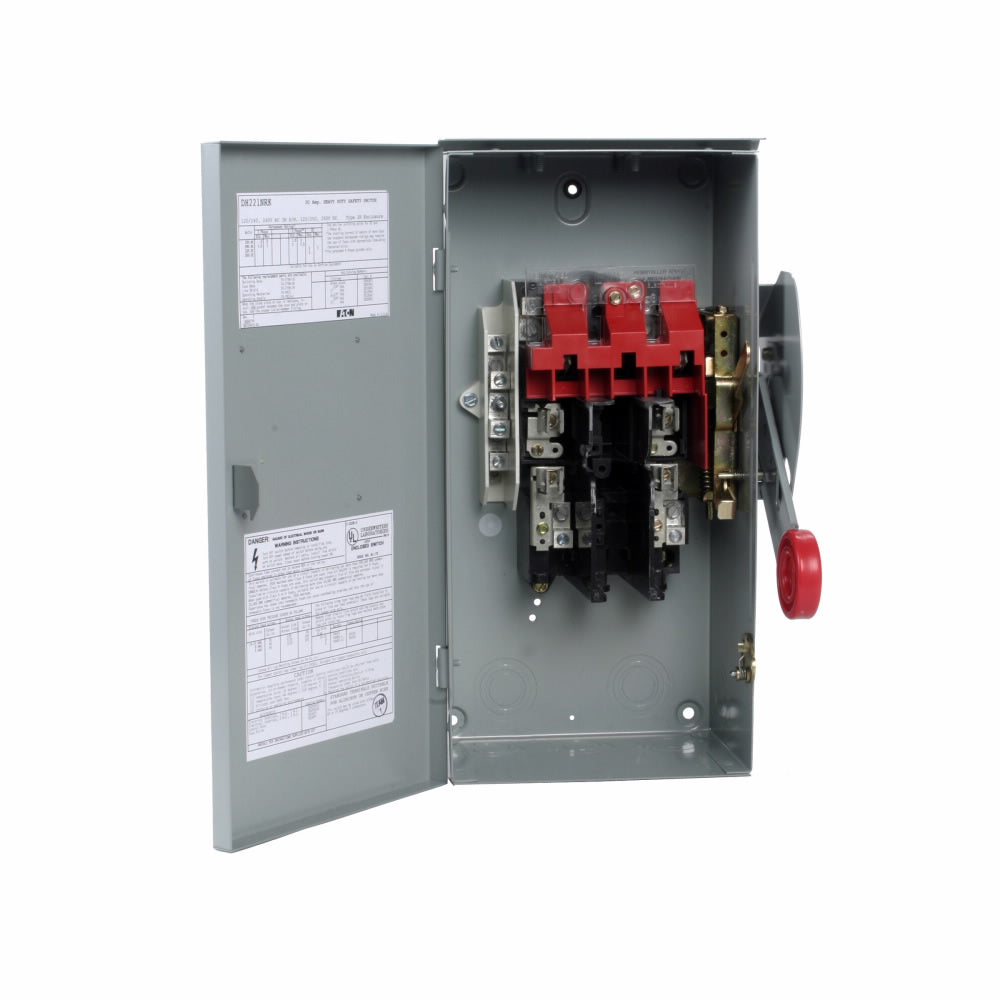

The CUTLER & HAMMER DH221NRK is a 30 Amp, 240 Volt, 2 Pole fusible safety switch designed for heavy-duty applications with NEMA 3R enclosure rating. It features an enhanced visible blade, single-throw design with a painted galvanized steel enclosure. Suitable for single-phase power systems, this switch provides reliable disconnecting means.

• Enhanced visible blade
• Single-throw design
• Painted galvanized steel enclosure

Product Highlights

The Cutler Hammer DH221NRK safety switch is fusible with Class H fuses and its NEMA 3R rating ensures protection against rain and sleet, making it suitable for outdoor use.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH221NRK
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: DH221NRK
• Manufacturer: Eaton
• Product Series: DH
• Family Series: Eaton Safety Switches, DH Series
• Description: Eaton enhanced visible blade single-throw fused safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Two-pole, Three-wire, 240 V, Max Hp: 1.5, 3 hp/3, 7.5 hp/5 hp 1,3PH Std fuse/time delay/250 Vdc
• Switch Type: Heavy Duty
• Number of Poles: 2
• Voltage: 240 V
• Current Rating: 30 A
• Fusible: Yes
• Fuse Type: H, R
• Neutral: Yes
• Composition: Metallic
• NEMA Rating: NEMA 3R
• Approvals: CUL, UL
• Brand: Eaton
• Category: Switch
• Item Subcategory: Disconnect
• Family: DH Series
• Type: DH
• Phase: 1
• AIC rating: 100kA@240V
• Fuse Class: R
• Configuration: Single
• Switch Style: Fusible
• Compatible Frames: SGHA
• Certification: UL Listed,CSA Certified
• Amperage: 30 Amp
• Poles: 2 Pole
