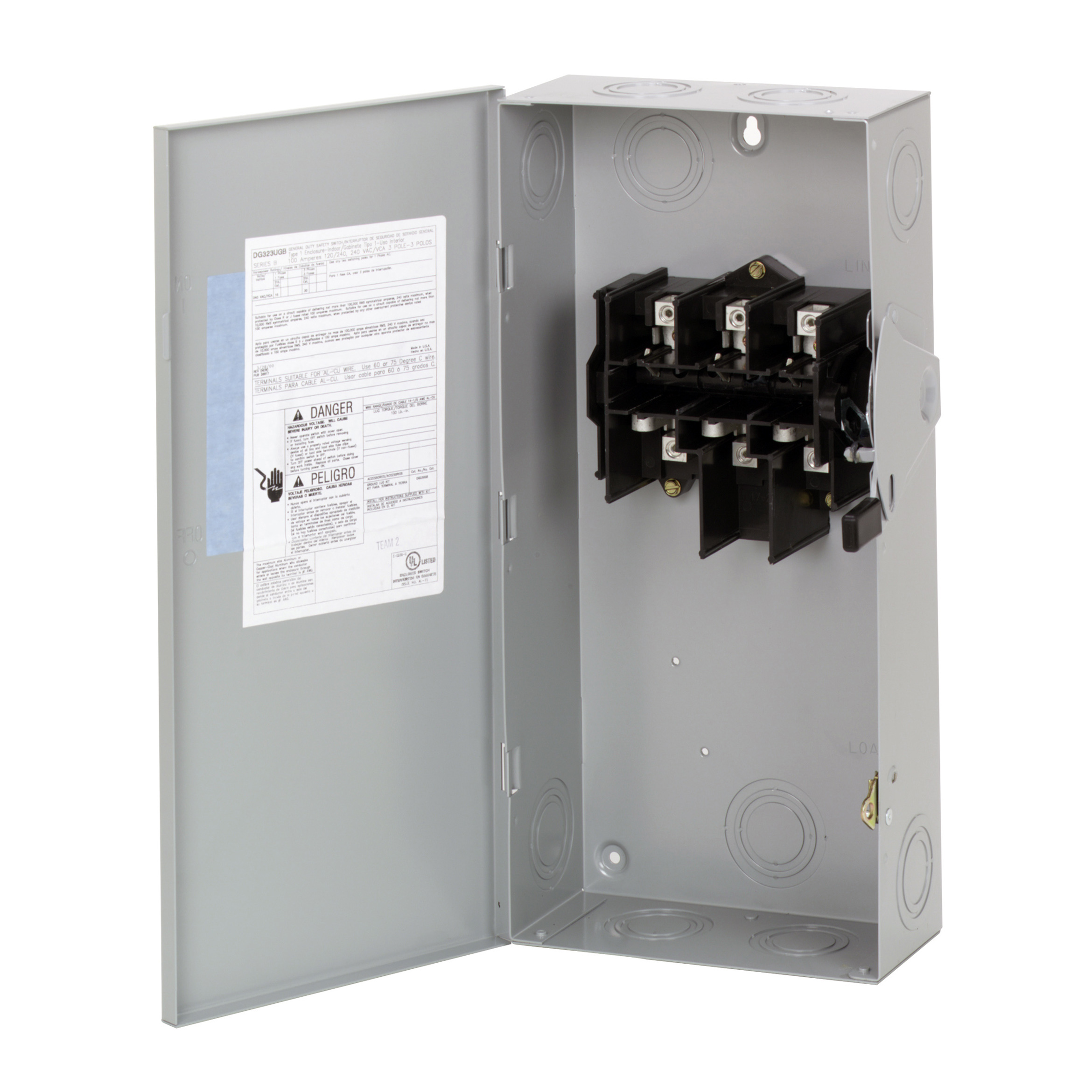

Cutler-Hammer DG323UGB CH3 DG323UGB 100A 240V SFTY SW

Product Description

The Cutler-Hammer DG323UGB is a non-fusible safety switch that is designed for commercial and institutional applications. It handles up to one hundred amperes and operates at two hundred forty volts. The enclosure is rated NEMA 1 and made of painted steel, ensuring durability and indoor protection.

• Type: Non-fusible, single-throw
• Amperage Rating: 100A
• Enclosure: NEMA 1, Indoor

Product Highlights

This safety switch is suitable for general duty applications, providing reliable disconnecting means for your electrical circuits. It is designed for three-phase power and accommodates three wires.

Product Information

Standard Information

• Voltage Rating: 240V
• Enclosure Material: Painted steel

Technical Specifications

• Height: 18.81 inches
• Length: 7.38 inches
• Width: 9.13 inches
• Weight: 12 pounds
• Number Of Poles: Three-pole
• Number Of Wires: Three-wire
• Fuse Configuration: Non-fusible
• Notes: WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
