Cutler & Hammer DG322URB Safety Switch 60A 240V

Brand: CUTLER & HAMMER
SKU: DG322URB
Availability: In Stock

Ships same day if ordered by 12 pm
$194.61
$194.61
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

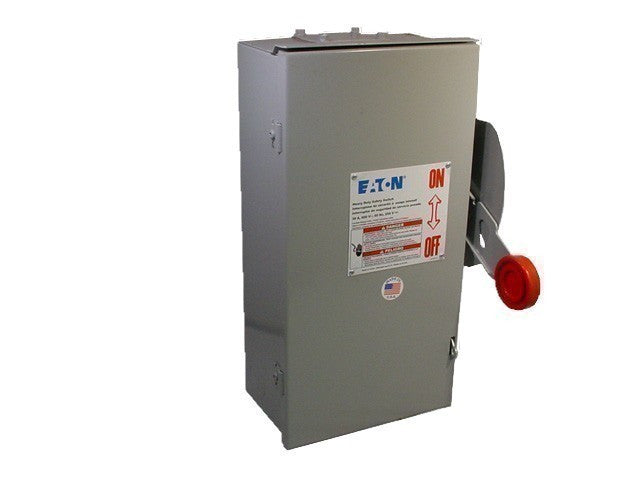

The CUTLER & HAMMER DG322URB is a general duty non-fusible safety switch. This single-throw, three-pole, three-wire switch is rated for 60A and 240V. It is housed in a NEMA 3R rainproof enclosure made of painted galvanized steel. Commonly referred to as a disconnect switch, it manually connects or disconnects the load from the source.

  • Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
  • Suitable for light-duty motor circuits and service entrance
  • Rainproof enclosure for protection against the elements

Product Highlights

The Cutler Hammer DG322URB is ideal for residential and commercial applications requiring a reliable disconnect.

Product Information

Standard Information

  • Brand: CUTLER & HAMMER
  • Manufacturer Part Number: DG322URB
  • Country of Origin: United States
Technical Specifications
Brand
Cutler & Hammer
MPN
DG322URB
Manufacturer
Cutler Hammer
Product Length/Depth
7.38 in
Product Height
14.19 in
Product Width
8.69 in
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
Product Type
Non-fusible safety switch
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Number of poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
60A
Voltage rating
240V
Product Category
General duty safety switch
Product Series
DG
Family Series
Eaton Safety Switches, DG Series
Description
Eaton General duty non-fusible safety switch, single-throw, 60 A, NEMA 3R, Rainproof, Painted galvanized steel, Three-pole, Three-wire, 240 V
Switch Type
General Duty
Voltage
240 V
Current Rating
60 A
Fusible
No
Neutral
No
Composition
Metallic
Approvals
CUL, UL
Net Weight
8.9 lbs
Gross Weight
9 lbs
Phase
3 ph
Wattage Rating
10 HP at 1-Phase, 15 HP at 3-Phase
No. Of Poles
3
Material
Steel
Disconnect Type
Non-Fused
Width
8.69 inch
Depth
7.38 inch
Height
14.38 inch
No. of Circuits
3
Operation
Single Throw
Enclosure Type
Rain-Proof
Standard
UL listed E5239. Meets UL 98 for enclosed switches and NEMA Std. KS-1.
