Cutler & Hammer DG322NGB General Duty Safety Switch 60A 240V

Product Description

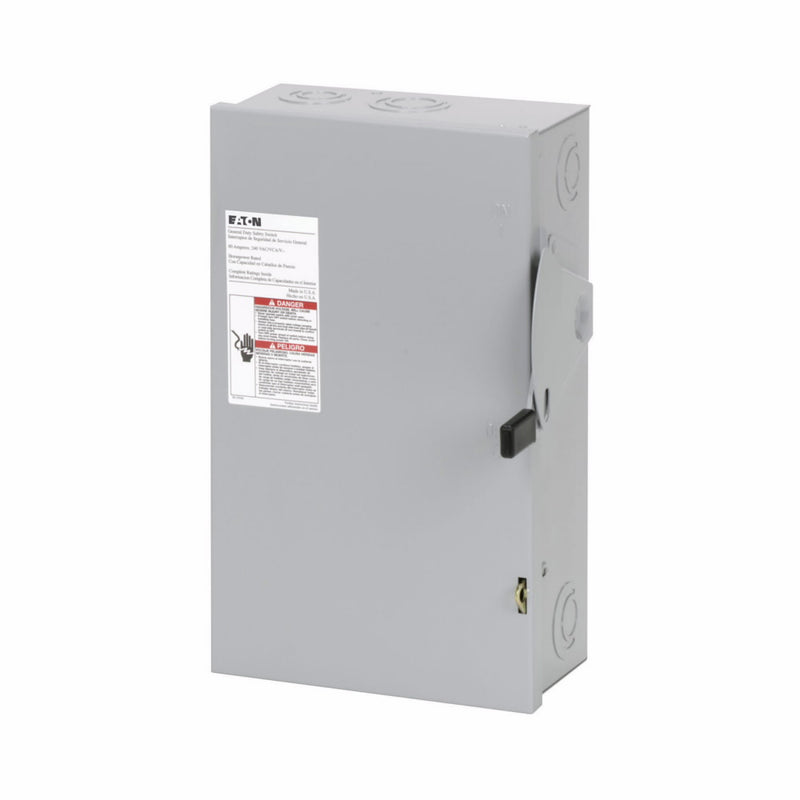

The CUTLER & HAMMER DG322NGB is a general duty cartridge fuse safety switch designed for reliable power distribution control. This 60A, 240V, 3-pole, 4-wire safety switch features a fusible design with neutral and uses Class H cartridge fuses. It has a NEMA 1 painted steel enclosure suitable for general indoor use. The switch supports 7.5 to 15 Hp motor loads and provides robust protection with a single throw mechanism.

• Fusible switches are 100% load break and 100% load make rated
• Visible double-break quickmake, quick break rotary blade mechanism
• Mechanically interlocked cover to prevent easy access when the switch is in the ON position

Product Highlights

The Cutler Hammer DG322NGB safety switch is suitable for light-duty motor circuits and service entrance applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DG322NGB
• Country of Origin: United States

Technical Specifications

• SKU: DG322NGB
• Product Name: Eaton general duty cartridge fuse safety switch
• Catalog Number: DG322NGB
• UPC: 782113144283
• Product Length/Depth: 7.38 in
• Product Height: 14.19 in
• Product Width: 8.69 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: Maximum hp ratings apply only when dual element fuses are used
• Product Type: Cartridge fuse safety switch
• Enclosure: NEMA 1
• Enclosure material: Painted steel
• Fuse configuration: Fusible with neutral
• Number of poles: 3
• Number of wires: 4
• Type: General duty, cartridge fused
• Amperage Rating: 60A
• Fuse class provision: Class H fuses
• Voltage rating: 240V
• Product Category: General duty safety switch
• Part Number: DG322NGB
• Manufacturer: Eaton
• Brand: Eaton
• Category: Switch
• Item Subcategory: Disconnect
• Family: DG Series
• Voltage: 240 AC
• Amperage: 60
• Phase: 3
• Poles: 3
• AIC rating: 100kA@240V
• Fuse Class: R
• Configuration: Single
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Compatible Frames: SEPA
• Certification: NEMA KS-1, UL98
• Series: Series DG
• Power Rating: 3 - 10 hp at 1 Phase, 7.5 - 15 hp at 3 Phase
• Short Circuit Rating: 100 kA RMS
• Contact Form: 3PST
• Mounting Type: Surface/Panel
• Material: Steel
• Finish: Painted
• Product Series: DG
• Family Series: Eaton Safety Switches, DG Series
• Description: Eaton General duty cartridge fuse safety switch, 60 A, NEMA 1, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
• Switch Type: General Duty
• Current Rating: 60 A
• Fusible: Yes
• Fuse Type: H, R
• Neutral: Yes
• Composition: Metallic
• Approvals: CUL, UL
• Net Weight: 9.6 lbs
• Gross Weight: 9.68 lbs
• Wire: 4
• Ampere Rating (A): 60
• Volts (V): 240
• Enclosure Type: Indoor
• Type of Duty: General Duty
• Disconnect Type: Fusible
• Action: Single Throw
• Solid Neutral: Solid Neutral
• Height (In.): 14.19
• Width (In.): 8.69
• Depth (In.): 4.21
• Standards: UL Listed
