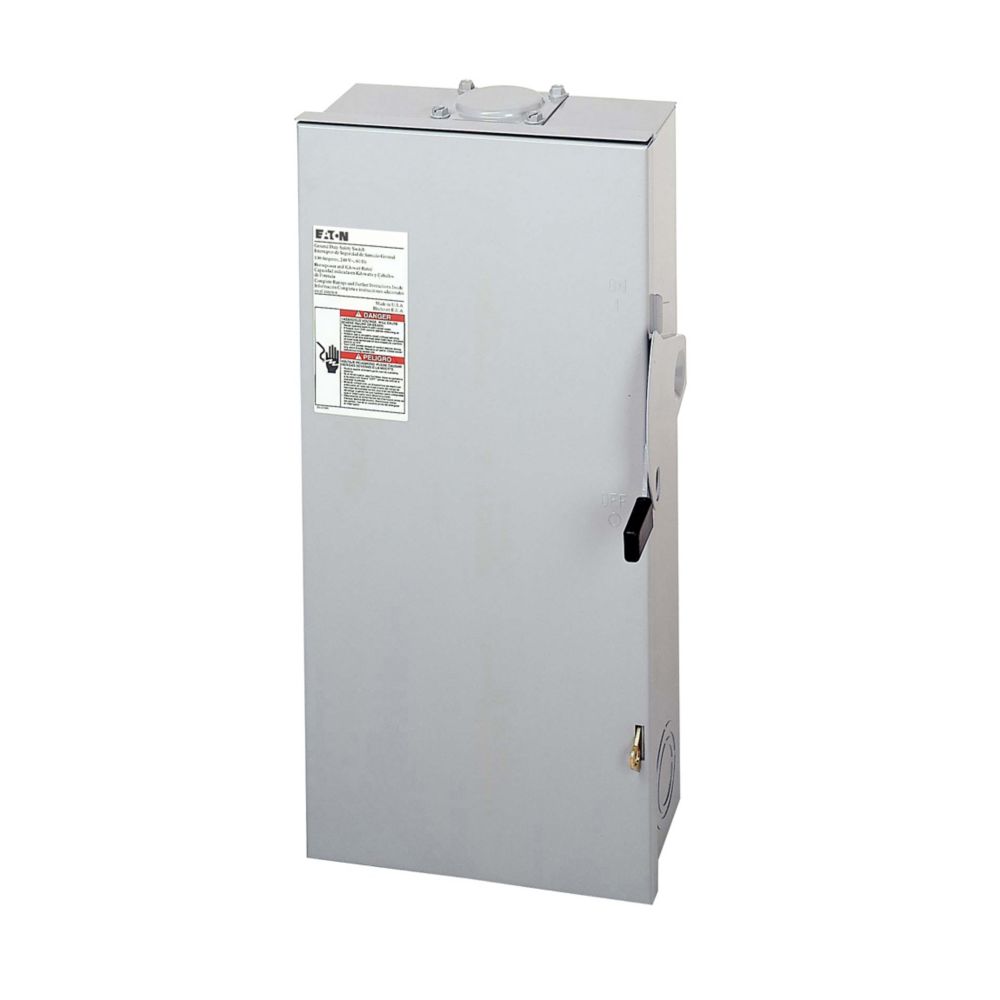

Cutler & Hammer DG223NRB General Duty Cartridge Fuse Safety Switch 100A

Product Description

The CUTLER & HAMMER DG223NRB is a general duty cartridge fuse safety switch. This two-pole, three-wire safety switch is rated for 100 A and 240 V. It features a NEMA 3R enclosure constructed of painted galvanized steel and is suitable for light duty motor circuits and service entrance.

• Fusible with neutral
• NEMA 3R enclosure for outdoor use
• Uses Class H fuses

Product Highlights

The Cutler-Hammer DG223NRB safety switch provides a reliable disconnect for lighting, air conditioning, and appliance circuits.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DG223NRB
• Country of Origin: United States

Technical Specifications

• Amperage: 100 A
• Voltage: 240 V
• Enclosure: NEMA 3R
• Fuse Type: Class H fuses
• Poles: Two-pole
• Wires: Three-wire
• Type: General duty safety switch
• Material: Painted galvanized steel
• Features: Fusible with neutral
• Product Length/Depth: 7.38 in
• Product Height: 19.25 in
• Product Width: 9.13 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
• Product Type: Cartridge fuse safety switch
• Enclosure material: Painted galvanized steel
• Fuse configuration: Fusible with neutral
• Number of poles: 2
• Number of wires: 3
• Amperage Rating: 100A
• Fuse class provision: Class H fuses
• Voltage rating: 240V
• Product Category: General duty safety switch
• Series: Series DG
• Power Rating: 15 hp at 1 Phase, 25 - 60 hp at 3 Phase
• Short Circuit Rating: 100 kA RMS
• Mounting Type: Surface
• Finish: Painted
• Application: For Residential, Commercial and Light-Duty Motor Circuits and Service Entrance
• Standard & Approvals: NEMA KS-1, UL File No. E5239, UL 98 Listed
• Duty Rating: General Duty
• Disconnect Type: Fusible (Cartridge)
• Wire Configuration: 3-Wire (Solid Neutral Included)
• AIC rating: 100kA@240V
• Fuse Class: R
• Configuration: Single
• Switch Style: Fusible
• Nema Rating: NEMA 3R
• Phase: 1
