Cutler & Hammer DG222URB Safety Switch Nonfusible 60A

Product Description

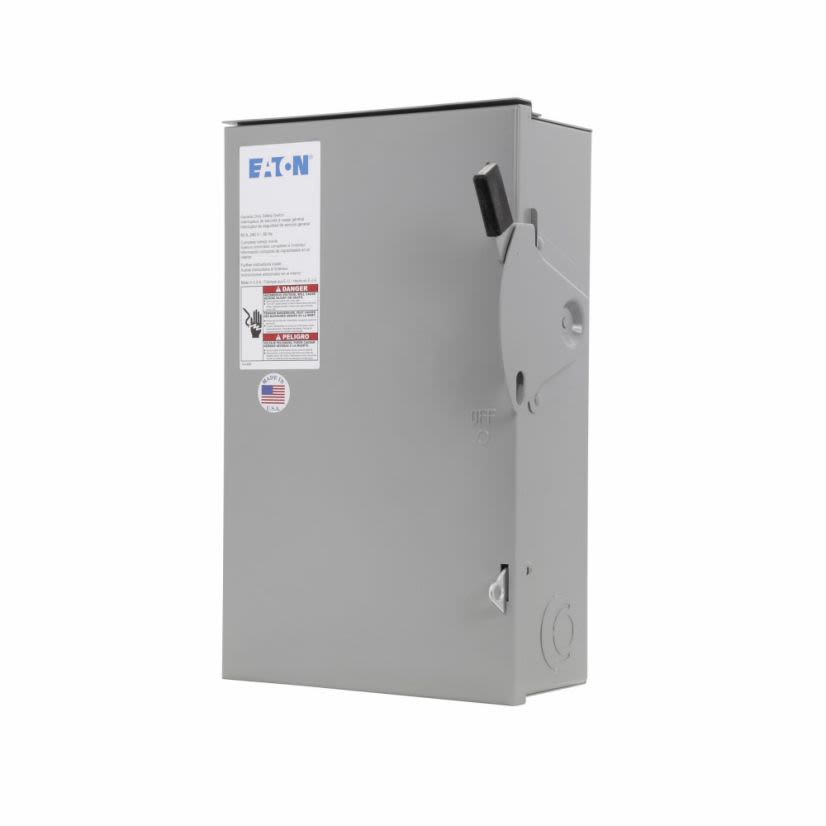

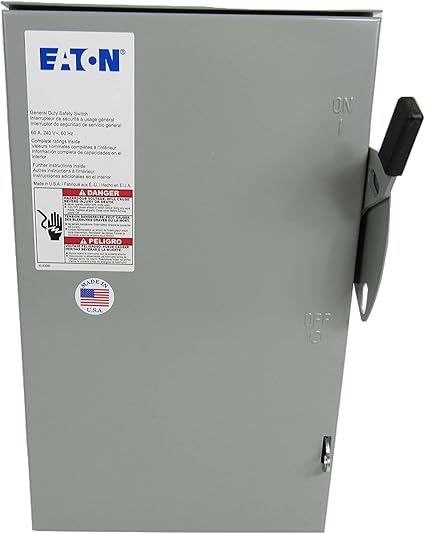

The CUTLER & HAMMER DG222URB is a 2-pole, 60A safety switch designed for opening or closing electrical circuits. This non-fusible switch is suitable for light-duty motor circuits and service entrance applications. It features a NEMA 3R rainproof enclosure, making it suitable for outdoor use. The switch is UL listed and provides a reliable disconnect solution.

• Non-fusible safety switch
• Rated at 240 VAC and 60 amps
• NEMA 3R enclosure for outdoor use

Product Highlights

The CUTLER & HAMMER DG222URB safety switch offers a compact, easy-to-install solution for disconnecting power in residential, commercial, and light industrial applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DG222URB
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton general duty non-fusible safety switch
• Catalog Number: DG222URB
• UPC: 782113144238
• Product Length/Depth: 7.38 in
• Product Height: 14.38 in
• Product Width: 8.69 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed, Build America, Buy America (BABA) Act
• Catalog Notes: WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
• Product Type: Non-fusible safety switch
• Enclosure: NEMA 3R
• Enclosure material: Painted galvanized steel
• Fuse configuration: Non-fusible
• Number of Poles: 2
• Number of Wires: 3
• Type: General Duty, Non-Fusible
• Amperage Rating: 60A
• Voltage Rating: 240 VAC
• Product Category: General duty safety switch
• Mounting Type: Surface
• Included Components: CHDG222URB
• Contact Form: DPST
• Material: Galvanized Steel
• Finish: Painted
• Standard/Approvals: UL E5239, UL 98
• Application: Commercial, Light Duty Motor Circuits, Residential and Service Entrance
• Series: Series DG
• Power Rating: 10 hp at 1 Phase
• Duty Rating: General Duty
