Cutler & Hammer DG222UGB General Duty Non-Fusible Safety Switch 60 A

Product Description

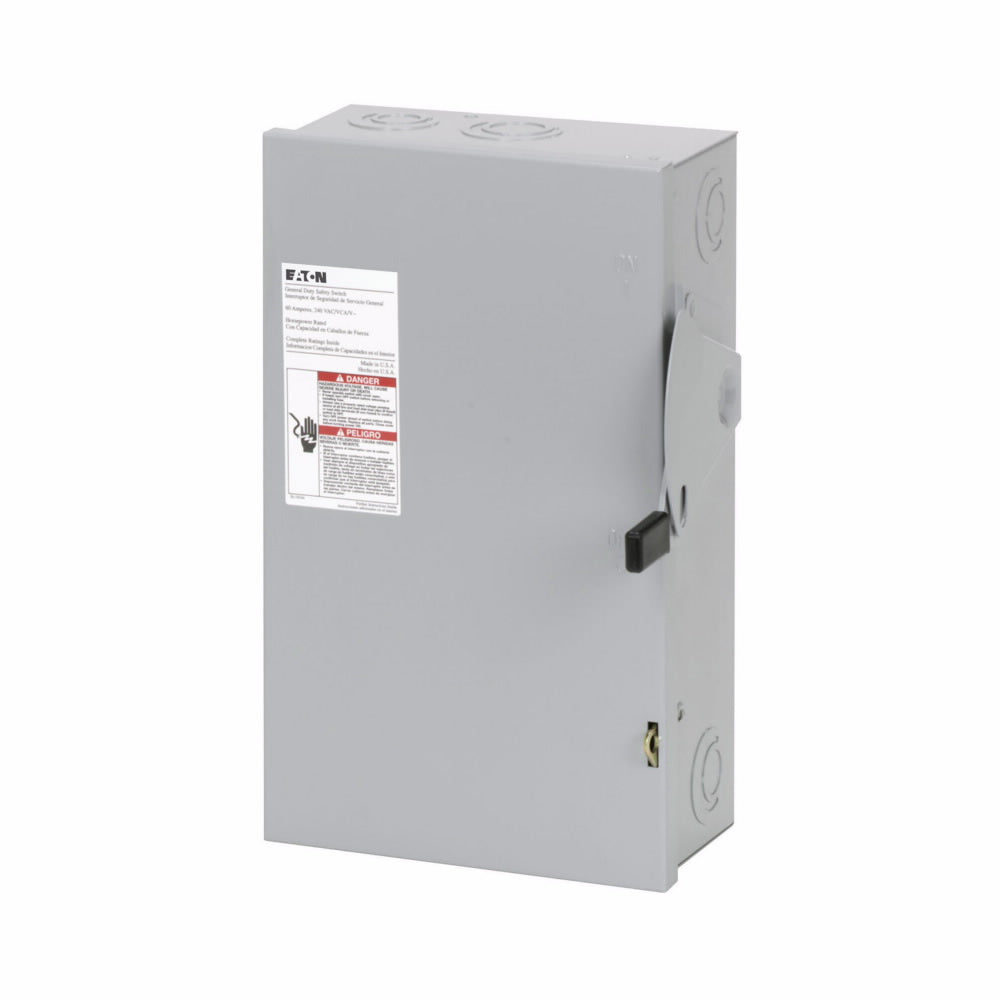

The CUTLER & HAMMER DG222UGB is a general duty non-fusible safety switch, single-throw, rated at 60 A and 240 V. This two-pole, two-wire switch is designed for indoor use with a NEMA 1 enclosure made of painted steel. It provides a reliable means to manually connect or disconnect the load from the power source.

• Non-fusible safety switch
• Suitable for light-duty motor circuits and service entrance applications
• Meets UL 98 for Enclosed Switches and NEMA Std. KS-1

Product Highlights

This general duty safety switch is ideal for residential and commercial applications, providing a safe and reliable way to disconnect power.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DG222UGB
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton general duty non-fusible safety switch
• Catalog Number: DG222UGB
• UPC: 782114731130
• Product Length/Depth: 7.38 in
• Product Height: 14.19 in
• Product Width: 8.69 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
• Product Type: Non-fusible safety switch
• Enclosure: NEMA 1
• Enclosure material: Painted steel
• Fuse configuration: Non-fusible
• Number of poles: Two-pole
• Number of wires: 2
• Type: Non-fusible, single-throw
• Amperage Rating: 60A
• Voltage rating: 240V
• Product Category: General duty safety switch
• Ampere Rating (A): 60
• Volts (V): 240
• Enclosure Type: Indoor
• Type of Duty: General Duty
• Disconnect Type: Non-Fusible
• Action: Single Throw
• Standards: UL Listed
• Model: DG222UGB
• Brand: Cutler-Hammer
• MPN: DG222UGB
• Country of Origin: United States
• Manufacturer Part Number: DG222UGB
• Manufacturer: Eaton
• Product Series: DG
• Family Series: Eaton Safety Switches, DG Series
• Description: Eaton General duty non-fusible safety switch, single-throw, 60 A, NEMA 1, Indoor, Painted steel, Two-pole, Two-wire, 240 V
• Switch Type: General Duty
• Voltage: 240 Volt
• Current Rating: 60 A
• Fusible: No
• Neutral: No
• Composition: Metallic
• NEMA Rating: NEMA 1
• Approvals: CUL, UL
• Net Weight: 9 lbs
• Gross Weight: 9 lbs
• Amperage: 60 Amp
• Poles: 2
• MFR #: DG222UGB
• Zoro #: G011897238
• UPC #: 78211473113
• Height: 14.19 in
• Depth: 7.38 in
• Width: 8.69 in
• Item: Safety Switch
• Protection Method: Nonfusible
• Contact Form: 2PST
• Phase: Single
• Environment: Indoor
• HP: 10 HP @ 240 V
• Housing Material: Steel
• Material of Construction: Steel
• Series: DG
• Number Of Wires: 2
• Number Of Poles: 2
