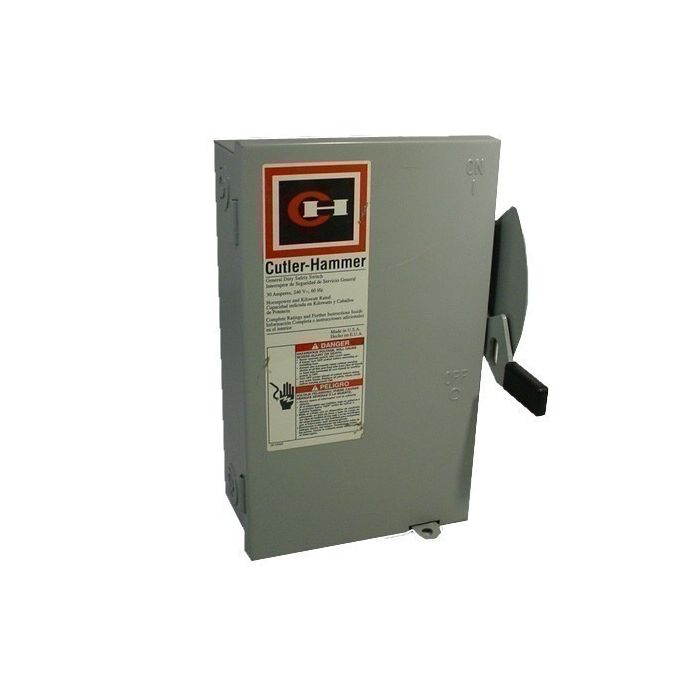

Cutler & Hammer DG222NGB Safety Switch 60A 240V

Brand: CUTLER & HAMMER
SKU: DG222NGB
Availability: In Stock

Ships same day if ordered by 12 pm
$57.63
$57.63
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CUTLER & HAMMER DG222NGB is a safety switch designed for manually connecting or disconnecting loads from their power source. This general-duty cartridge fuse safety switch is rated for 60A and 240V, and is suitable for light-duty motor circuits and service entrances.

  • Fusible with neutral
  • Two-pole, three-wire configuration
  • NEMA 1 enclosure made of painted steel

Product Highlights

This Cutler Hammer safety switch provides a reliable solution for residential and commercial applications requiring a disconnect with overcurrent protection.

Product Information

Standard Information

  • Brand: CUTLER & HAMMER
  • Manufacturer Part Number: DG222NGB
  • Country of Origin: China
Technical Specifications
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG222NGB
UPC
782113144214
Product Length/Depth
7.38 in
Product Height
14.19 in
Product Width
8.69 in
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
Product Type
Cartridge fuse safety switch
Enclosure
Steel
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number of poles
Two-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
60A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Amps
60
Volts AC
240
Poles
2
Duty
General
Fuse Type
For Use with 0-30 amp FLNR, TR or FRN-R fuses
Neutral
Yes
NEMA
1
Brand
CUTLER-HAMMER
MPN
DG222NGB
Product Series
DG
Family Series
Eaton Safety Switches, DG Series
Description
Eaton General duty cartridge fuse safety switch, 60 A, NEMA 1, Painted steel, Class H fuses, Fusible with neutral, Two-pole, Three-wire, Category: general duty safety switch, 240 V
Switch Type
General Duty
Voltage
240 V
Current Rating
60 A
Fusible
Yes
Composition
Metallic
NEMA Rating
NEMA 1
Approvals
CUL, UL
Net Weight
9 lbs
Gross Weight
9.5 lbs
Condition
New Open box
Country of Origin
United States
Manufacturer
Eaton
