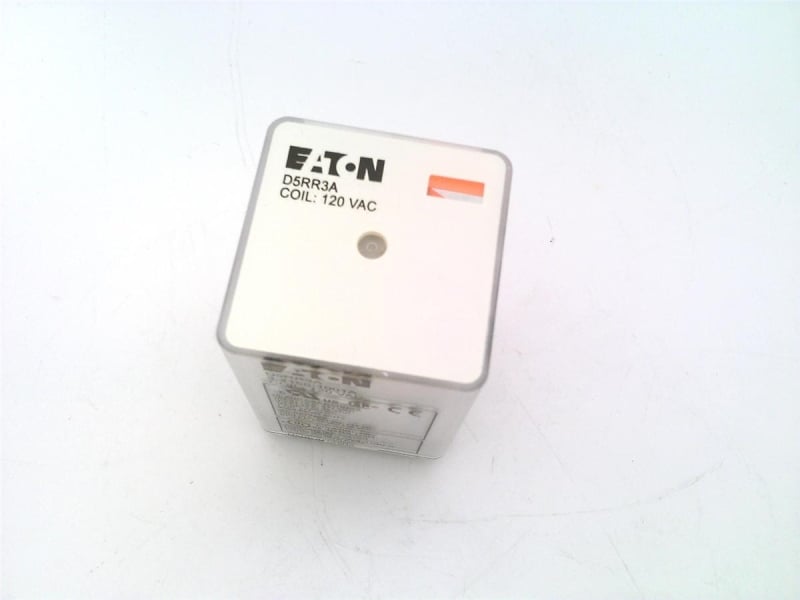

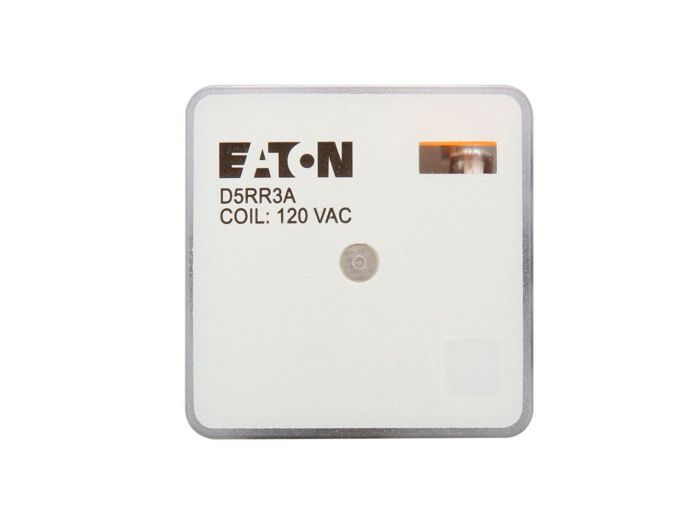

Cutler & Hammer D5RR3A General Purpose Relay 120VAC

Product Description

The CUTLER & HAMMER D5RR3A is a general-purpose relay with a 120V 15A DPDT 11Pin configuration. This Eaton general-purpose relay is an ICE CUBE RELAY with a 3PDT, 10A, and 120VAC coil. It is suitable for various applications requiring reliable switching. The relay is UL Listed.

• Contact Current Rating: 16 A
• Coil Voltage: 120 VAC
• Mounting Type: Socket Mount

Product Highlights

The CUTLER & HAMMER D5RR3A is a reliable general-purpose relay suitable for a variety of applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: D5RR3A
• Country of Origin: United States

Technical Specifications

• Catalog Number: D5RR3A
• UPC: 786685930497
• Product Length/Depth: 1.5 in
• Product Height: 1.5 in
• Product Width: 3 in
• Certifications: UL Listed
• Product Type: General-purpose relay
• Type: General-purpose relay
• Contact Current Rating: 16 A
• Contact Form: 3PDT
• Contact Voltage Rating: 300 VAC
• Control Voltage: 120 V
• Current Rating: 10 A
• Manufacturer Part Number: D5RR3A
• Mounting Type: Socket Mount
• Primary Type: Power Relays
• Relay Type: General Purpose
• Series: D5R Series
• Termination: Blade
• Voltage Rating: 300 V
• Coil Voltage: 120 VAC
• Contacts: 3PDT
• Mounting: Plug In
• Material: Silver Alloy
• Nominal Coil Voltage: 120 VAC
• Approvals: CE, CSA, UL
