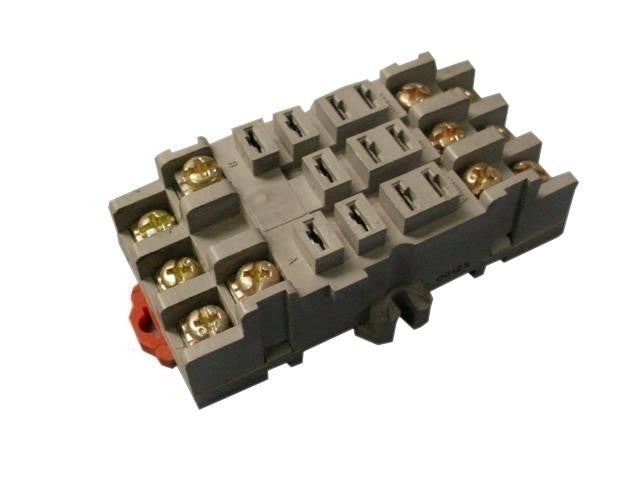

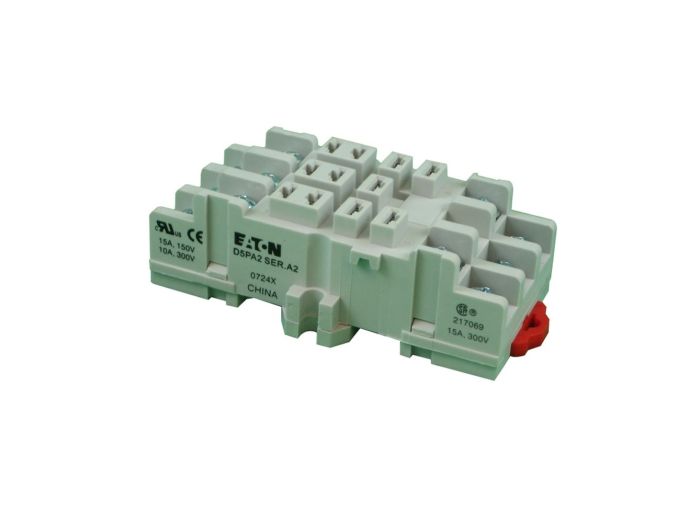

Cutler & Hammer D5PA2 Relay Socket, Screw Terminal, DIN/Panel Mount, D5 Series, 15A, 300V

Product Description

The Cutler & Hammer D5PA2 is a D5 Series relay socket used with D5 series relays and TR timers. It features a 300V nominal voltage and 15A nominal current capacity. Designed for DIN rail or panel mounting, it utilizes screw clamping wire connections.

• For use with D5 Series relays and TR timers
• DIN Rail/Panel Mount
• Screw clamping wire connection

Product Highlights

The Cutler & Hammer D5PA2 relay socket is ideal for use with D5 series relays and TR timers.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: D5PA2
• Country of Origin: United States

Technical Specifications

• Alternate Mfr Part Number: D5PA2-A2
• Brand: Eaton - Cutler Hammer
• For Use With: D5 Series relays and TR timers
• Manufacturer Part Number: D5PA2
• Mounting Type: DIN Rail/Panel Mount
• Primary Type: Relay Sockets
• Series: D5 Series
• Type: DIN Rail Socket
• UPC Code: 782114403853
• Socket Mounting: DIN Rail, Panel
• Socket Terminals: Screw
• No. of Pins: 11Pins
• Current Rating: 15A
• Voltage Rating: 300V
• Product Range: D5 Series
• Amps: 15
• Volts: 300
• Pins: 11
• Manufacturer: Eaton
• Family Series: Eaton Relays
• Coil Voltage: 300 VAC
• Mounting: DIN Rail
• Termination: Screw Terminals
• Approvals: CE, CSA
