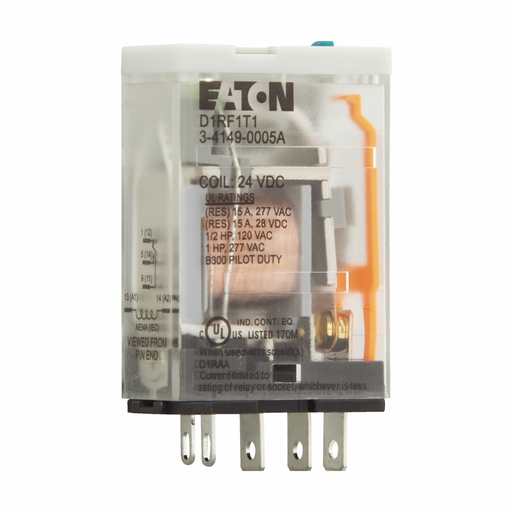

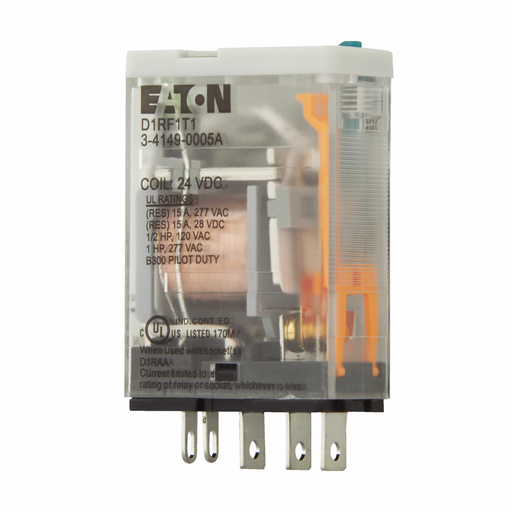

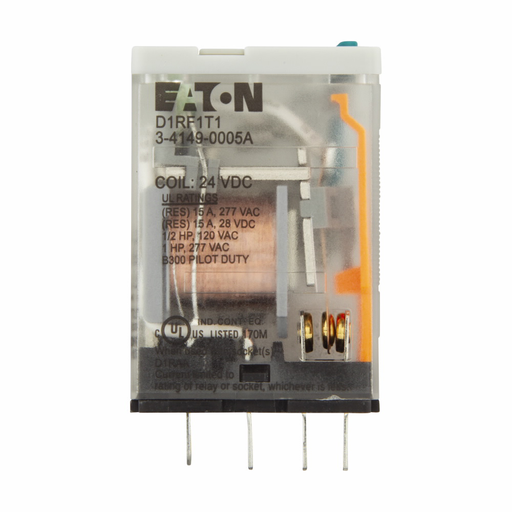

Cutler-Hammer D1RF1T1 Ice Cube Relay 15 Amp 24 VDC Coil SPDT

Product Description

The Cutler-Hammer D1RF1T1 is a reliable ice cube relay with a contact configuration of SPDT. It operates on a 24 VDC coil with a maximum contact rating of fifteen amps. This relay is designed for general-purpose applications and is suitable for various electrical assemblies including panels and OEMs.

• Coil voltage: 24 VDC
• Contact rating: 15 Amps
• Durable silver alloy contact material

Product Highlights

This relay is built to handle multiple operational cycles and is suitable for a range of industrial applications.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Amperage: 20 Amp
• Voltage: 300 Volt
• Operating Cycles: 100000
• Temperature Rating: -40 to 185 degrees C
• Height: 1 Inch
• Length: 2 Inch
• Weight: 0.06 lb
• Dielectric Strength: 2500 VAC Between Coil and Contact, 1500 VAC Between Poles
