Cutler Hammer CL250 Thermal Magnetic Circuit Breaker Type CL 50A 120/240V 3/4 Inch

Product Description

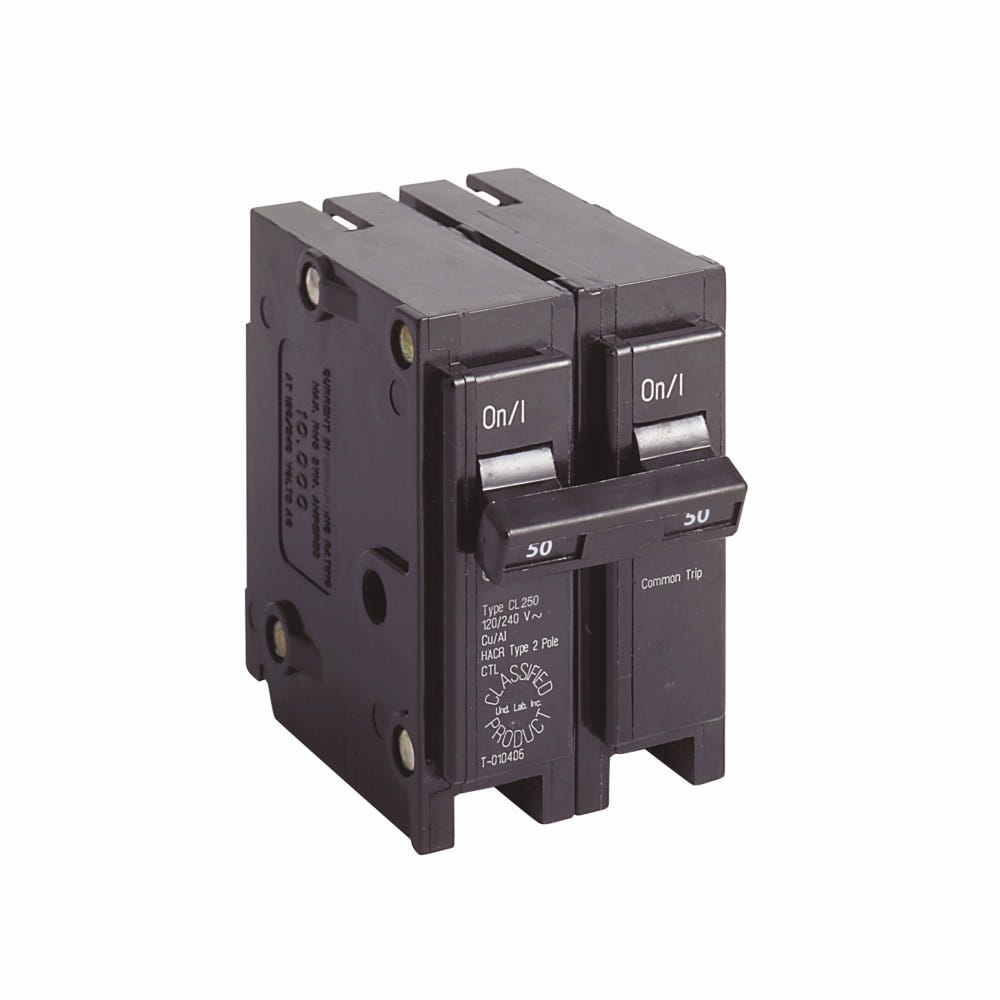

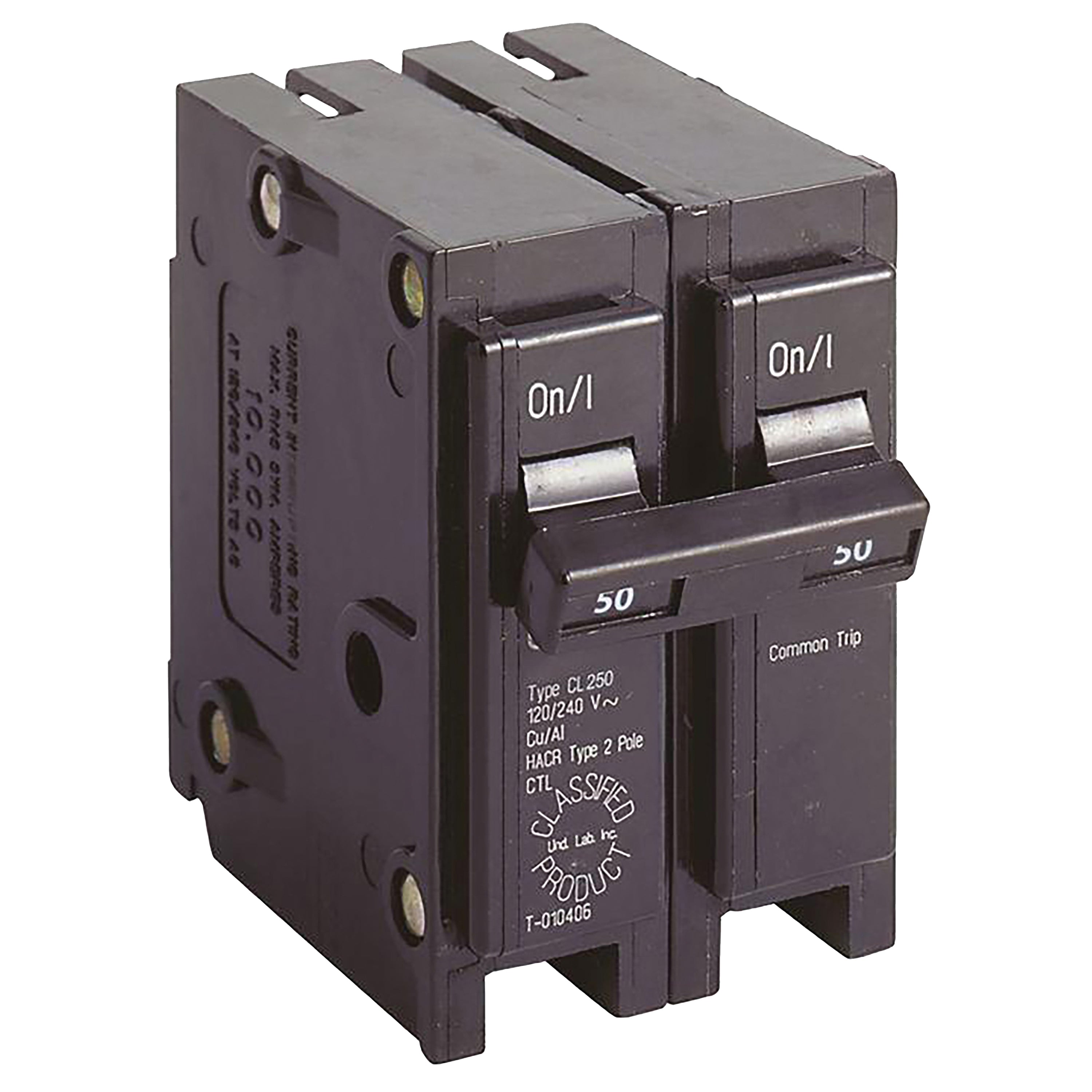

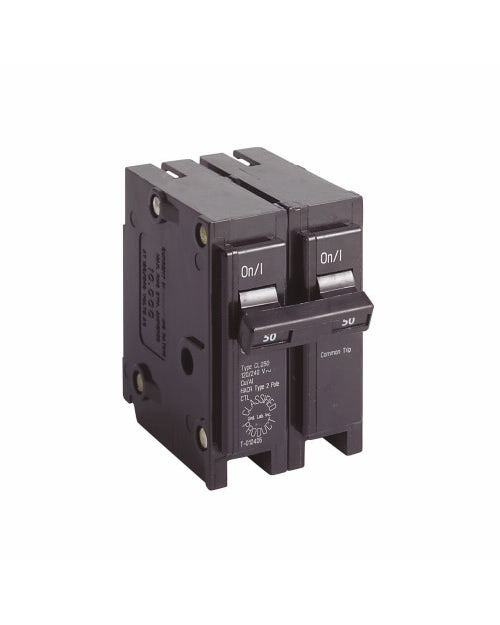

The CUTLER & HAMMER CL250 is a 2-pole standard trip thermal magnetic circuit breaker, Type CL, designed for residential applications. Rated at 120/240 volts and 50 amps, this 3/4 inch breaker provides essential circuit protection. It is specifically engineered for use with Type CH loadcenters, ensuring compatibility and reliable performance in electrical systems.

• 2-pole standard trip thermal magnetic circuit breaker.
• Rated for 120/240 volts and 50 amps.
• Compatible with Type CH loadcenters.

Product Highlights

Provides thermal magnetic protection for residential electrical circuits.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CL250
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: CL250
• Type: Thermal Magnetic Circuit Breaker, Type CL
• Number of Poles: 2
• Amperage: 50 A
• Voltage Rating: 120/240 V
• Size: 3/4 inch
• Compatibility: Type CH loadcenters
• Trip Type: Standard
• Series: Series CL
• Application: Residential
• Interrupt Rating: 10 kA
• Connection Type: Plug-On Clip
• Wire Size: 14 - 4 AWG Aluminum/Copper
• Terminal Type: Lug
• Operating Temperature: 60 - 75 deg C
• Certifications: UL 489
• Number of Throws: 1
• Number of Phases: 1
• Operation Method: On/Off
• Current Type: AC
• Control Style: Switch
• Operating Frequency: 50/60
• Actuator Type: Magnetic, Thermal
