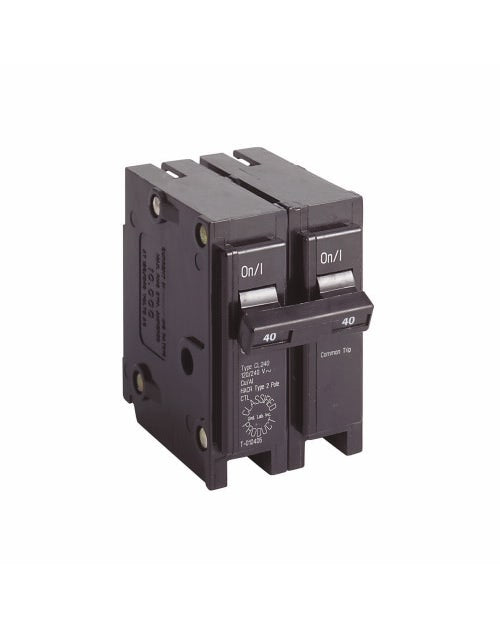

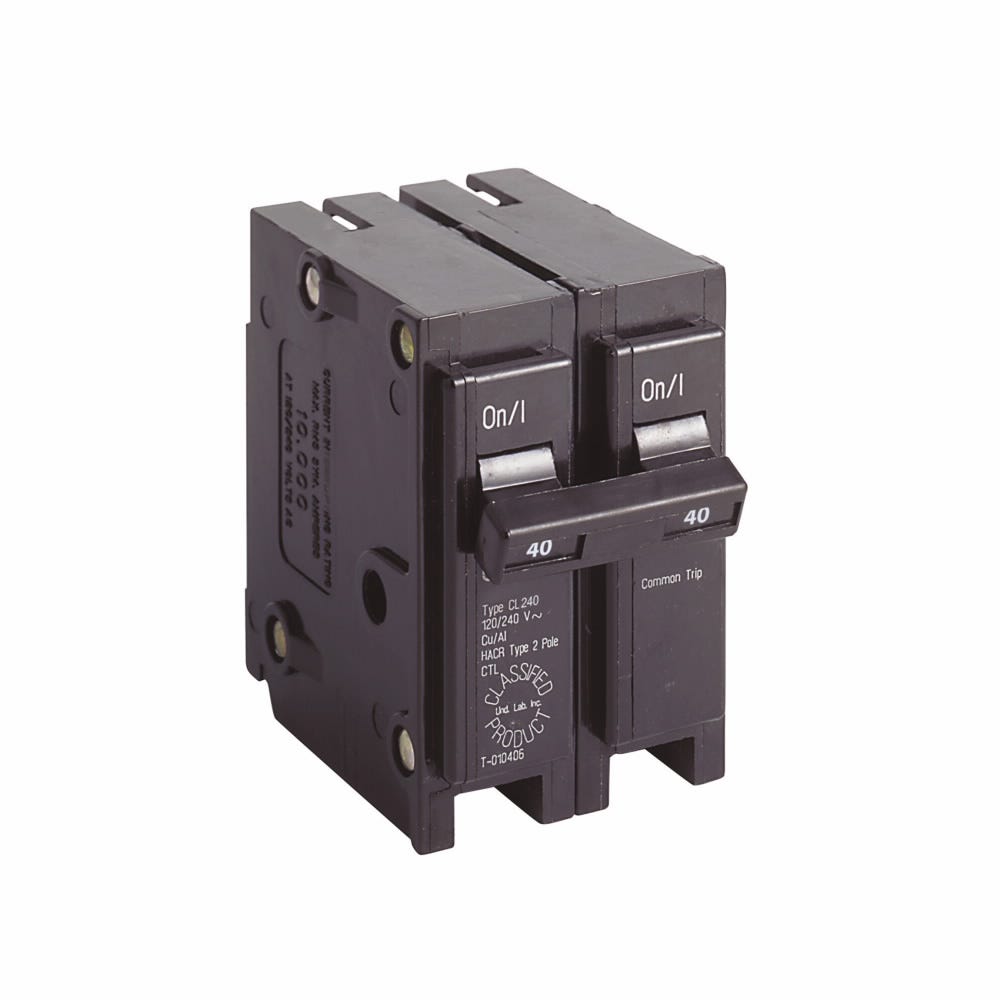

Cutler & Hammer CL240 2-pole 40A 120/240V Circuit Breaker 1-inch Type CL

Product Description

The CUTLER & HAMMER CL240 is an Eaton Classified 1-inch thermal magnetic circuit breaker. This two-pole, 40 Amp unit operates at 120/240V and features a 10 kAIC interrupt rating. Designed as a Type CL 1-inch classified replacement breaker, it is compatible with Type CH loadcenters and accepts 14-4 AWG copper/aluminum wire. It provides common breaker trip protection for residential electrical systems, operating at 50/60 Hz.

• Eaton Classified 1-inch thermal magnetic circuit breaker.
• Two-pole design with a 40 Ampere rating and 10 kAIC interrupt rating.
• Compatible with Type CH loadcenters, accepting 14-4 AWG Cu/Al wire, and UL 489 certified.

Product Highlights

Type CL 1-inch classified replacement breaker, 40A, 2-pole, 120/240V, 10 kAIC, UL 489 Certified.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CL240
• Country of Origin: United States

Technical Specifications

• Breaker Type: Thermal Magnetic
• Replacement Type: CL 1-Inch Classified
• Amperage: 40 A
• Interrupt Rating: 10 kAIC
• Poles: 2
• Voltage Rating: 120/240V
• Trip Type: Common
• Wire Gauge Compatibility: 14-4 AWG Cu/Al
• Compatible Loadcenters: Type CH
• Series: CL
• Application: Residential
• Connection Type: Plug-On Clip
• Terminal Type: Lug
• Operating Temperature: 60-75 deg C
• Operating Frequency: 50/60 Hz
• Number of Phases: 1
• Certifications: UL 489
• Current Type: AC
• Tripping Characteristics: Type C
