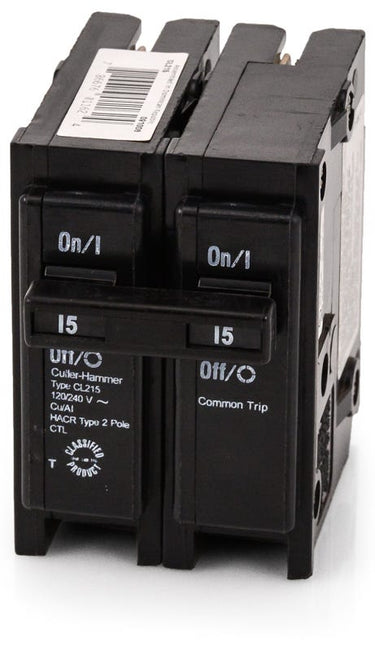

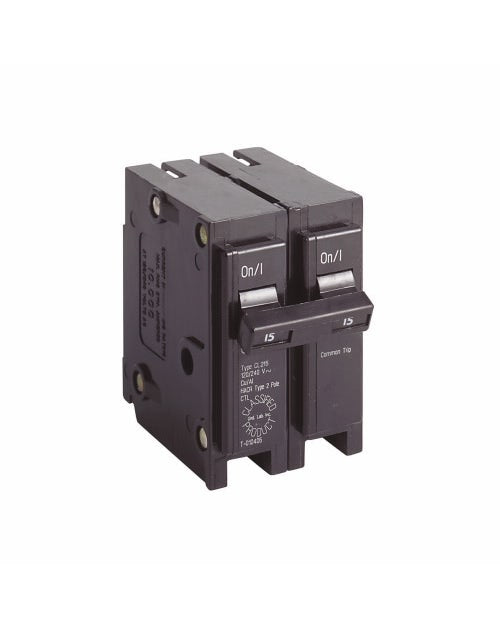

Cutler & Hammer CL215 Type CL 1-inch thermal magnetic circuit breaker 15A 120/240 VAC 2-pole replacement

Product Description

The CUTLER & HAMMER CL215 is a Type CL 1-inch thermal magnetic circuit breaker designed for residential applications. This 2-pole, 15A unit provides 10 kAIC interrupting capacity at 120/240V. It features a common trip mechanism and accommodates #14-4 AWG copper/aluminum wire. This classified replacement breaker is compatible with Type CH loadcenters and is UL listed.

• Classified thermal magnetic circuit breaker with a common trip mechanism.
• 15 Ampere rating and 10 kAIC interrupting capacity at 120/240V.
• Two-pole design compatible with Type CH loadcenters, accommodating #14-4 AWG wire.

Product Highlights

UL listed, HACR rated, and suitable for 240V branch circuits and HVAC equipment.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CL215
• Country of Origin: United States

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: CL215
• SKU: 0170-3328
• Reference ID: CUTLERHAMMERCL215
• Breaker Type: Thermal Magnetic
• Series: CL
• Amperage: 15 A
• Interrupting Capacity: 10 kAIC
• Poles: 2
• Voltage: 120/240V
• Wire Gauge: #14-4 AWG Cu/Al
• Loadcenter Compatibility: Type CH
• Package Quantity: 1
• Trip Type: Common
• ASIN: B00D3Q73TE
• Mounting Type: Plug-On
• Operating Temperature: 60 to 75 deg C
• Certifications: UL 489
• Phase: 1
• Terminal Type: Box Lugs
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• HACR Rating: Yes
• Application: Residential
• Replacement For Load Centers: Crouse-Hinds Type MP, General Electric Type THQ, Siemens Type QP, Murray Type MP, Square D Homeline, Thomas & Betts Type TB
