Cutler & Hammer CHP24L125R CH PON LC, 125A, MLO

Product Description

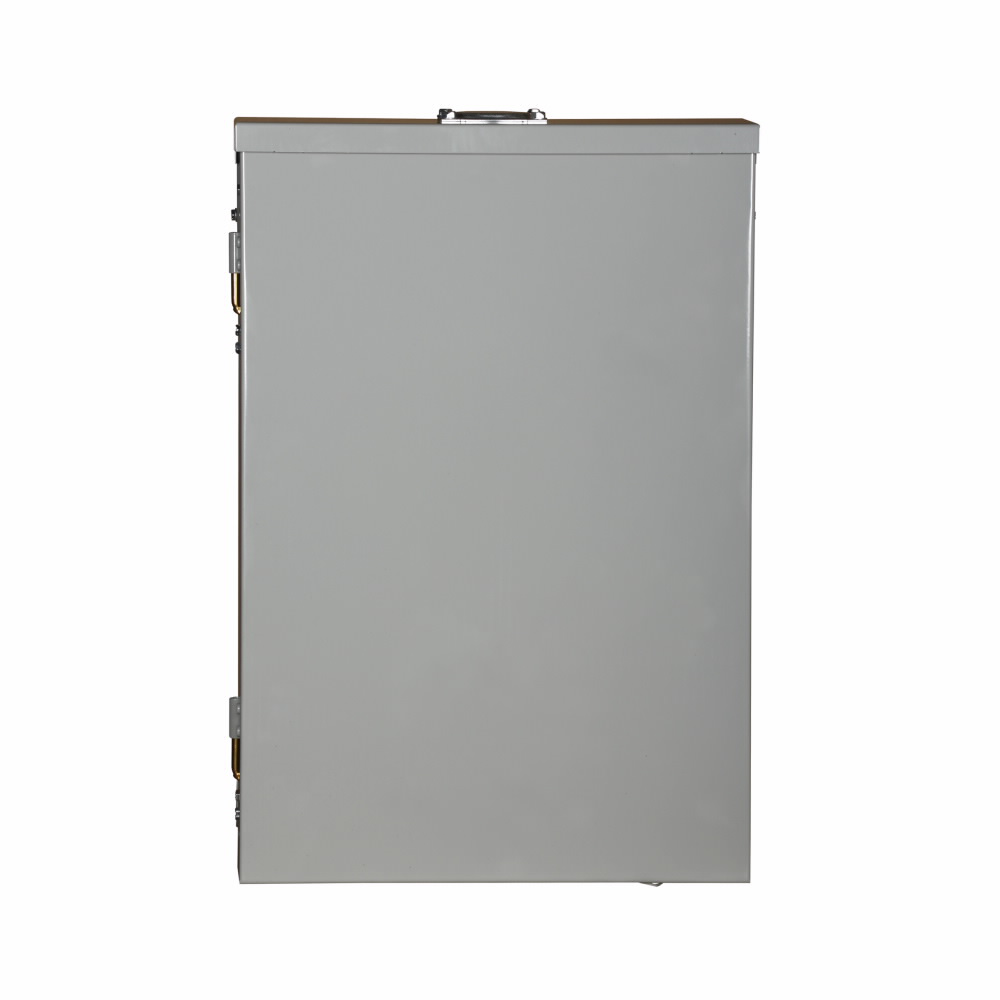

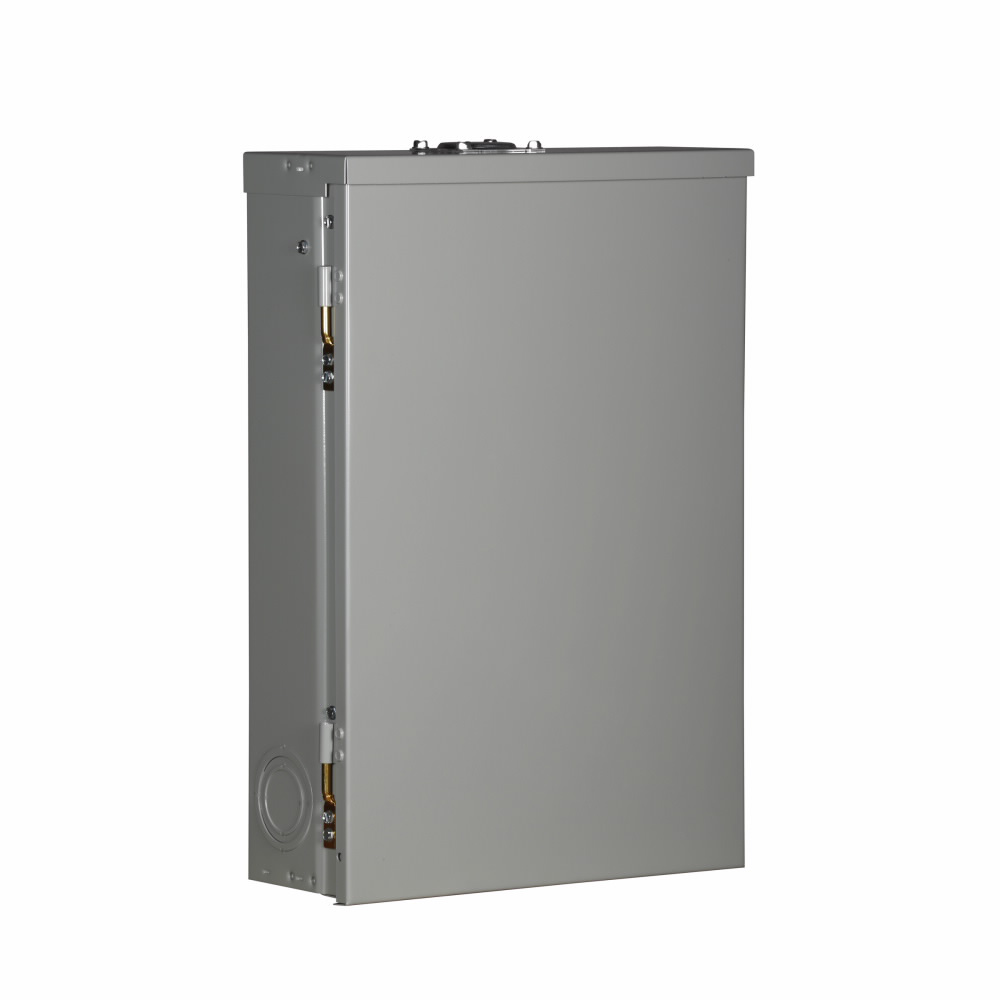

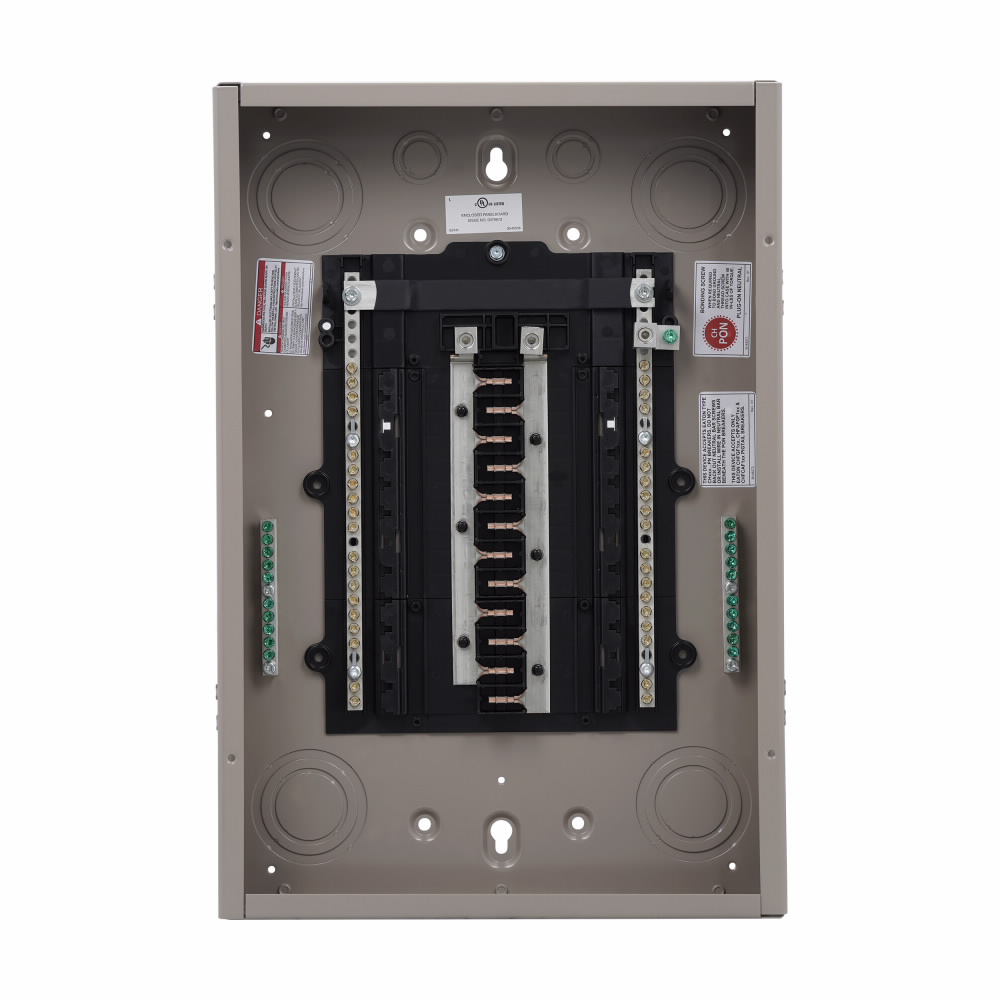

The Cutler & Hammer CHP24L125R CH main lug loadcenter includes a cover and is main lug only. Rated at 125A, it features copper bus material and a NEMA 3R metallic enclosure. Designed for overhead feed type, it has 24 spaces and 48 circuits, and is suitable for single-phase, three-wire systems.

• Main Lug Only loadcenter with included cover.
• Features a copper bus material and a NEMA 3R metallic enclosure.
• Designed for residential buildings and facilities with an overhead feed type.

Product Highlights

125A loadcenter with 24 spaces, 48 circuits, copper bus, and NEMA 3R enclosure for residential applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHP24L125R

Technical Specifications

• Amperage: 125 Amp
• Applications: Residential Bldgs & Facilities
• Bus Material: Copper
• Enclosure: 3R
• Enclosure Material: Metal
• Feed Type: Overhead
• Interrupt Rating: 25 kAIC
• NEMA Size: 3R
• Number of Circuits: 48
• Number of Phases: 1 Phase
• Number of Spaces: 24
• Number of Wires: 3 Wire
• Type: Main Lug Only
