Cutler & Hammer Chp16l125r ch pon ldcntr 125A

Product Description

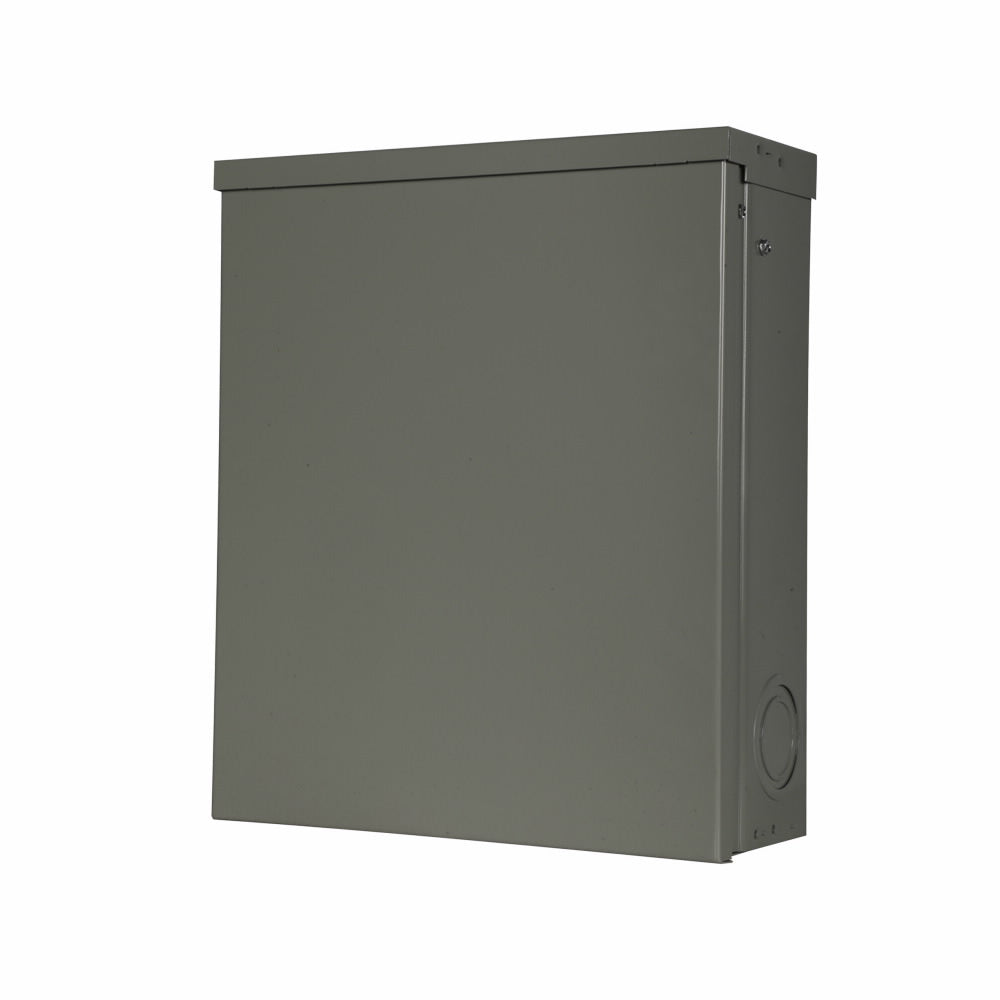

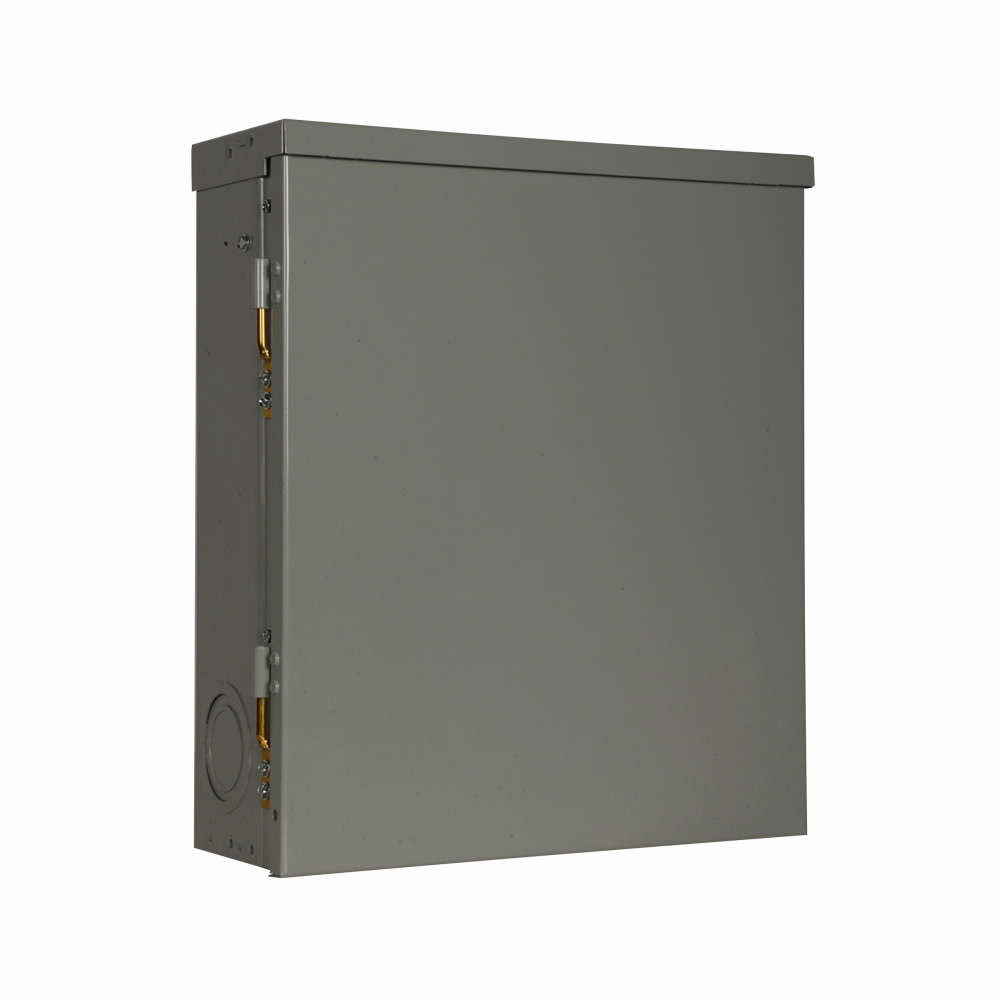

The CUTLER & HAMMER CHP16L125R is an Eaton CH main lug loadcenter with a cover included. Rated at 125A, this single-phase loadcenter features a metallic NEMA 3R enclosure and is designed for overhead feed type. It accommodates three-wire configurations and has 16 spaces and 32 circuits.

• Main Lug Only
• NEMA 3R enclosure
• Suitable for single-phase, three-wire systems

Product Highlights

This loadcenter is ideal for residential buildings and facilities, providing reliable power distribution with its copper bus material and robust metallic enclosure.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHP16L125R

Technical Specifications

• Amperage: 125A
• Type: Main Lug Only
• Enclosure: NEMA 3R
• Material: Metallic
• Wiring Configuration: Three-wire
• Phase: Single-phase
• Bus Material: Copper
• Interrupt Rating: 25 kAIC
• Number of Circuits: 32
• Number of Spaces: 16
• Feed Type: Overhead
• Enclosure Material: Metal
