Cutler & Hammer CHP12L125X0 CH PON Loadcenter 125A X0

Product Description

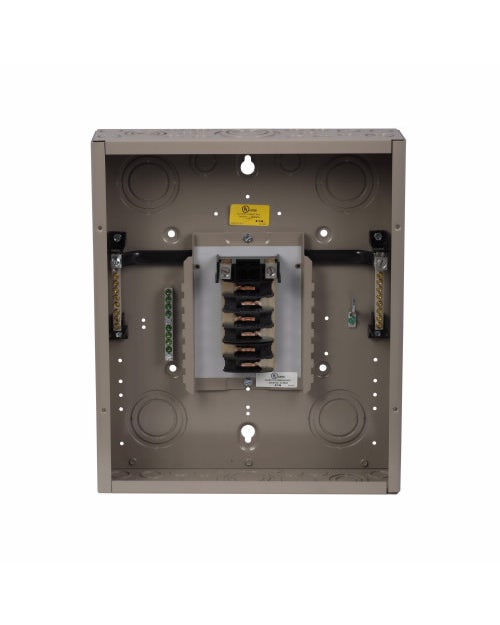

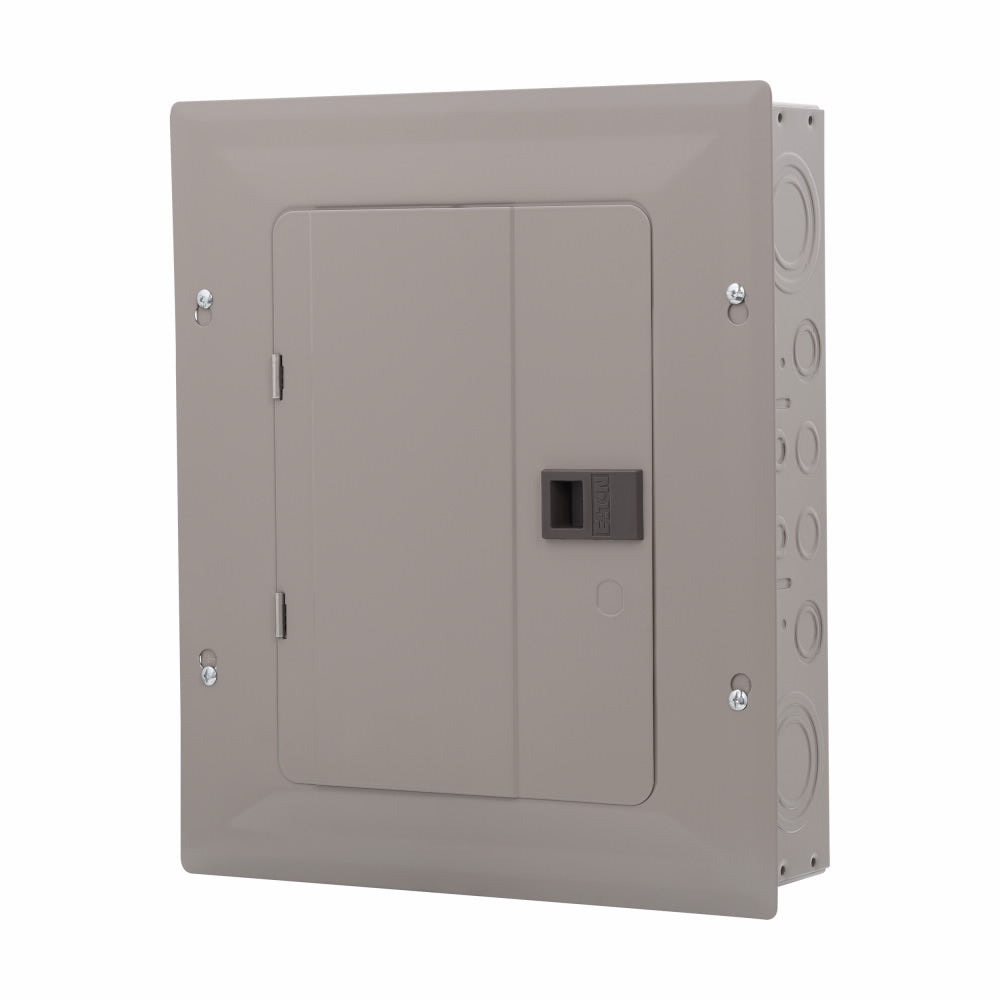

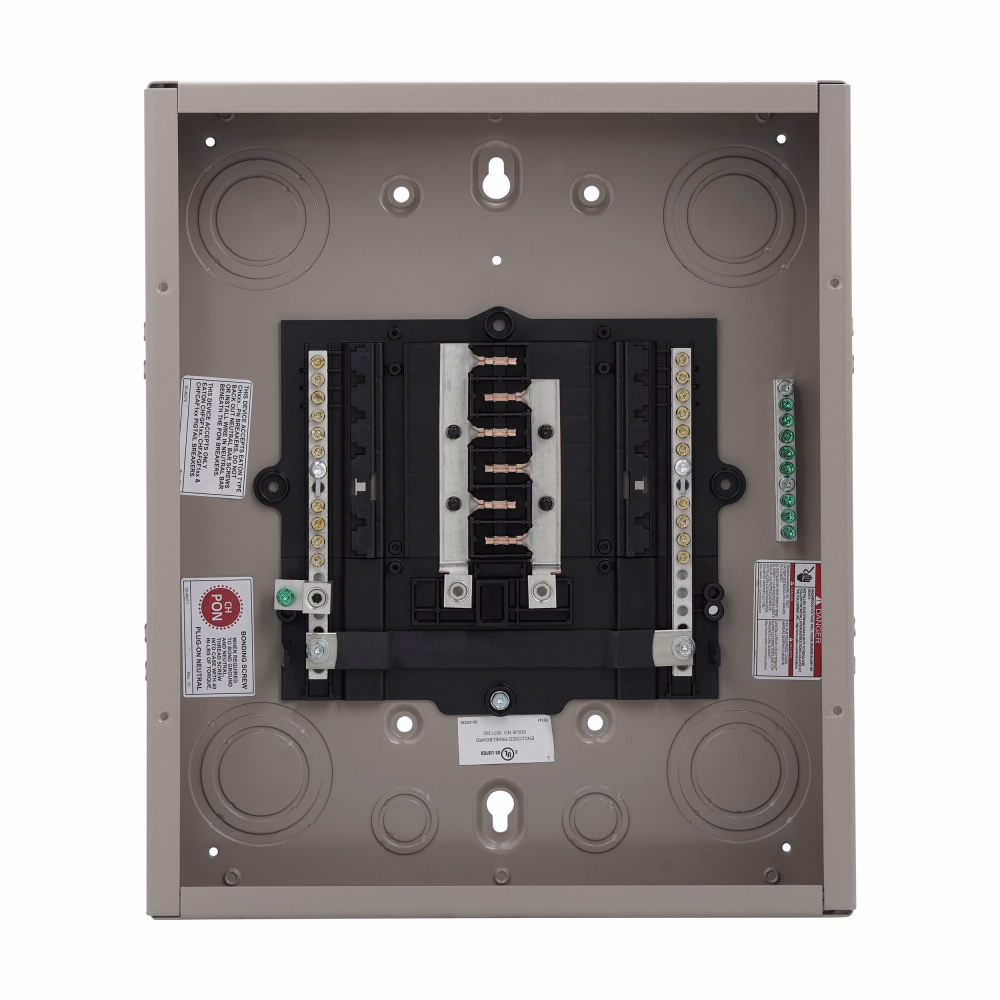

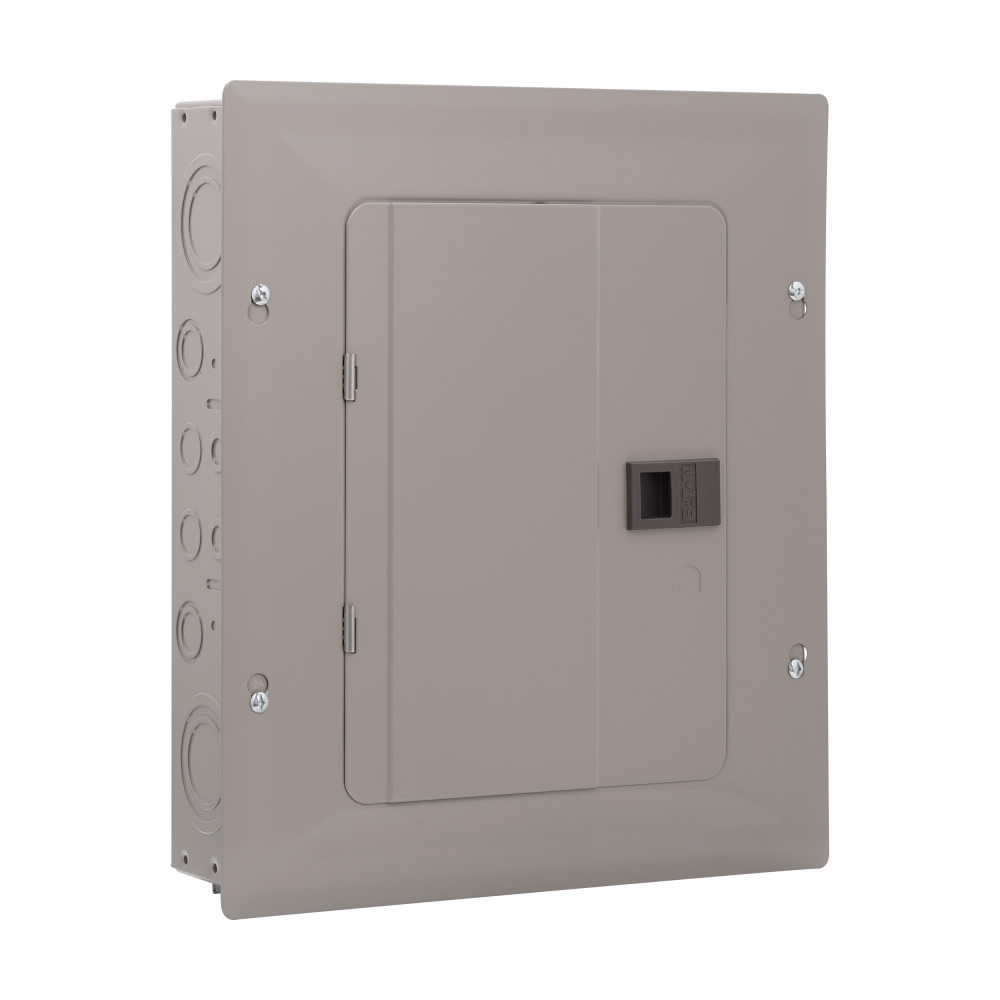

The CUTLER & HAMMER CHP12L125X0 is a CH main lug loadcenter with a PON design. Rated at 125A and designed for NEMA 1 indoor environments, this single-phase loadcenter supports 120/240V applications. It features a 25 kAIC interrupt rating and accommodates #6-2/0 AWG wiring. The unit includes 24 circuits and 12 spaces.

• Rated for 125A and 120/240V single-phase systems
• Features 24 circuits and 12 spaces
• NEMA 1 indoor enclosure made of steel

Product Highlights

This Cutler & Hammer loadcenter is ideal for electrical assemblies and panels, providing reliable power distribution in residential and light commercial settings.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHP12L125X0

Technical Specifications

• Amperage: 125 A
• Material: Copper, Steel
• Voltage: 120/240 V
• Phase: Single-phase
• NEMA Rating: NEMA 1 indoor
• kAIC: 25 kAIC
• Product Length/Depth: 16.75 in
• Product Height: 3.88 in
• Product Width: 14.31 in
• Certifications: UL 67
• Product Type: Main lug loadcenter
• Bus material: Copper

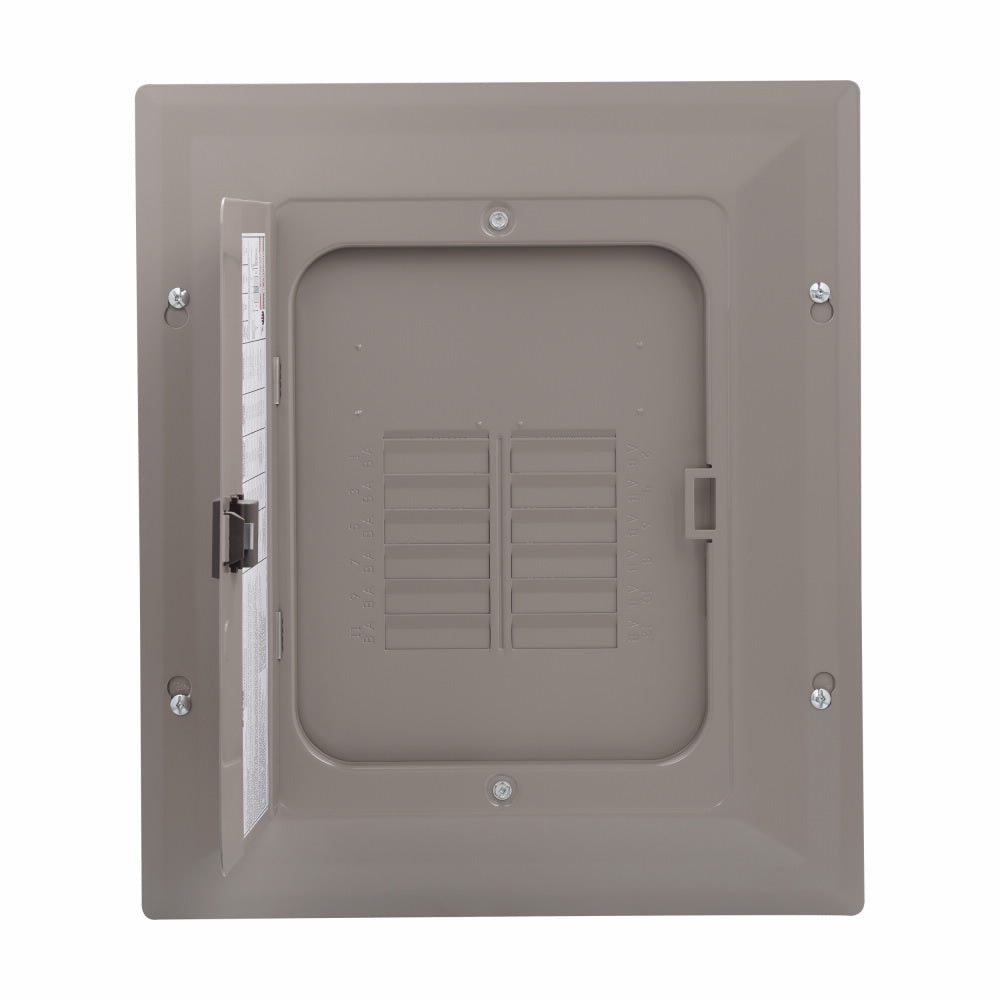

• Cover: Cover included
• Number of circuits: 24
• Number of spaces: 12
• Box size: X0
• Enclosure: NEMA 1
• Interrupt rating: 25 kAIC
• Special features: PON
• Enclosure material: Steel
• Type: CH
• Number of wires: 3
• Bus Rating: 125 A
• Cover Type: Size X0
• Mounting Type: Combination
