Product Description

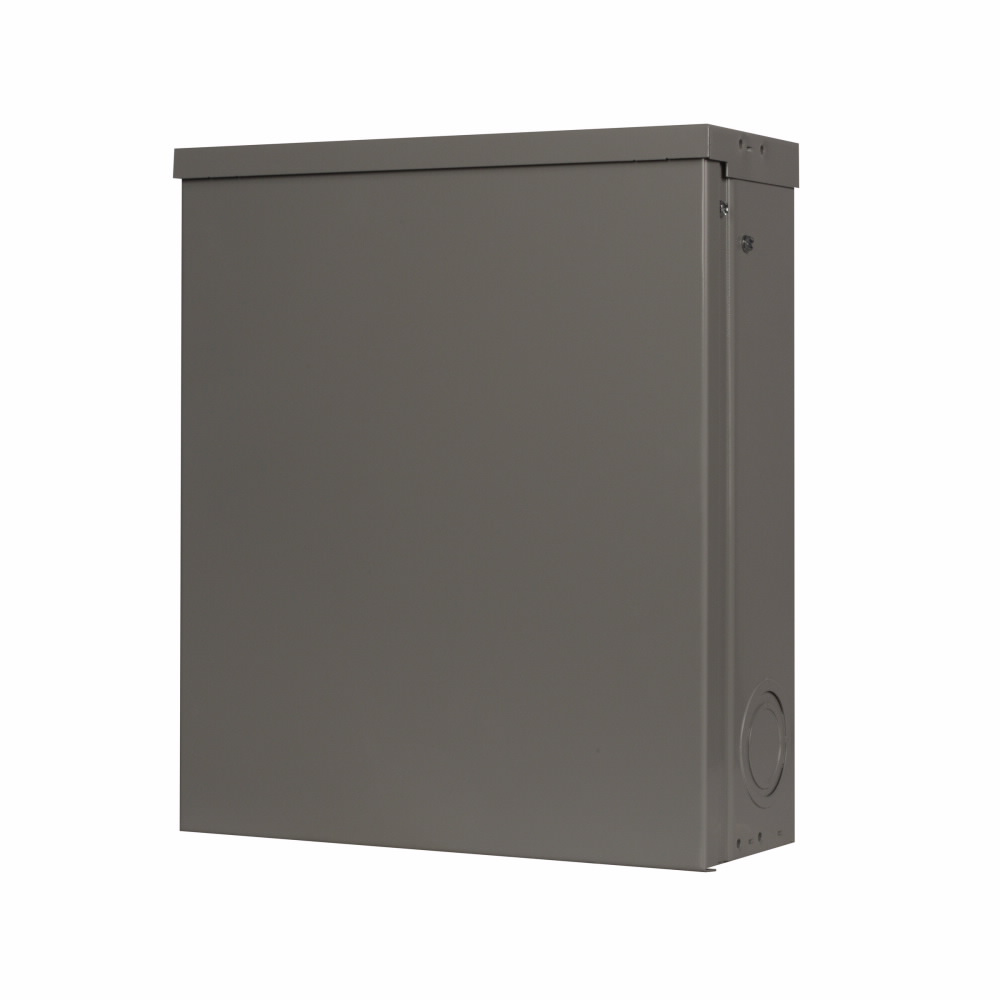

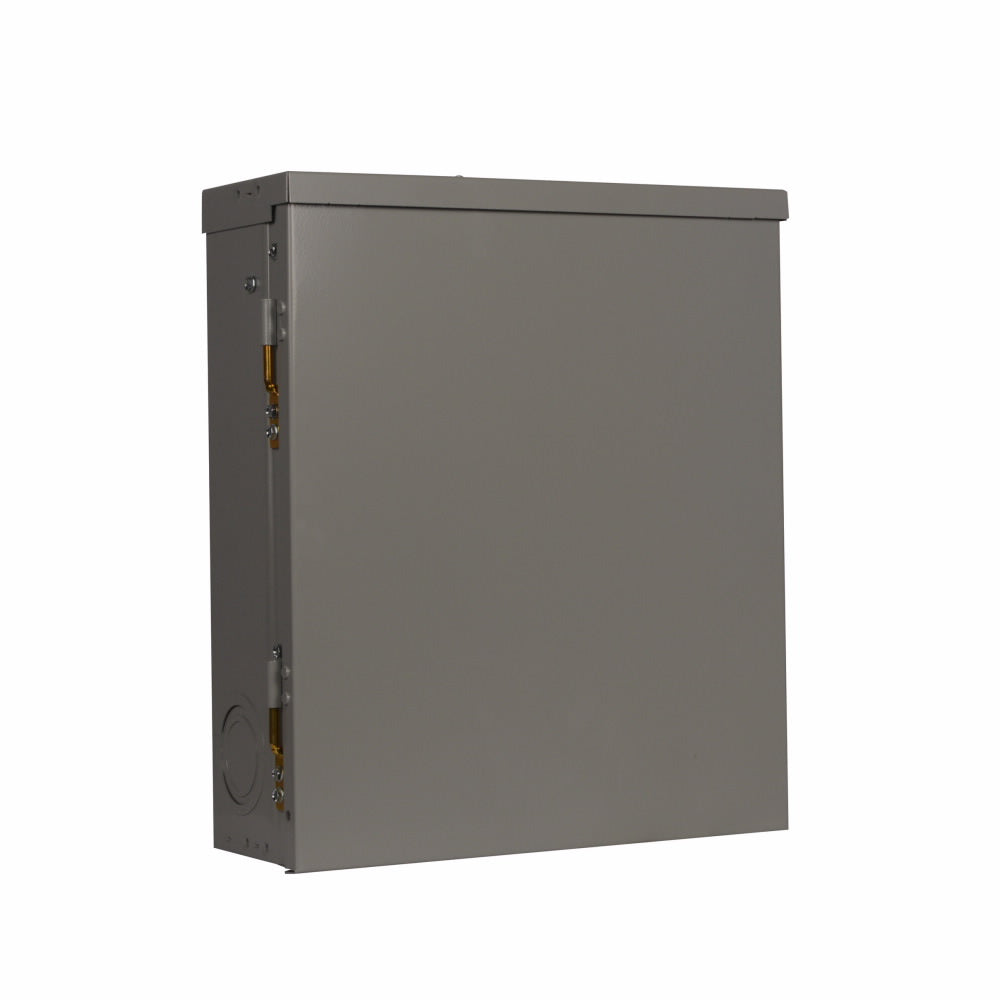

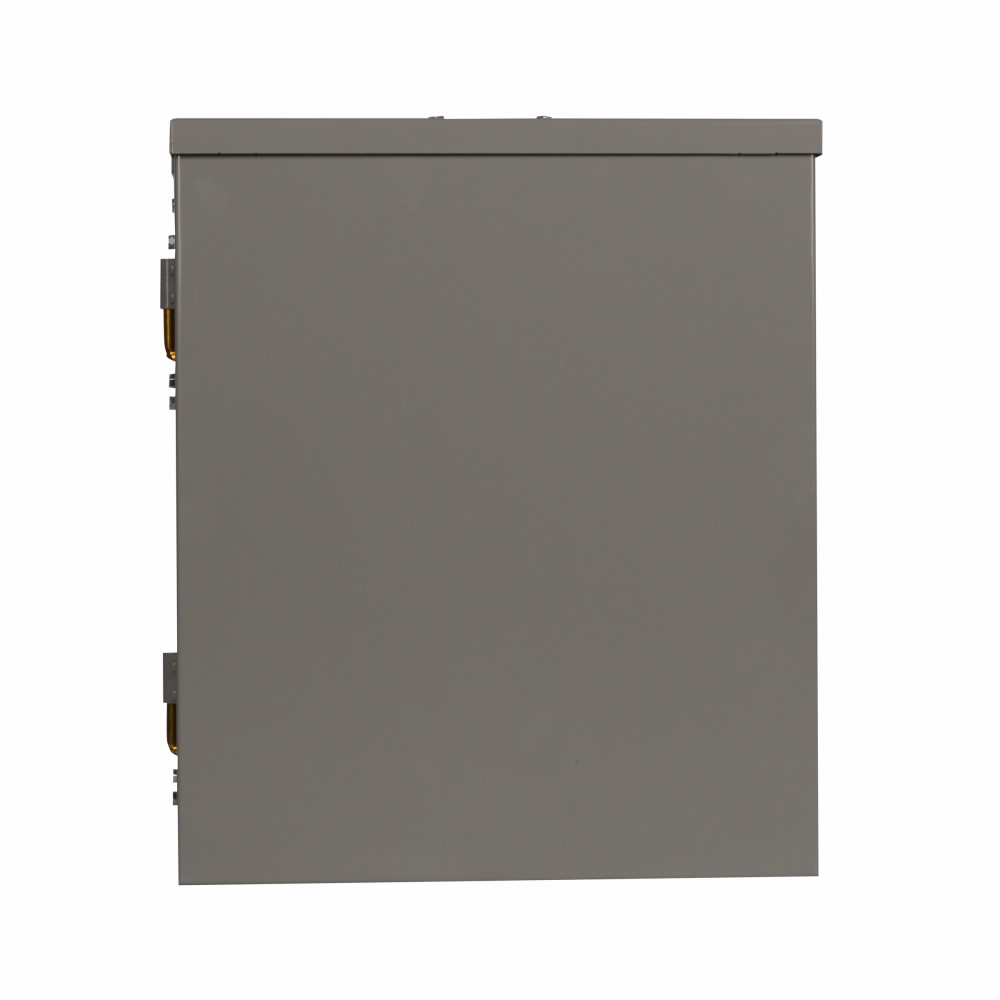

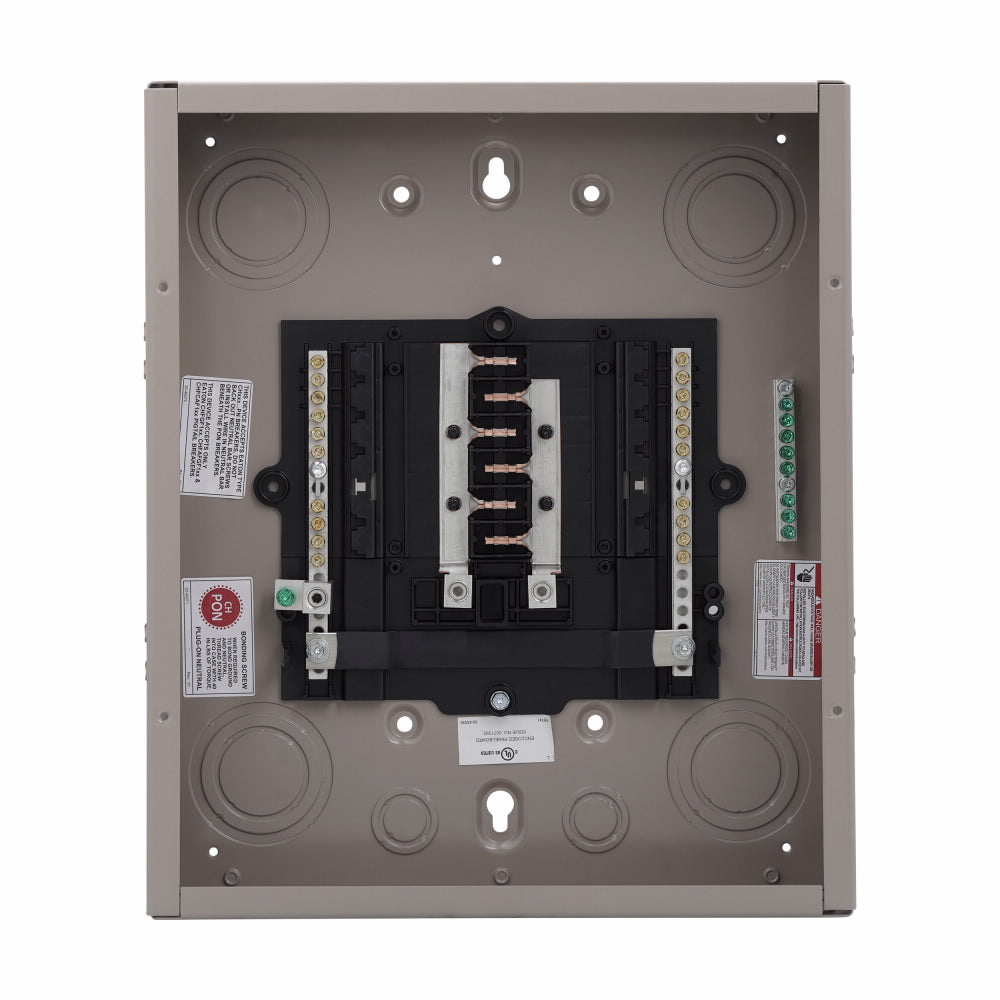

The CUTLER & HAMMER CHP12L125R is a CH main lug loadcenter with a cover included. Rated at 125A, this single-phase, three-wire loadcenter features a metallic NEMA 3R enclosure and is designed for overhead applications. It has 24 circuits and 12 spaces with a copper bus material and X0 box size.
- Cover included
- Main Lug Only
- Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard.
Product Highlights
The Cutler-Hammer CHP12L125R loadcenter is ideal for overhead feed applications requiring a NEMA 3R enclosure. It offers 24 circuits and 12 spaces.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: CHP12L125R
Technical Specifications
-
Amperage: 125A
-
Type: Main Lug Only
-
Wire Configuration: Three-wire
-
Phase: Single-phase
-
Application: Overhead
-
Enclosure: NEMA 3R
-
Material: Metallic
-
Conductor Material: Copper
-
Product Name: Eaton CH main lug loadcenter
-
Catalog Number: CHP12L125R
-
UPC: 786689058494
-
Product Length/Depth: 16.75 in
-
Product Height: 5.19 in
-
Product Width: 14.31 in
-
Warranty: Limited lifetime
-
Certifications: UL 67
-
Product Type: Main lug loadcenter
-
Special features: Cover included
-
Amperage Rating: 125 A
-
Bus material: Copper
-
Feed type: Overhead
-
Number of circuits: 24
-
Number of spaces: 12
-
Box size: X0
-
Enclosure material: Metallic
-
Interrupt rating: 25 kAIC
-
Number of wires: 3
-
Voltage Rating: 120/240 VAC
-
Number of Phases: 1
-
Circuit Breaker Type: Plug-On
-
Wiring Configuration: 3-Wire
-
Wire Size: 6 - 2/0 AWG
-
Enclosure Box Size: X0
-
Housing Material: Sheet Steel
-
Dimensions: 16.75 Inch L x 14.31 Inch W x 5.19 Inch H
-
Includes: Cover
-
Voltage: 120 VAC, 240 VAC
-
Current Rating: 125 A
-
Approvals: UL
-
Enclosure Material: Metal
-
NEMA Size: 3R
