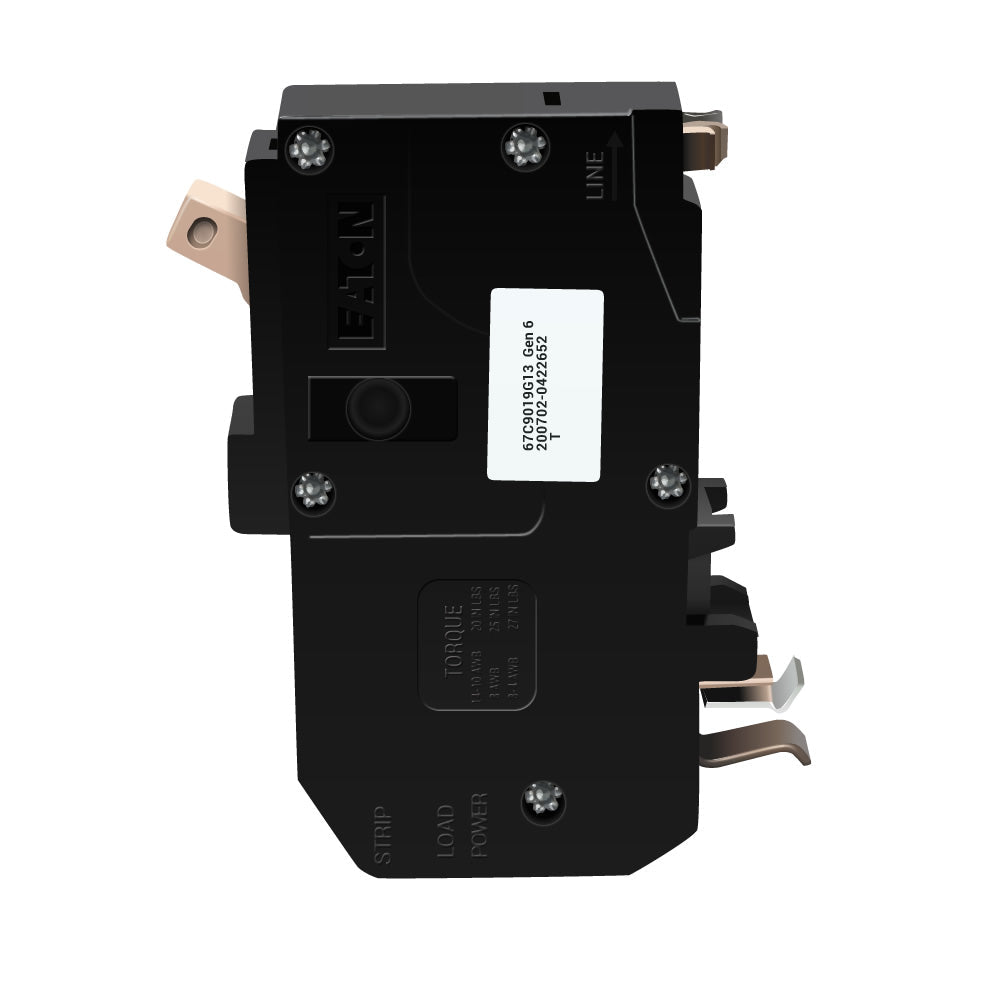

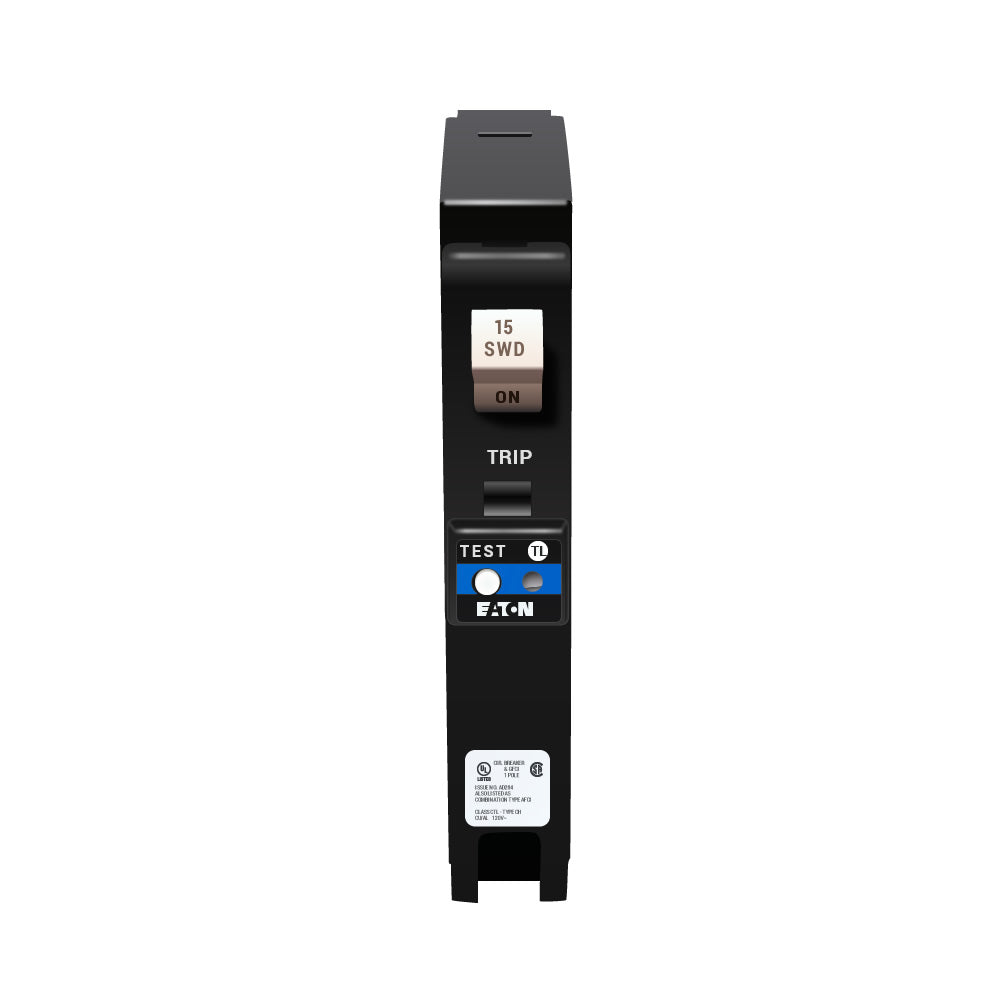

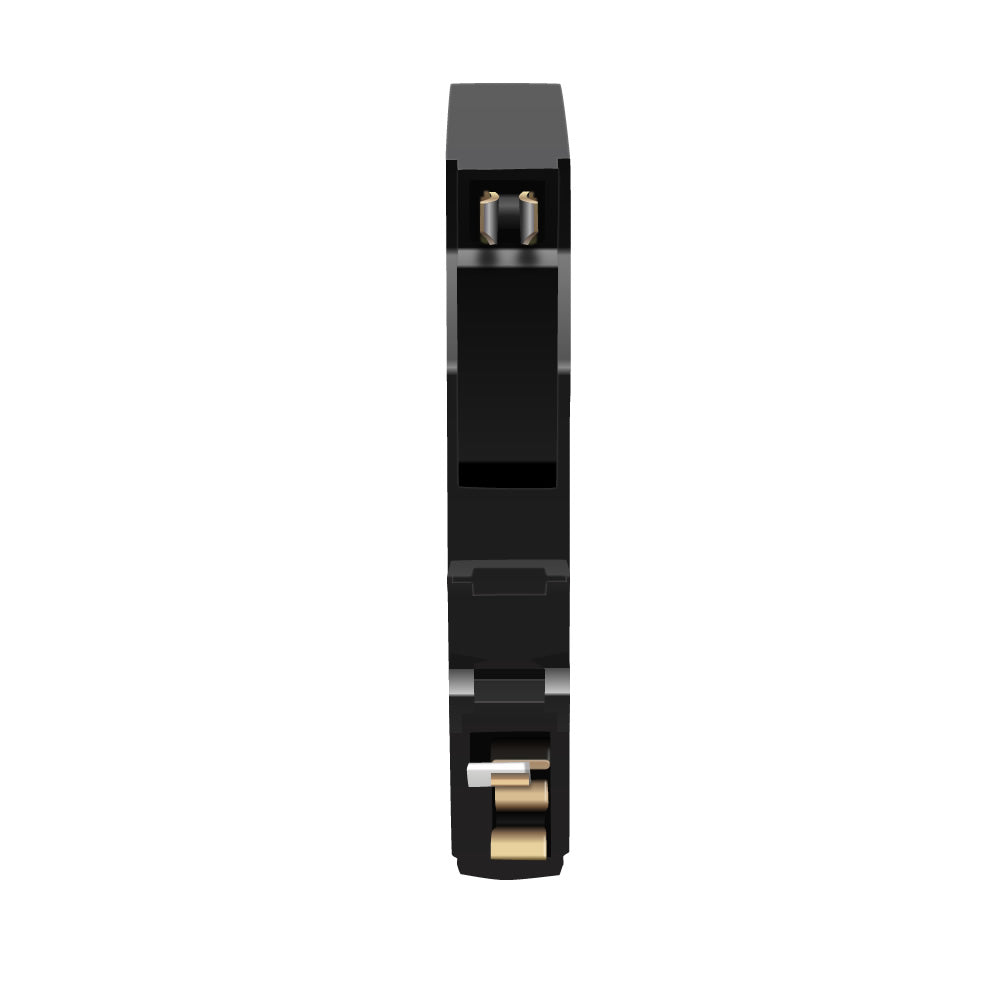

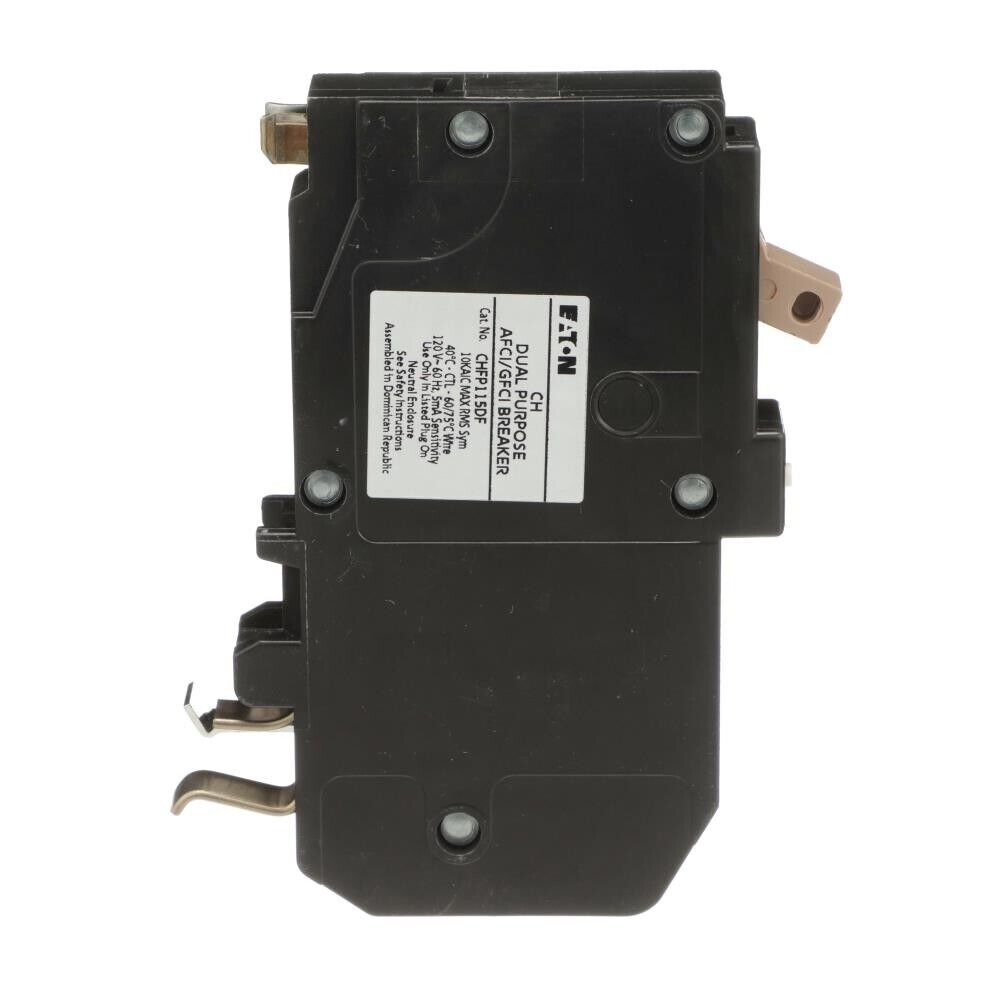

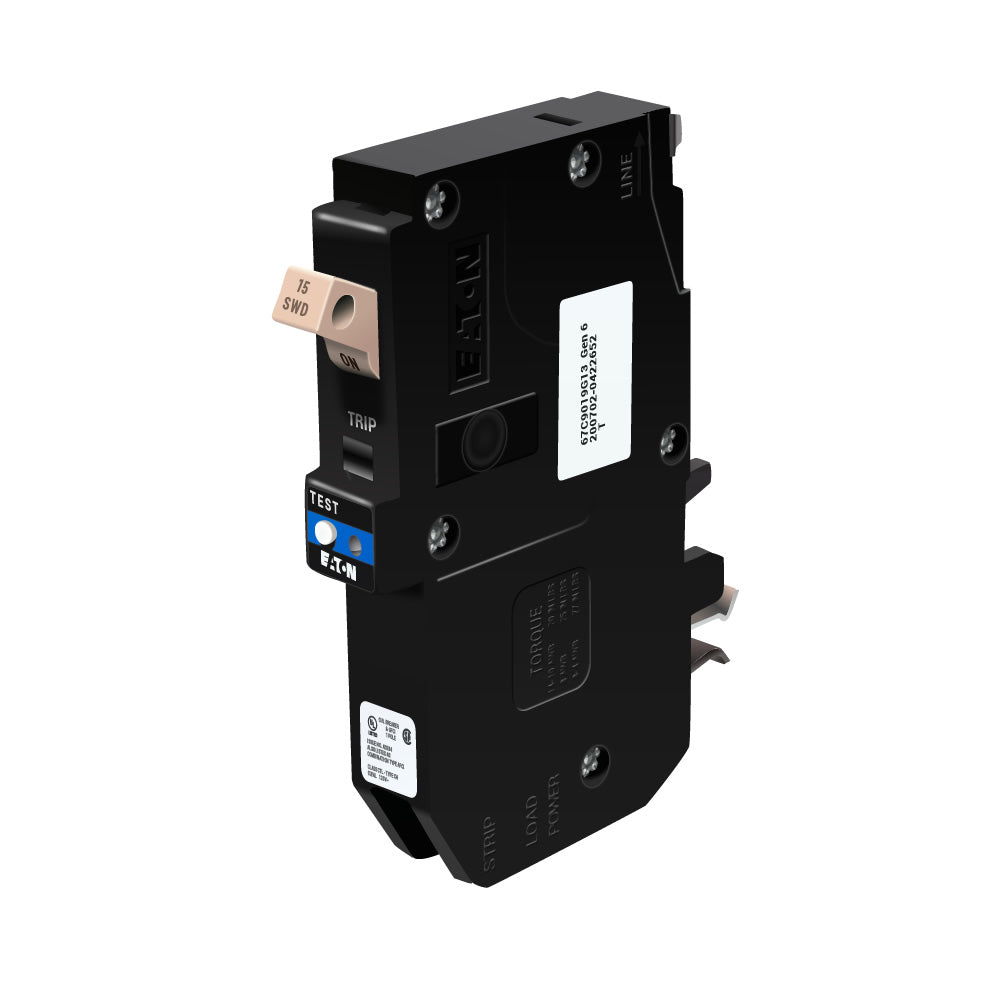

Cutler & Hammer CHFP115DF 15 Amp Dual Function Circuit Breaker

Product Description

The Cutler & Hammer CHFP115DF is a fifteen amp, single-pole, plug-in neutral, dual-function circuit breaker. It provides arc fault and ground fault protection. The CH series breaker operates at one hundred twenty volts and has an interrupt rating of ten kiloamperes at one hundred twenty volts. It features thermal-magnetic trip functionality with long-time and instantaneous trip functions. This circuit breaker is UL listed.

• Single-pole configuration.
• Provides arc fault and ground fault protection.
• Includes thermal-magnetic trip functionality.

Product Highlights

This circuit breaker is designed for safety and reliability in electrical systems.

Product Information

Standard Information

• Brand: Cutler & Hammer
• MPN: CHFP115DF

Technical Specifications

• Type: CHFP
• Family: CH Series
• AIC Rating: 10kA at 120V
• Number of poles: Single-pole
• Amperage Rating: 15 A
• Voltage: 120 Volt
• Phase: 1
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous
• Dimensions (H x W x L): 1.2 x 0.75 x 3.4
• Product Length/Depth: 3.4 inches
• Product Height: 1.2 inches
• Product Width: 0.75 inches
• Certifications: UL Listed
• Special features: Plug-on neutral
• Interrupt rating: 10 kAIC
• Circuit breaker type: CH
• Application: CH Dual Function AF/GF Breaker 15A PON 10kAIC
