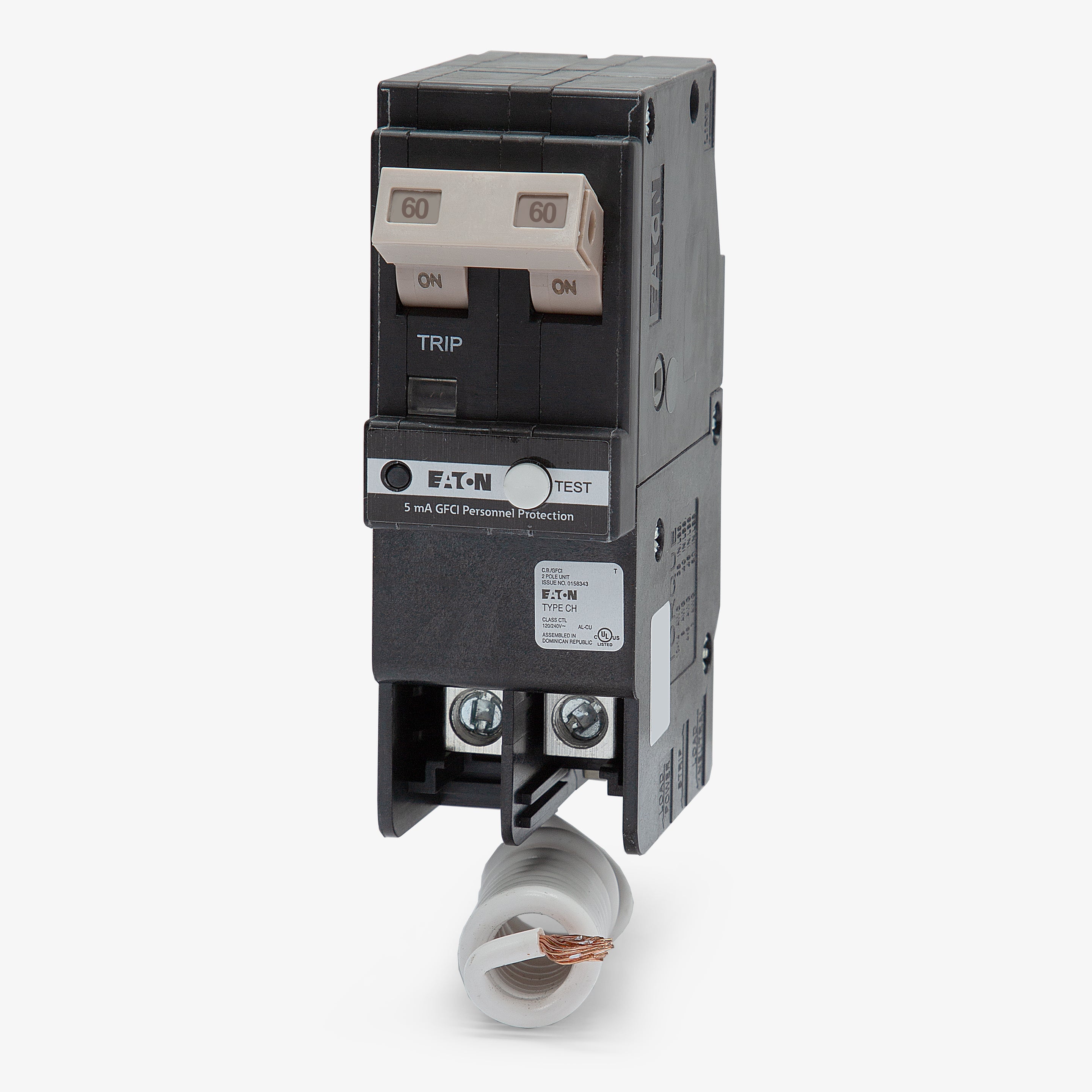

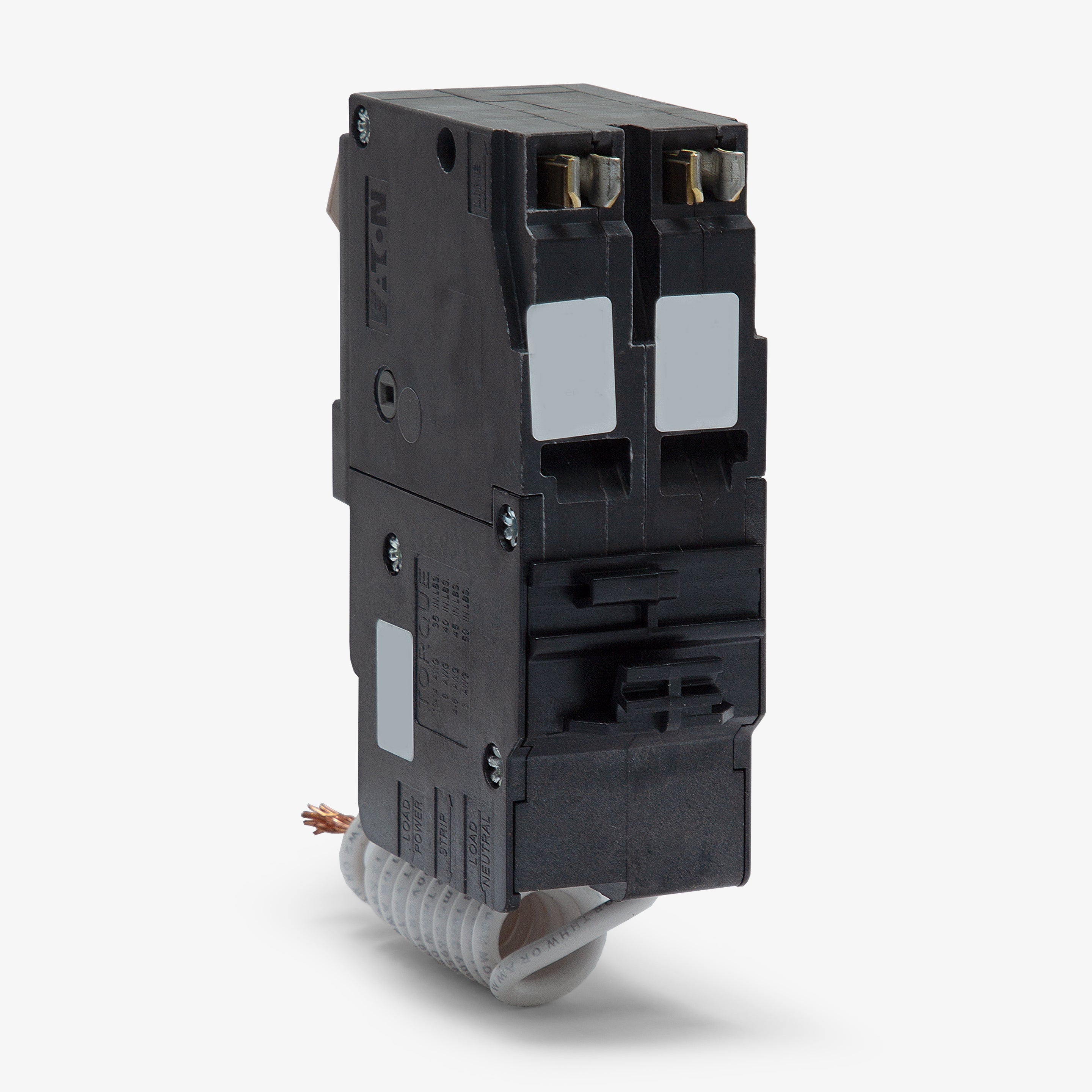

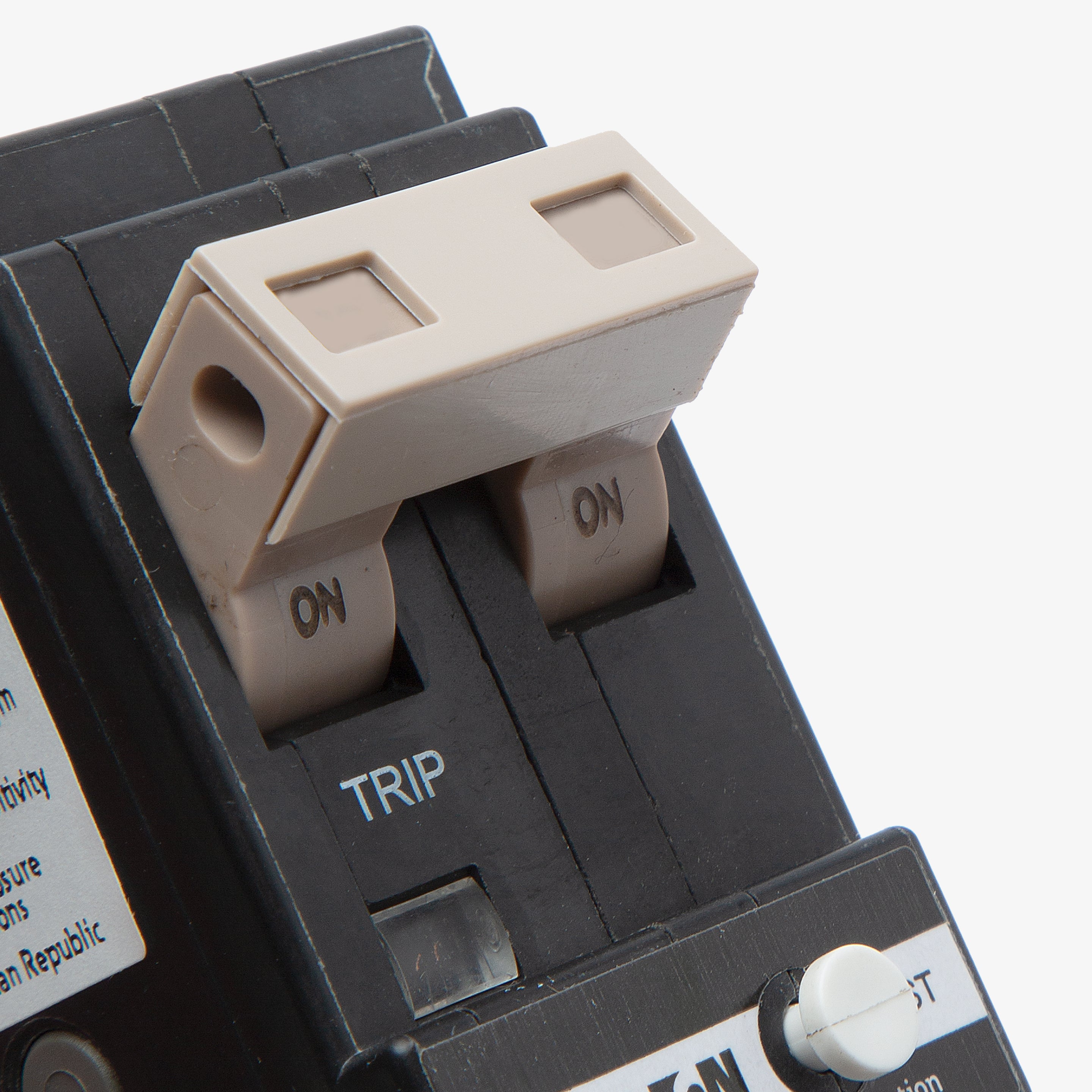

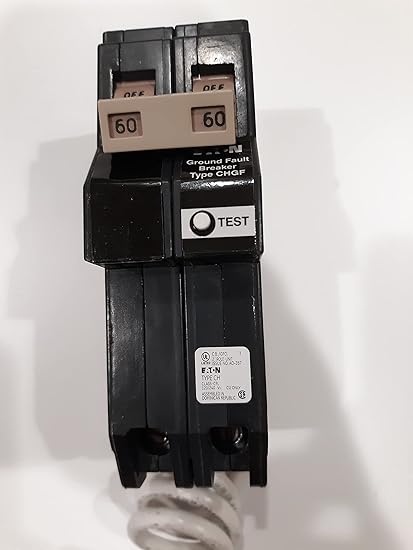

Cutler & Hammer CHFN260GF CH 2-Pole GFCI Breaker 60A

Product Description

The CUTLER & HAMMER CHFN260GF is a CH 2-Pole GFCI Breaker with a current rating of 60A and an interrupting rating of 10kAIC. This Class-A GFCI breaker provides 5 mA personnel protection and accepts #14-3 AWG wire. It is designed for residential buildings and facilities applications.

• 2 Pole molded case ground fault circuit breaker
• Current rating of 60 Amps
• Interrupting rating of 10kAIC

Product Highlights

The Cutler Hammer CHFN260GF is a 2-pole GFCI breaker with pigtail connection. It is suitable for panel mounting and provides ground fault protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHFN260GF

Technical Specifications

• SKU: CHFN260GF
• Product Name: Eaton CH GFCI circuit breaker
• Catalog Number: CHFN260GF
• UPC: 786689537869
• Product Length/Depth: 6.1 in
• Product Height: 3.5 in
• Product Width: 2.25 in
• Certifications: UL 943
• Product Type: GFCI circuit breakers
• Type: CH 2-Pole GFCI Breaker
• Brand: Eaton
• Series: CH
• Amperage: 60
• Poles: 2
• Approval: UL
• Interrupting Rating: 10kAIC
• Connection Type: Pigtail
• Wire Gauge: AWG 14 to AWG 3
• Circuit Breaker Type: GFCI
• Current Rating: 60 Amps
• Mounting Type: Panel Mount
• Number Of Poles: 2
• Voltage: 240 Volts
• Material: Plastic and Metal
• Item Package Quantity: 1
