Cutler & Hammer CHFN250GF CH GFCI circuit breaker 50 A replacement CHN250GF

Product Description

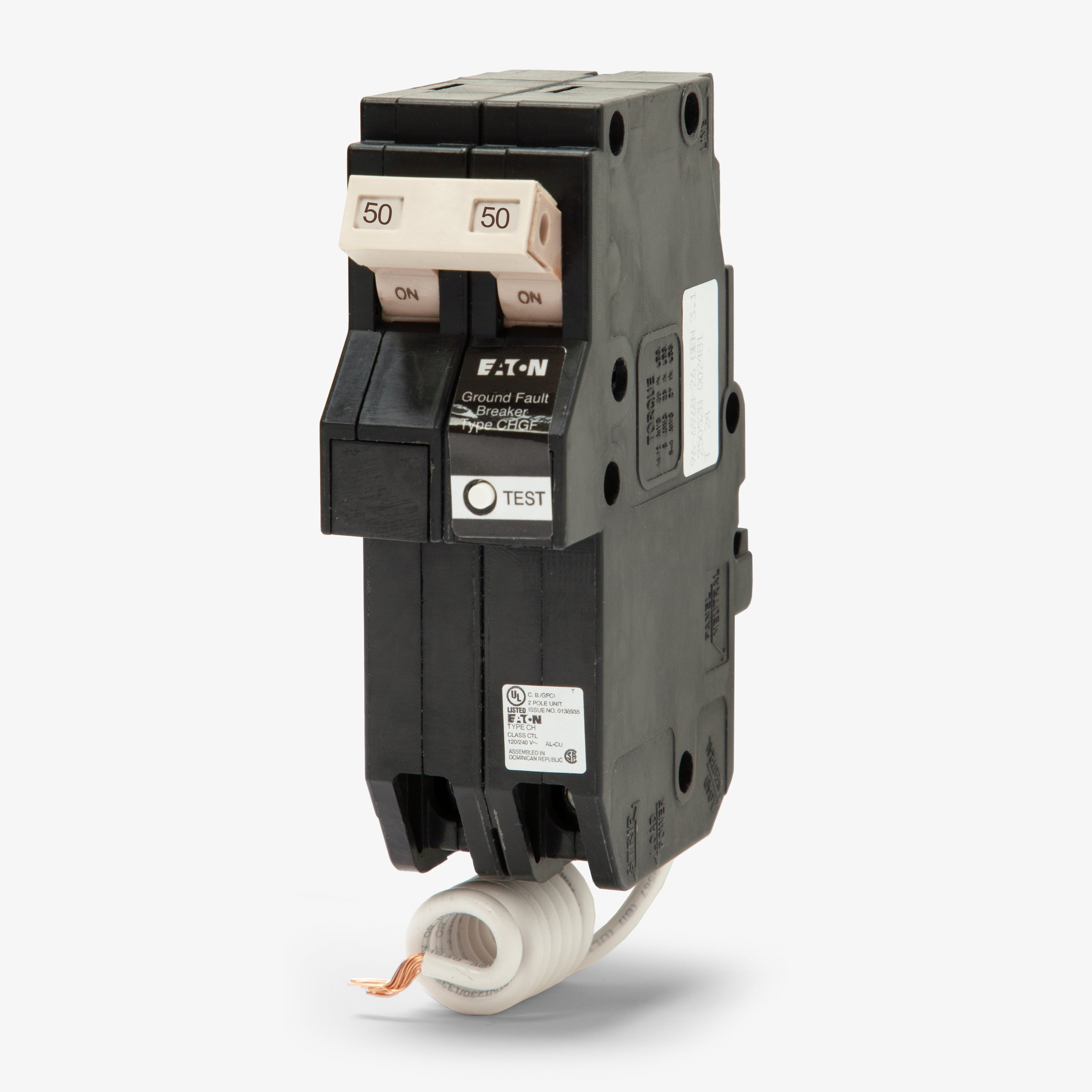

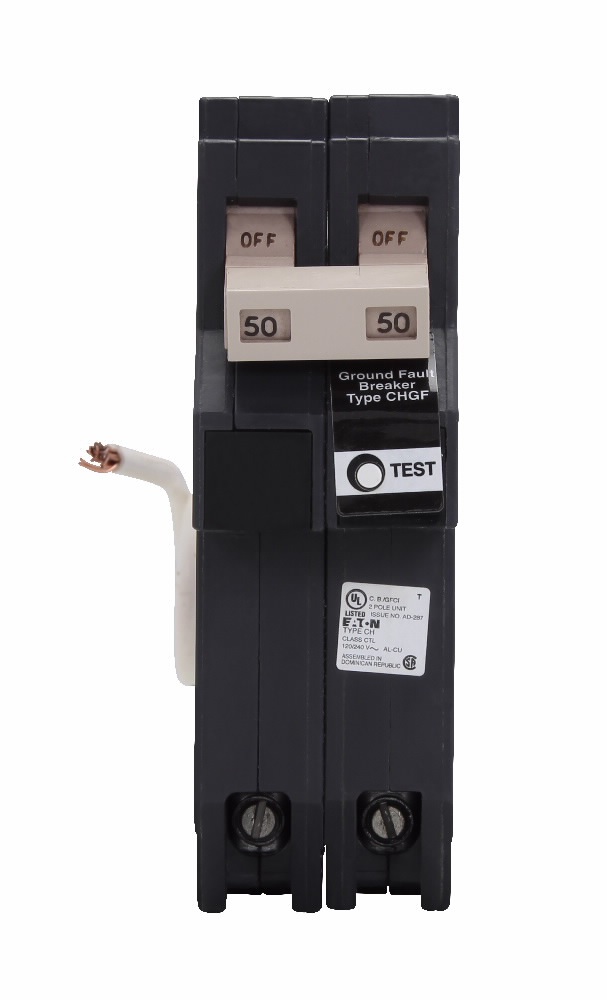

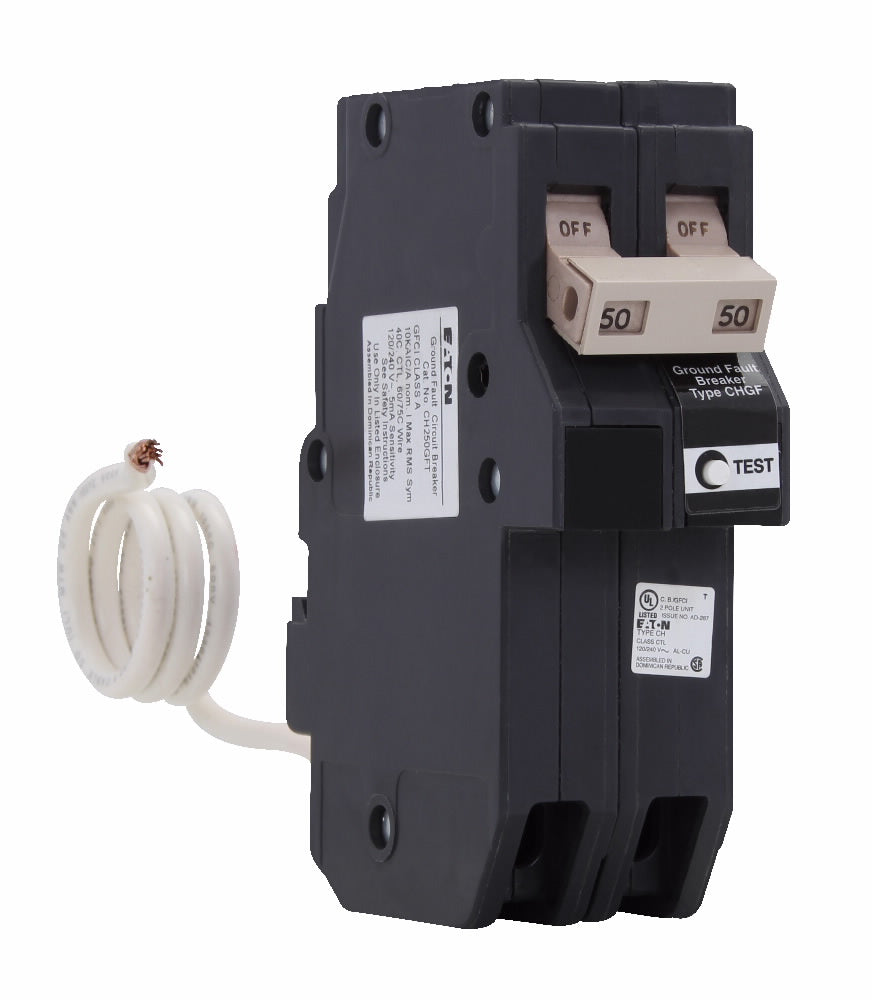

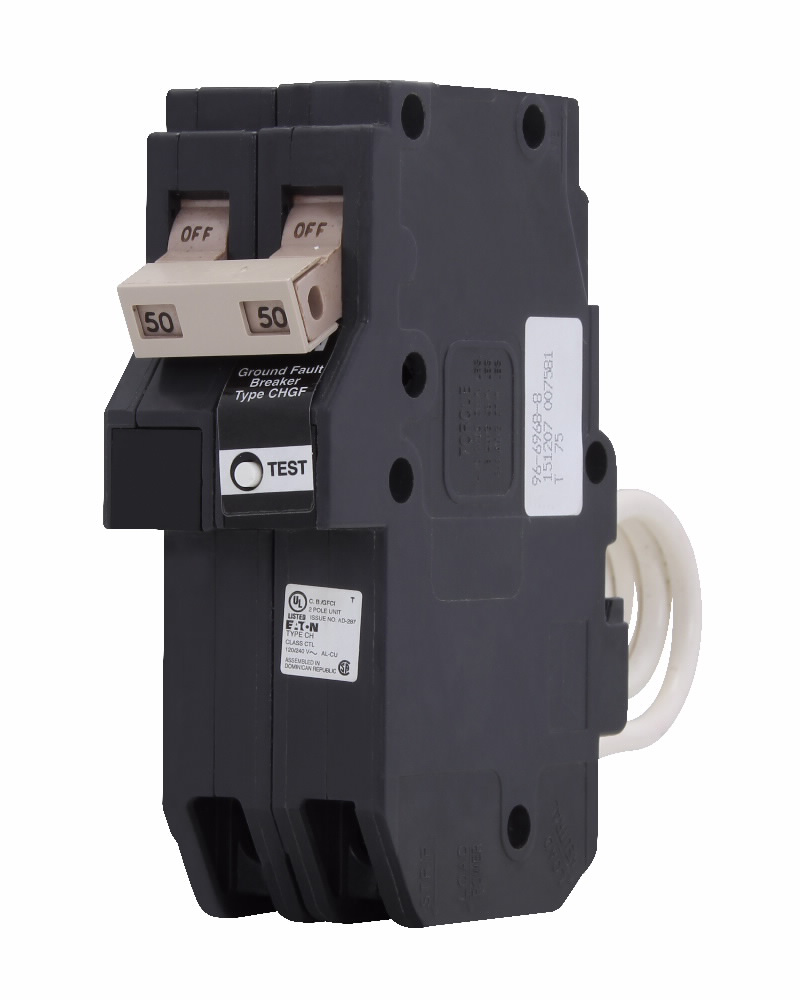

The CUTLER & HAMMER CHFN250GF is a CH GFCI circuit breaker. This plug-in circuit breaker is rated at 50 A with a 10 kAIC interrupt rating. It is a two-pole breaker designed for 120/240 V systems and features common trip functionality, GFI, and 5 mA protection.

• GFCI circuit breaker
• 50 A, 10 kAIC interrupt rating
• Two-pole, 120/240 V

Product Highlights

This breaker provides ground fault circuit protection and includes long time and instantaneous trip functions.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHFN250GF

Technical Specifications

• Product Name: Eaton CH GFCI circuit breaker
• Catalog Number: CHN250GF
• UPC: 786689217280
• Certifications: UL 489
• Product Type: GFCI circuit breakers
• Amperage Rating: 50 A
• Voltage rating: 120/240 V
• Trip Type: Common
• Indicators: GFI
• Protection: 5 mA
• Interrupt rating: 10 kAIC
• Main circuit breaker: CH
• Number of poles: Two-pole
• Type: Plug-in circuit breaker
• Brand: Eaton
• Series: CH
• Phase: 1
• Approval: UL
• Frame Type: CH
• Connection Type: Plug-In
• Functions: Long Time and Instantaneous Trip
• Circuit Breaker Type: GFCI
