Cutler & Hammer CHFN120AF AFCI Circuit Breaker 20A

Product Description

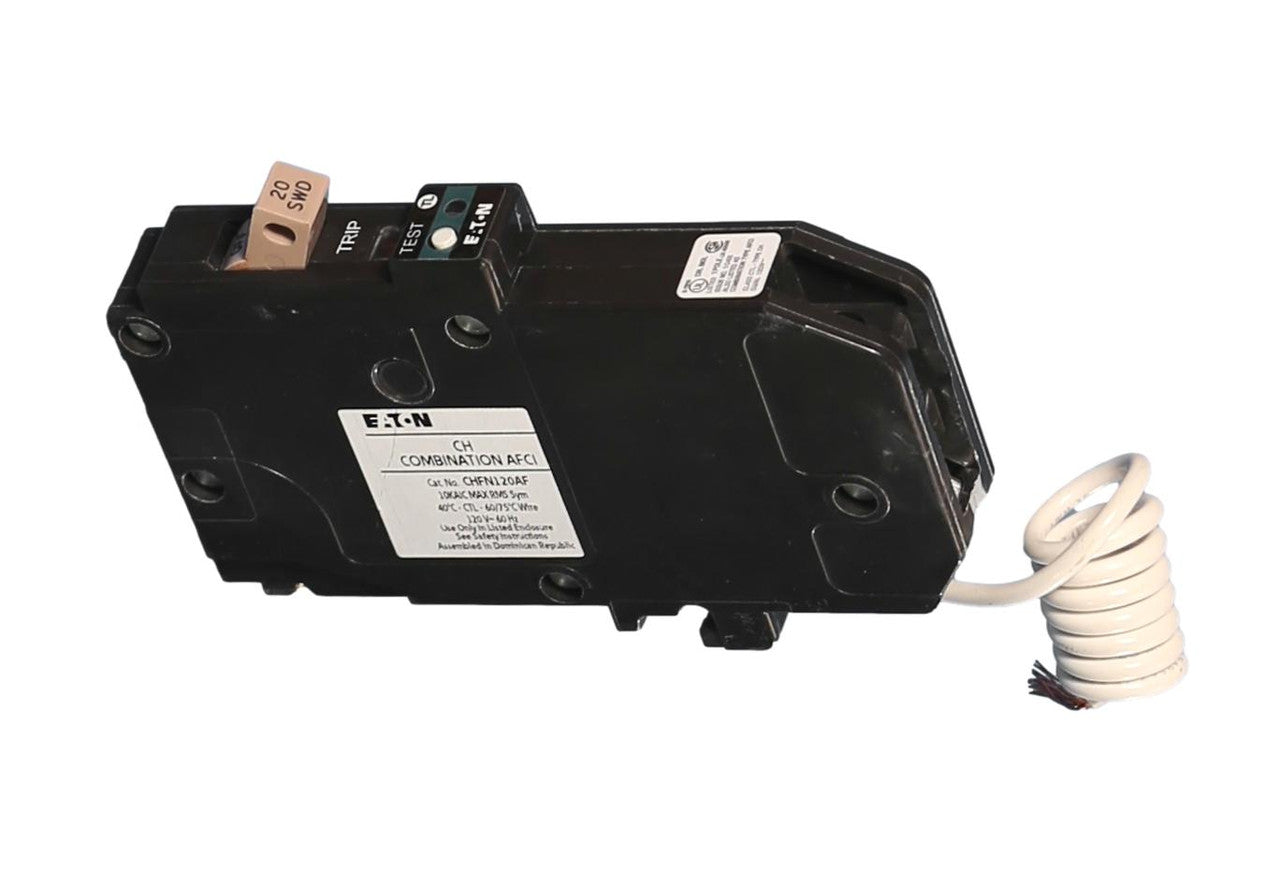

The Cutler & Hammer CHFN120AF is a single-pole, plug-on type CH combination arc fault circuit interrupter (AFCI) breaker. This breaker is rated for 20A and features a thermal-magnetic design with an interrupt rating of 10kAIC. It includes a pigtail connection, a push-to-test button, and an LED indicator, making it effective for protecting against arc faults.

• Single-pole and plug-on mounting for easy installation
• Includes a pigtail connection for secure wiring
• Interrupting capacity of 10kAIC for reliable protection

Product Highlights

Product Information

Standard Information

• Brand: Cutler & Hammer
• MPN: CHFN120AF

Technical Specifications

• Type: CH Combination AFCI
• Amperage Rating: 20 A
• Number Of Poles: Single-pole
• Interrupt Rating: 10 kAIC
• Voltage Rating: 120/240V
• Connection: Pigtail
• Mounting Type: Plug-on
• Tripping Type: Thermal Magnetic
• Test Feature: Push Test Button
• Indicator: LED
• Trip Sensitivity: 30mA
• Wiring Configuration: w/Pigtail lead
• Certifications: UL Listed
• Compliances: HACR Rated
• Product Length/Depth: 4.5 in
• Product Height: 3.25 in
• Product Width: 0.75 in
• Product Weight: 0.5 lb
• Condition: New
