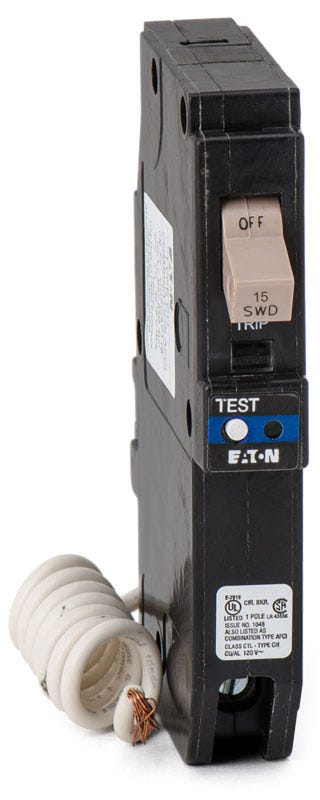

Cutler & Hammer CHFAFGF115 molded case circuit breaker 15a 120v

Product Description

The CUTLER & HAMMER CHFAFGF115 is a 1-phase, 1-pole, 15A, 120V molded case circuit breaker. It provides dual-function safety by combining arc-fault mitigation with 5mA ground-fault protection, meeting NEC mandates for comprehensive circuit defense. This miniature breaker features a plug-in connection and thermal magnetic protection with LI - Long-Time and Instantaneous trip functions, suitable for residential upgrades and Eaton Type CH load centers. It has a 10kA@120V AIC rating.

• 1-Phase, 1-Pole, 15A, 120V operation with 10kA@120V AIC rating.
• Dual-function safety combining arc-fault mitigation and 5mA ground-fault protection.
• Features plug-in connection and thermal magnetic protection with LI - Long-Time and Instantaneous trip functions.

Product Highlights

Combines AFCI and GFCI protection for enhanced circuit safety.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHFAFGF115

Technical Specifications

• Part Number: CHFAFGF115
• Brand: Eaton, Cutler Hammer
• Type: CHFAFGF
• Series: CH Series
• Amperage: 15A
• Voltage: 120V
• Poles: 1
• AIC Rating: 10kA@120V
• Trip Function: LI - Long-Time and Instantaneous
• Protection Type: Thermal Magnetic
• Mounting Type: Plug-In
• Frame Type: CH Frame
• Phase: 1
• Special Classification: Dual Function (AFCI/GFCI)
• Terminal Type: Box Lugs
• For Use With: Type CH Load Centers
• Trip Adjustability: Fixed
• Wire Gauge: (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al)
• Available Options: Padlock Attachment
• Accessories: Pigtail Neutral
• Certifications: UL 489, UL 943, UL 1699, HACR
• Operating Temperature: 60C to 75C
• Construction Features: HACR Rated, SWD Rated, Visual Trip Indicator
• Interruption Type: Arc Fault Circuit Interrupter (AFCI)
• Material: Plastic
• Suitable For: Interior
• Tripping Characteristics: Type A
• Operation Method: On/Off
• Current Type: AC
• Break Time: Instantaneous
• Frequency: 60 Hz
