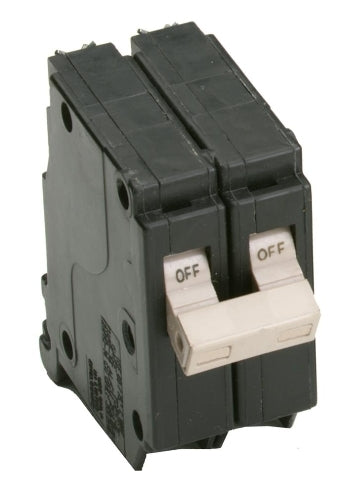

Cutler & Hammer CHF235 2P 35A CB 120/240V 3/4-Inch

Product Description

The CUTLER & HAMMER CHF235 is a two-pole, 35 Amp thermal magnetic circuit breaker designed for 120/240V applications. This 3/4-Inch standard circuit breaker provides overload and short-circuit protection, featuring a trip flag for clear indication of a tripped state. It is compatible with Type CH Loadcenters and includes a common breaker trip mechanism for simultaneous operation of both poles. The design ensures reliable performance in residential electrical systems.

• Features a trip flag to indicate a tripped state.
• Incorporates a common breaker trip for simultaneous operation of both poles.
• Provides thermal-magnetic protection against overloads and short-circuits.

Product Highlights

This CUTLER & HAMMER CHF235 circuit breaker offers essential protection for electrical circuits with its thermal-magnetic design and trip flag indicator.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CHF235

Technical Specifications

• Circuit Breaker Type: CHF 3/4-Inch standard circuit breaker
• Amperage: 35 A
• Interrupt Rating: 10 kAIC
• Poles: 2
• Voltage: 120/240V
• Wire Size: (1) 14-8 AWG; (2) 14-10 AWG Cu/Al
• Compatible Loadcenters: Type CH
• Current Type: AC
• Trip Type: Thermal Magnetic, Trip Flag, Long Time, Instantaneous
• Compliances: HACR Rated
• Certifications: UL 489, CSA, E2186
• Mounting Type: Plug
• Operating Temperature: 60 to 75
