Cutler & Hammer CH8L125RP Ldcntr 125A Mlo 3r

Product Description

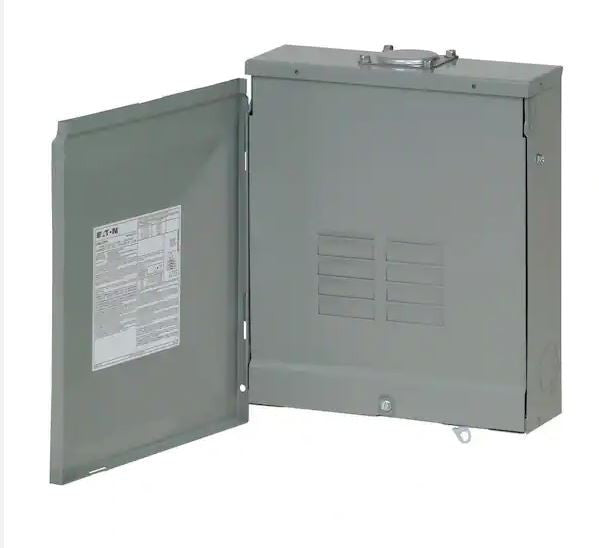

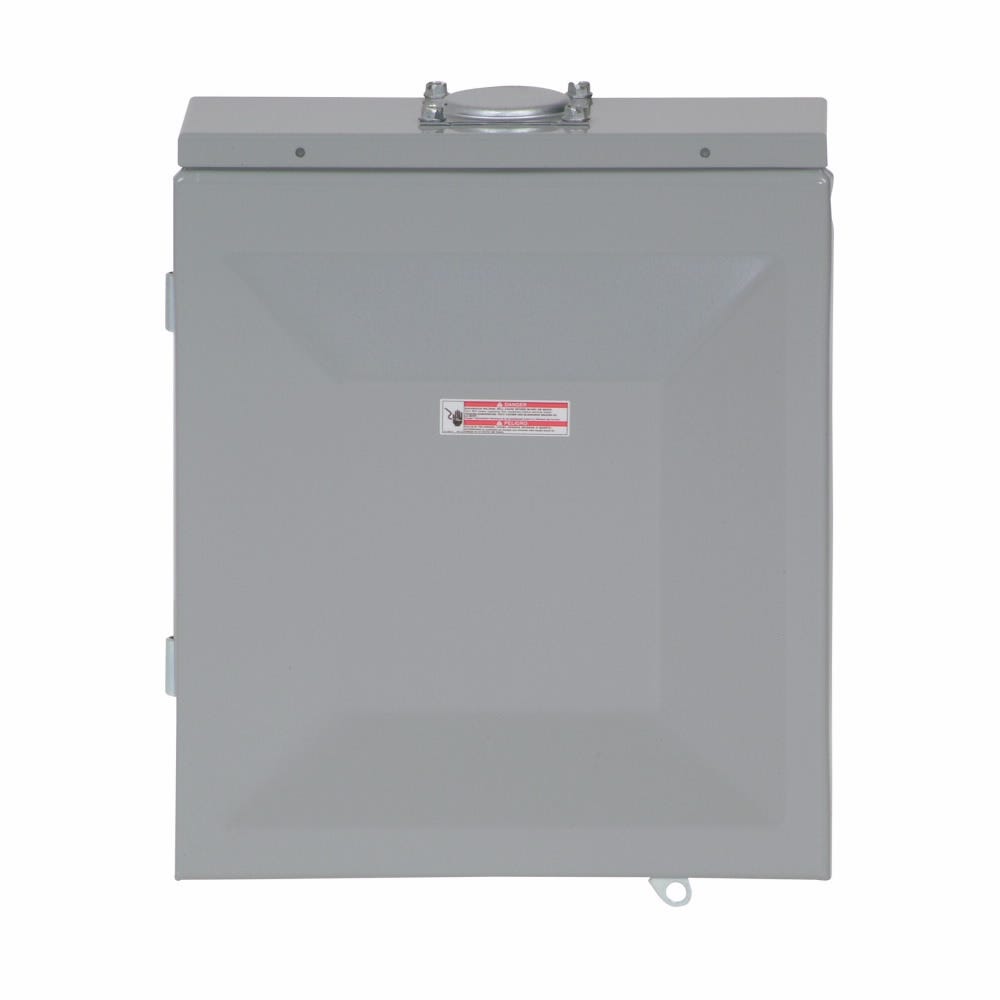

The Cutler & Hammer CH8L125RP Ldcntr is a main lug loadcenter with a cover included. Rated at 125A, it features a NEMA 3R metallic enclosure and is designed for overhead applications. This single-phase, three-wire loadcenter is constructed with copper and accommodates wire sizes from #6-1/0 AWG. It is suitable for use as service equipment.

• Features a main lug only configuration.
• Designed with a NEMA 3R enclosure for environmental protection.
• Utilizes a copper bus bar for enhanced conductivity.

Product Highlights

The Cutler & Hammer CH8L125RP is a reliable loadcenter for distributing power to individual circuits, suitable for overhead feed and service equipment applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH8L125RP

Technical Specifications

• Amperage: 125A
• Type: Main lug only
• Application: Overhead
• Phase: Single-phase
• Voltage: 120/240 V; 208 Y/120; 240 V
• Wire: Three-wire
• Material: Copper
• Enclosure: NEMA 3R
• Construction: Metallic
• Product Type: Main lug loadcenter
• Special features: Cover included
• Amperage Rating: 125 A
• Bus material: Copper
• Feed type: Overhead
• Main circuit breaker: CH
• Number of circuits: 8
• Number of spaces: 8
• Voltage rating: 120/240V, 208Y/120, 240V
• Wire size: #6-1/0 AWG
• Enclosure material: Metallic
• Interrupt rating: 25 kAIC
• Number of wires: 3
• Product Length/Depth: 13 in
• Product Height: 3.69 in
• Product Width: 11 in
• Mfr Brand Name: CUTLER HAMMER
• Catalog No.: CH8L125RP
• Amps: 125
• Volts: 240
• Number of Phases: 1
• NEMA: N3R
• Circuits: 8/16
• Main Breaker: No
• Main Breaker Type: n/a
• Main Lug Only: Yes
• Branch Circuit type: CH CHT
• Current Rating: 125 A
• Mounting Type: Surface
• Cable Size: 6 to 1/0 AWG
• Wiring Configuration: 3-Wire
• Includes: Cover
• Bus Rating: 125 A
