Cutler & Hammer CH8L125FP Ldcntr 125A Mlo Fc

Product Description

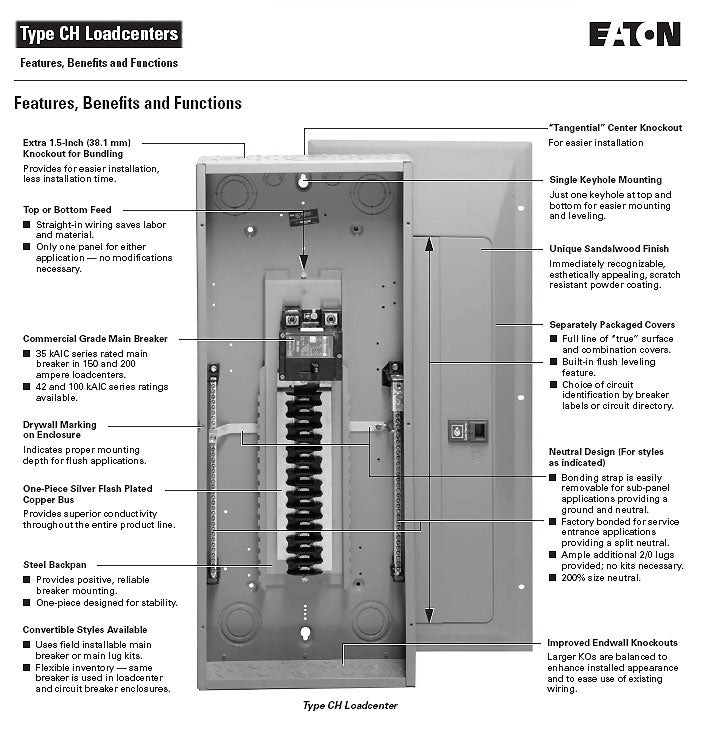

The Cutler & Hammer CH8L125FP is an Eaton CH main lug loadcenter. Rated at 125A, this loadcenter features a copper conductor material and a NEMA 1 metallic enclosure. Designed for flush mounting, it has 8 spaces and poles, and supports a three-wire, single-phase configuration at 120/240 V, with a wire size of NO.6-1/0 AWG.

• Main lug only loadcenter with 125A amperage.
• Features a NEMA 1 metallic enclosure for indoor use.
• Designed for single-phase, three-wire systems at 120/240V.

Product Highlights

The Cutler & Hammer CH8L125FP loadcenter is ideal for indoor applications requiring a reliable and robust power distribution solution.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH8L125FP
• Country of Origin: United States

Technical Specifications

• Main Lug: Only
• Amperage: 125A
• Number of Circuits: 7
• Conductor Material: Copper
• Enclosure Type: NEMA 1
• Enclosure Material: Metallic
• Feed: Top/bottom
• Series: CH
• Mounting: Flush
• Number of Spaces: 8
• Number of Poles: 8
• Wiring Configuration: Three-wire
• Phase: Single-phase
• Voltage: 120/240 V
• Wire Size: NO.6-1/0 AWG
• Catalog Number: CH8L125FP
• UPC: 782114190524
• Product Length/Depth: 13 in
• Product Height: 3.69 in
• Product Width: 11 in
• Certifications: UL 67 UL 50
• Product Type: Main lug loadcenter
• Type: Main lug only
• Amperage Rating: 125 A
• Bus material: Copper
• Main circuit breaker: CH
• Interrupt rating: 25 kAIC
• Number of wires: 3
• Trade Name: CH
• Main Type: Main Lug
• Wire: 3
• Main Ampere Rating (A): 125
• Voltage Rating: 120/240 VAC
• Enclosure Meterial: Metallic
• Requirement: Use of Type CHNT Breakers
• Max. Number 3/4" Spaces: 8
• Max. Number 3/4" Poles: 16
• Neutral: Insulated/Bondable Neutral
• Mounting Type: Plug-In
• Cover: Flush (No Door)
• Bus Material: One-Piece Silver Flash Plated Copper Bus
• Grounding Bar: Sold Separately
• Height (In.): 13.00
• Width (In.): 11.00
• Tripping Characteristics: Type B
• Number of Phases: 1
• Body Material: Steel
• Installation Orientation: Flush
• Circuit Breaker Installation Type: Plug-in
• Overall Depth (Decimal Inch): 3.6900
• Overall Depth (mm): 93.70
• Overall Height (Decimal Inch): 13
• Overall Height (mm): 330.20
• Overall Width (Decimal Inch): 11
• Overall Width (mm): 279.40
• Wire Size (AWG): 6-1/0
• Recommended Environment: Indoor
• Standards Met: CSA E51287 Certified; Federal Specification W-C 375 b/Gen; UL 489; CSA E3624 Certified; EC Article 373.8; CSA File LR87196 Certified; UL Listed File E11713; Article 408.34 of NEC; NEMA; UL Listed File E8741
