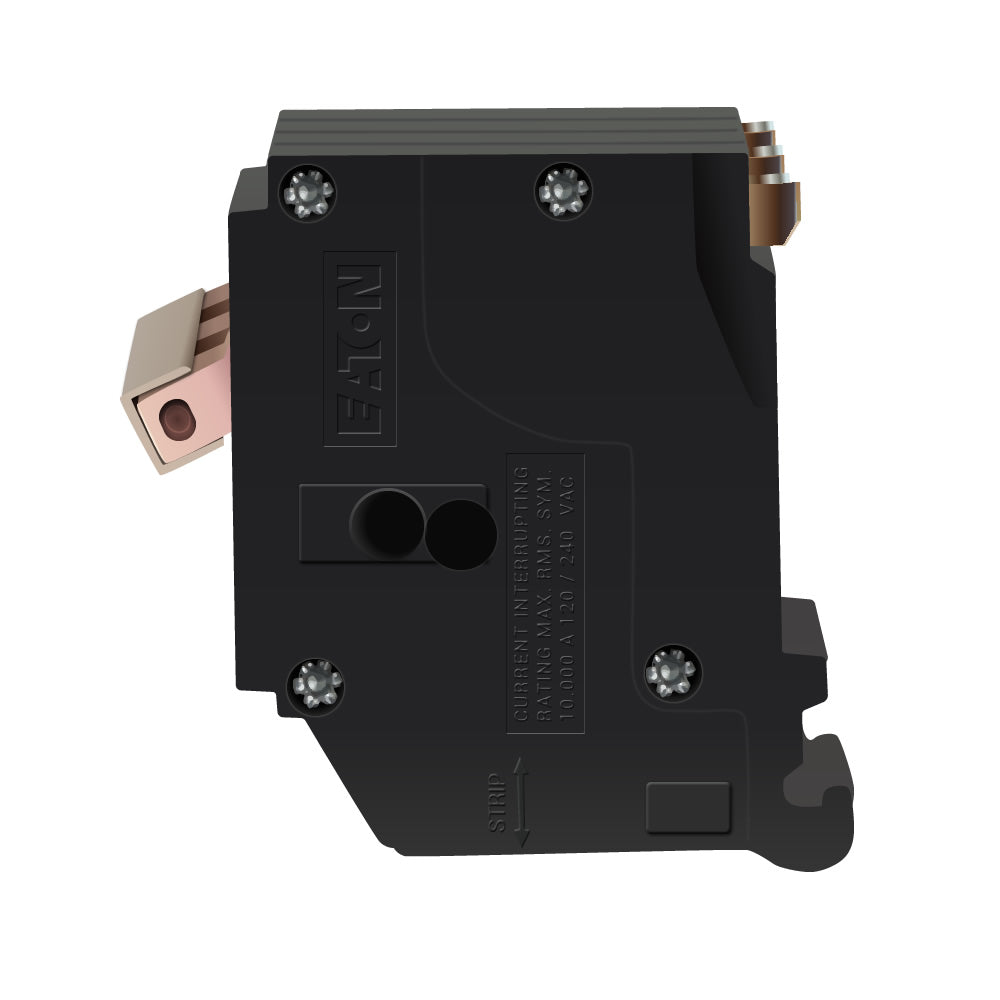

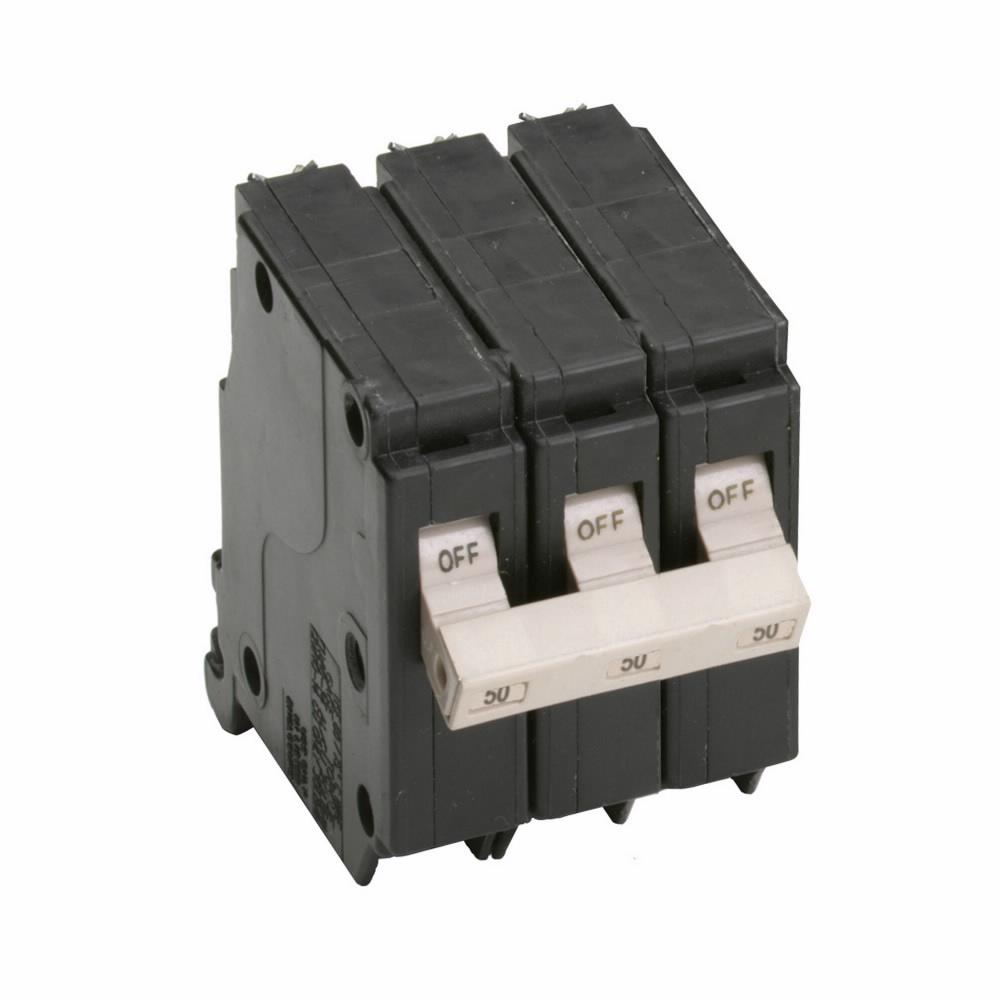

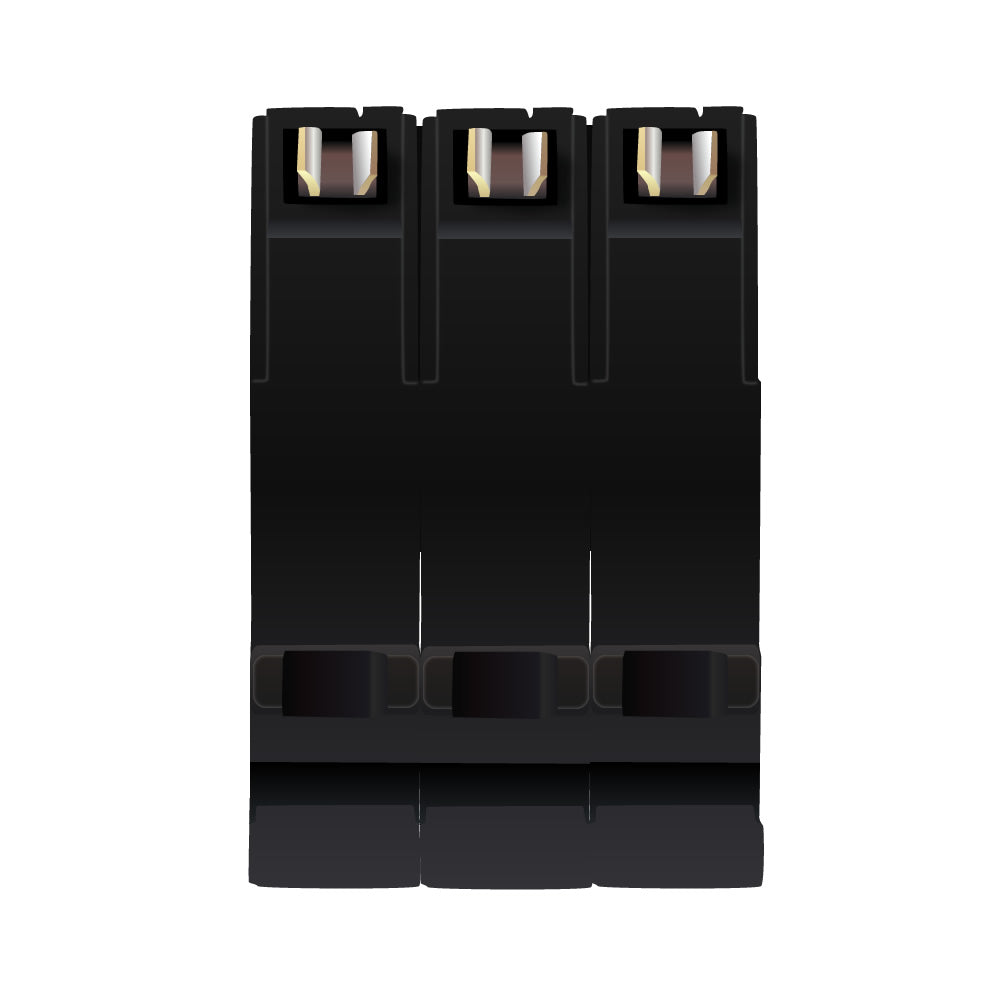

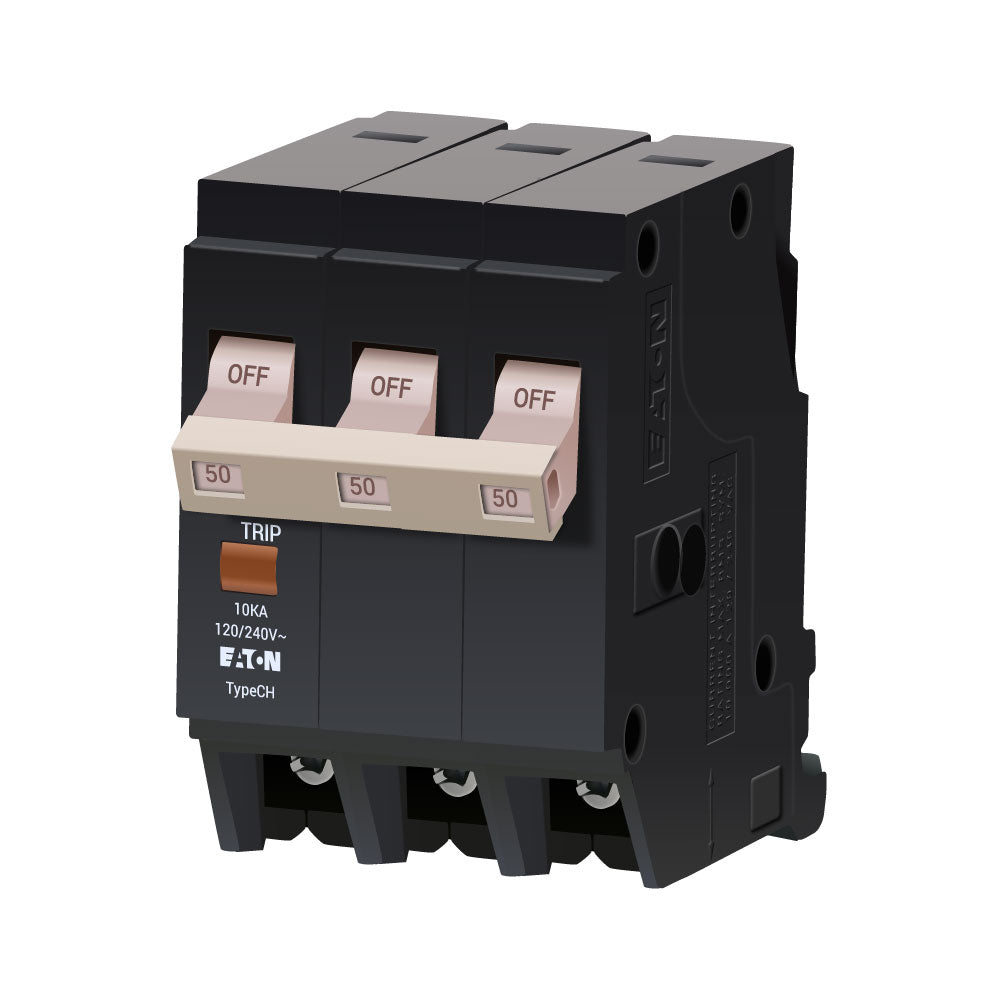

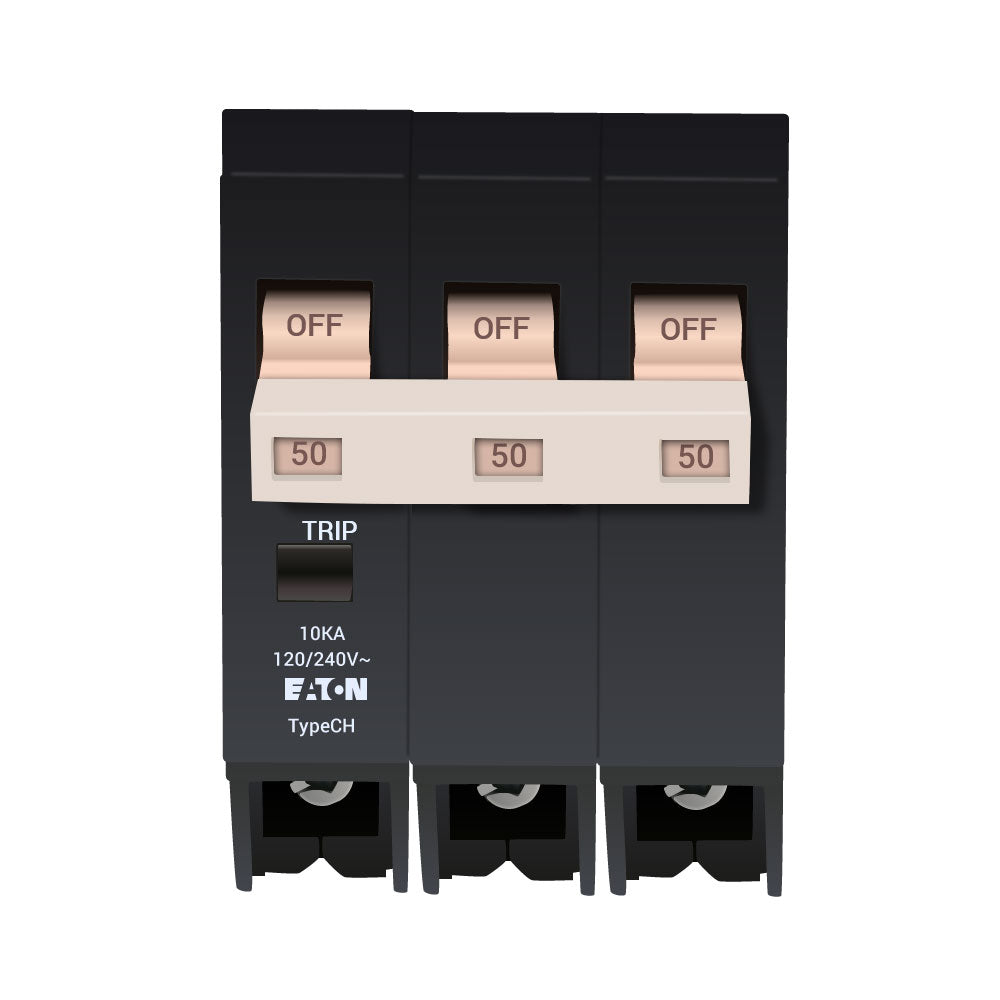

Cutler & Hammer CH350 Type CH 3/4-Inch Standard Circuit Breaker 50A

Product Description

The Cutler & Hammer CH350 is a type CH 3/4-Inch standard circuit breaker designed to provide premium overload protection. This three-pole breaker has a 50A amperage rating and a 240V voltage rating, with an interrupting capacity of 10 kAIC. It features a common breaker trip and accepts NO.10-1/0 AWG Cu/Al wire. The thermal-magnetic trip curve avoids nuisance tripping.

• Provides premium overload protection
• Trips to the OFF position
• Includes a trip flag

Product Highlights

Eaton CH thermal magnetic circuit breaker with a quick make, quick break switch mechanism. It has an internal common trip connection to operate all poles simultaneously.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH350

Technical Specifications

• Type: CH 3/4-Inch standard circuit breaker
• Amperage Rating: 50 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 3
• Voltage Rating: 240 VAC
• Breaker Type: CH
• Trip Type: Common breaker trip
• Wire Size: NO.10-1/0 AWG Cu/Al
• Loadcenter Type: CH
• MPN: CH350
• Brand: CUTLER & HAMMER
• Series: Series CH
• Commercial/Residential: Commercial
• Connection Type: Plug-On
• Terminal Type: Lug
• Temperature Rating: 60 - 75 deg C
• Certifications: UL 489
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Circuit Breaker Type: Type CH Circuit Breaker
• Tripping Mechanism: Thermal-Magnetic
• Terminal Connection Type: Screw
• Reset Actuator Type: Handle
• Amps: 50
• Volts: 120/240
