Cutler & Hammer CH2L125RP Ldcntr 125A Mlo 3r

Product Description

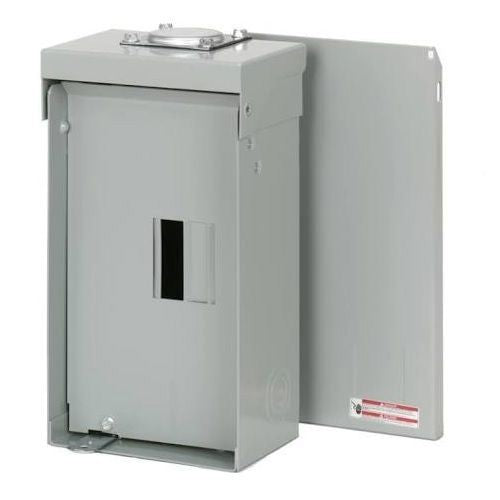

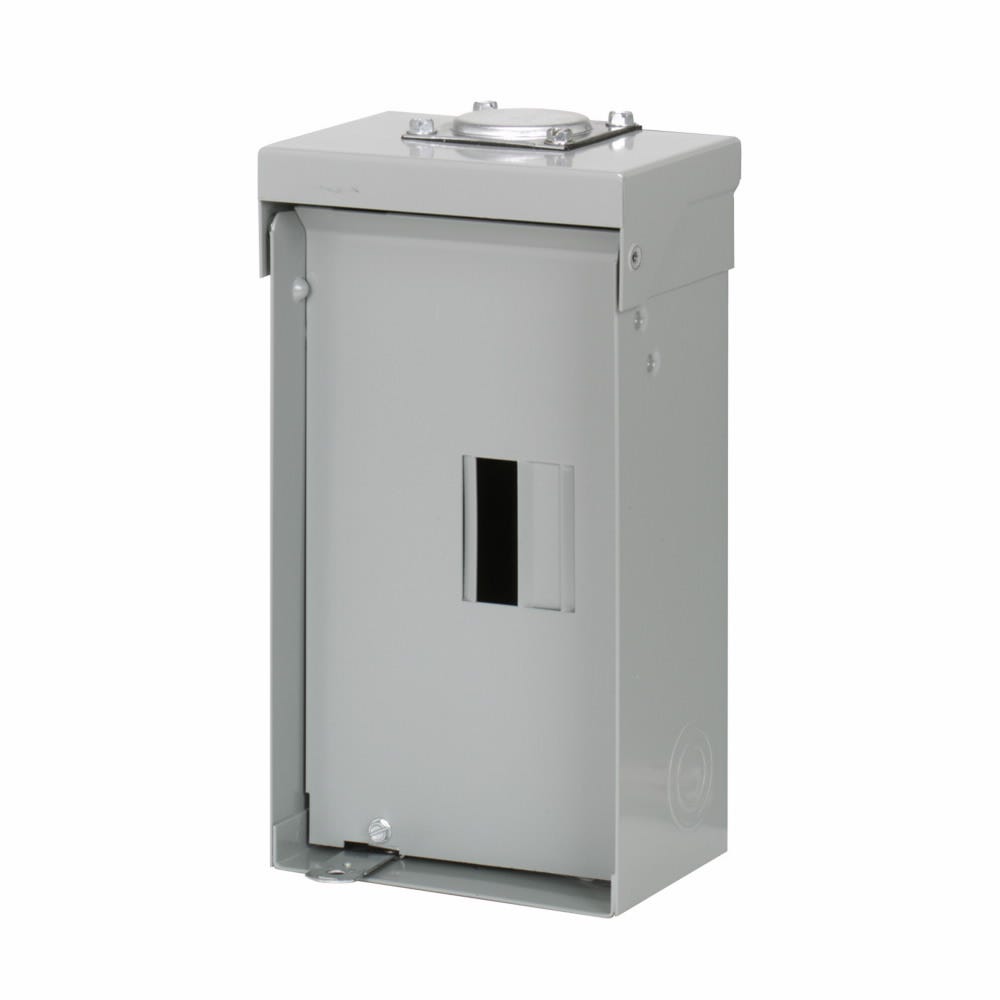

The Cutler & Hammer CH2L125RP is a standard Eaton CH main lug loadcenter designed for power distribution and circuit protection. This main lug only loadcenter has a 125A amperage rating and a NEMA 3R metallic enclosure. It is designed for single-phase systems operating at 120/240 V.

• Features a NEMA 3R enclosure for outdoor use.
• Utilizes a copper bus for enhanced conductivity.
• Designed for overhead feed type.

Product Highlights

This loadcenter is ideal for residential and light commercial applications requiring a reliable and durable solution for distributing electricity.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH2L125RP

Technical Specifications

• Amperage: 125A
• Type: Main lug only
• Enclosure: NEMA 3R
• Material: Metallic
• Phase: Single-phase
• Voltage: 120/240 V
• Product Type: Main lug loadcenter
• Special features: Standard
• Amperage Rating: 125 A
• Bus material: Copper
• Feed type: Overhead
• Main circuit breaker: CH
• Number of circuits: 2
• Number of spaces: 2
• Wire size: #14-1/0 AWG
• Box size: 6R
• Enclosure material: Metallic
• Interrupt rating: 25 kAIC
• Number of wires: 3
• Product Length/Depth: 9.5 in
• Product Height: 3.13 in
• Product Width: 4.5 in
• Certifications: UL 50 UL 67
• Maximum Amperage: 125 A
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Wiring Configuration: 3-Wire
• Voltage Rating: 120/240 VAC
• Breaker Mounting: Plug-On
• Breaker Type: CH
• Bus Rating: 125
• Enclosure Box Size: NEMA 6R
• Wire Size: 1 to 4/0 AWG
• Application: Residential and Commercial
• Standard & Approvals: UL 67/50
• Housing Material: Copper
• Catalog ID: C-HCH2L125RP
• Dimensions: 9.5 in L x 4.5 in W x 3.13 in H
