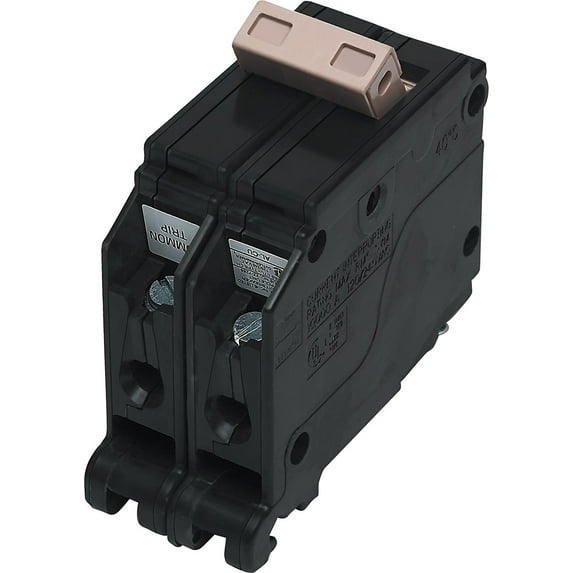

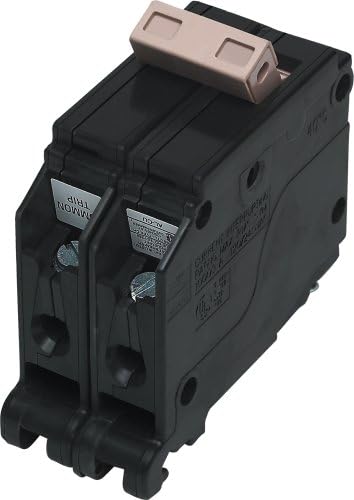

Cutler & Hammer CH290 Type CH Thermal Magnetic Circuit Breaker 90A 120/240 Vac 2-Pole Pack of 1

Product Description

The CUTLER & HAMMER CH290 is a Type CH Thermal Magnetic Circuit Breaker designed for residential applications, providing premium overload and short-circuit protection. This 2-pole, 90A, 120/240 VAC breaker trips to the OFF position, preventing nuisance callbacks. Its thermal-magnetic trip curve prevents nuisance tripping on mild overloads while reacting quickly to severe short-circuit conditions. It is suitable for use in Cutler-Hammer load centers and requires two 3/4" spaces.

• Provides premium overload and short-circuit protection
• Trips to the OFF position, preventing nuisance callbacks
• Features a thermal-magnetic trip curve for reliable operation

Product Highlights

2-Pole, 90A, 120/240 VAC thermal magnetic circuit breaker for residential load centers.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH290
• Country of Origin: United States

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: CH290
• Circuit Breaker Type: CH Thermal Magnetic Circuit Breaker
• Amperage: 90A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In Mount
• Application: CH Loadcenter
• Interrupting Rating: 10kA@240V
• Certifications: UL Listed and CSA Certified
• Subcategory: Molded Case
• Series: CH Series
• Phase: 1
• Protection Functions: LI - Long-Time and Instantaneous
• Wire Size: 10 To 1/0 AWG (Aluminum/Copper)
