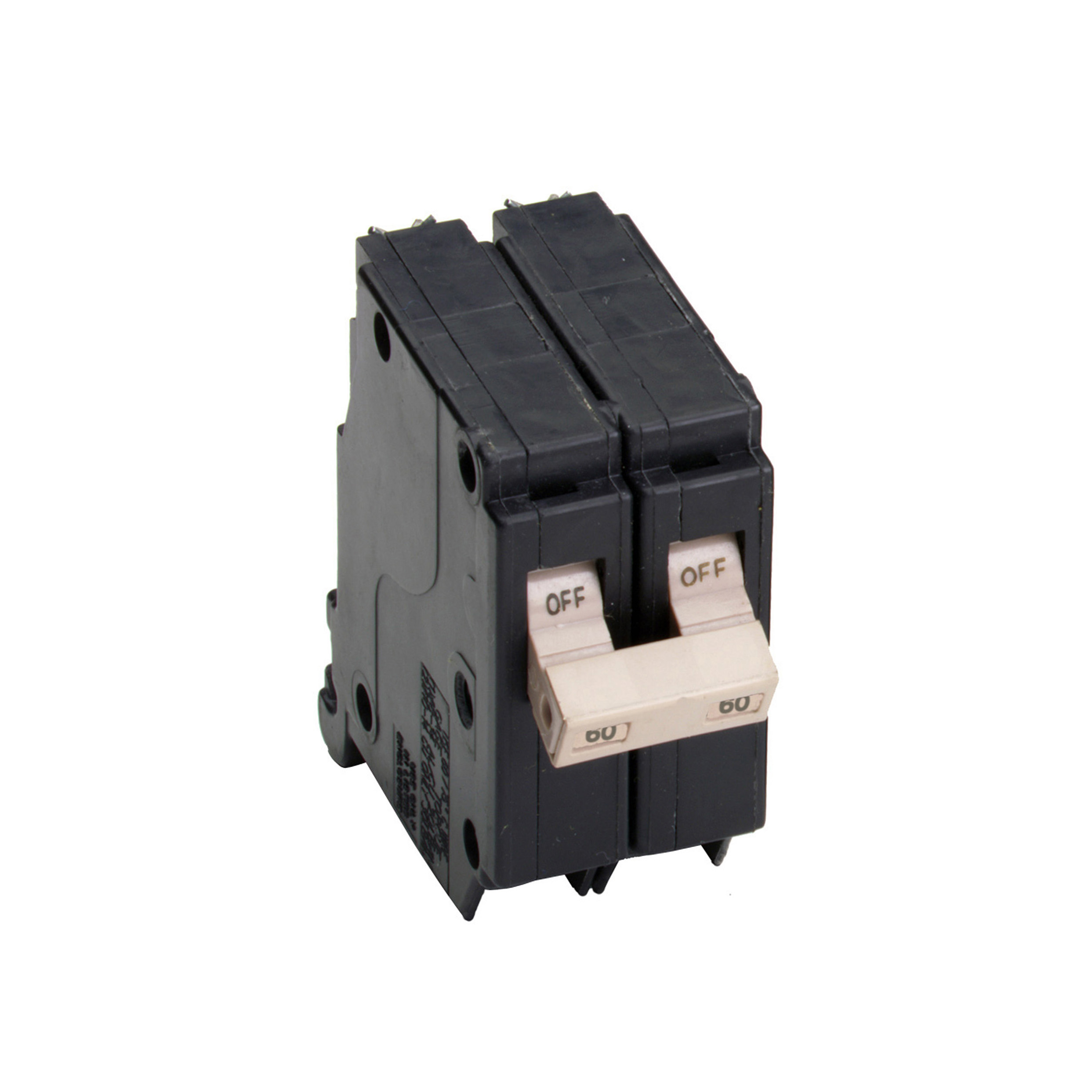

Cutler-Hammer CH260 Plug-On Circuit Breaker 60A 120/240V

Product Description

The Cutler-Hammer CH260 is a two-pole circuit breaker designed for 120/240V applications. This thermal magnetic circuit breaker operates at a 60A amperage rating and a ten kAIC interrupt rating.

• Type CH 3/4-inch standard circuit breaker
• Compatible with Type CH loadcenters
• Common trip functionality

Product Highlights

The CH260 is suitable for general electrical distribution needs and can accommodate wire sizes from 14 to 2 AWG copper and aluminum. It is HACR rated, ensuring optimal compatibility with heating, air conditioning, and refrigeration loads. Designed to provide reliable protection in residential and commercial settings, this breaker supports installation in spaces requiring two 3/4-inch positions.

Product Information

Standard Information

• Brand: Cutler-Hammer
• MPN: CH260

Technical Specifications

• Type: Type CH 3/4-inch Standard Circuit Breaker
• Amperage Rating: 60A
• Interrupt Rating: 10 kAIC
• Number Of Poles: Two-pole
• Voltage Rating: 120/240V
• Main Circuit Breaker: CH
• Trip Type: Common
• Wire Size: #14-2 AWG Cu/Al
• Used With: Type CH Loadcenters
• Notes: HACR rated, Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces
