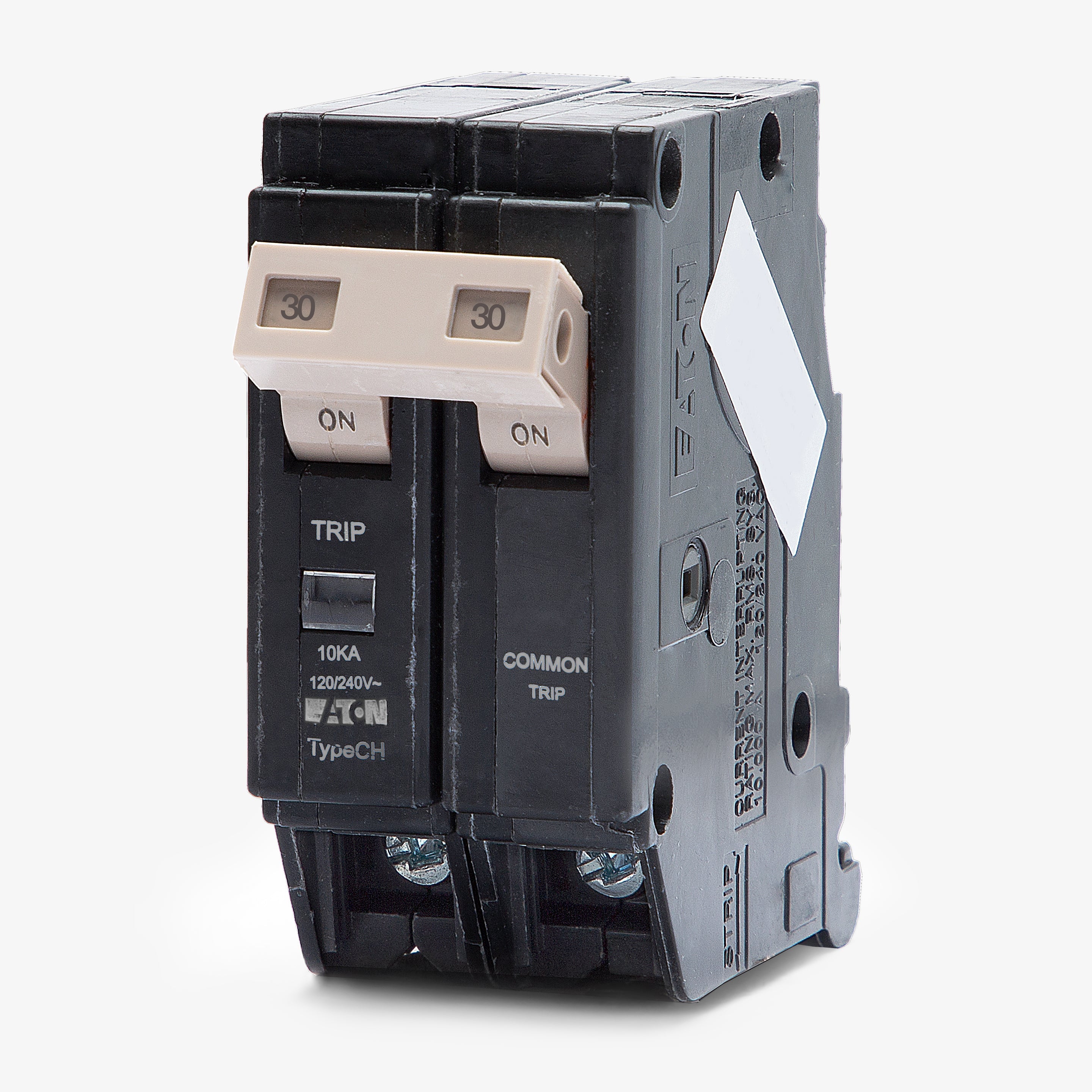

Cutler & Hammer CH230 Circuit Breaker 30A

Product Description

The Cutler & Hammer CH230 is a 30-amp, two-pole miniature circuit breaker designed for 120/240V systems, delivering essential thermal-magnetic protection. Built to handle everyday residential and commercial electrical demands safely, it installs into Eaton CH load centers using a standard 3/4-inch per pole plug-on connection. Featuring a 10kAIC rating, the breaker is HACR rated, ensuring compatibility with dedicated HVAC equipment.

• 30-amp
• Two-pole
• Thermal-magnetic protection

Product Highlights

The Cutler & Hammer CH230 circuit breaker provides reliable circuit protection with thermal-magnetic technology and easy installation in Eaton CH load centers.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH230

Technical Specifications

• Brand: Eaton / Cutler-Hammer
• Series: CH
• Part Number: CH230
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: Eaton CH Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-6 AWG (Cu/Al)
• Max Wire: 6 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch
• Standards: CSA C22.2 No. 5, UL 489, HACR
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: Common Trip, HACR Rated
• Category: Molded Case Circuit Breakers
• Type: CH
• Interrupting Rating (kA): 10
• HACR Rated: Yes
• Voltage Rating (VAC): 120/240
• Mounting Type: Plug-In
• Number of Poles: 2
• Ampere Rating (Amps): 30
