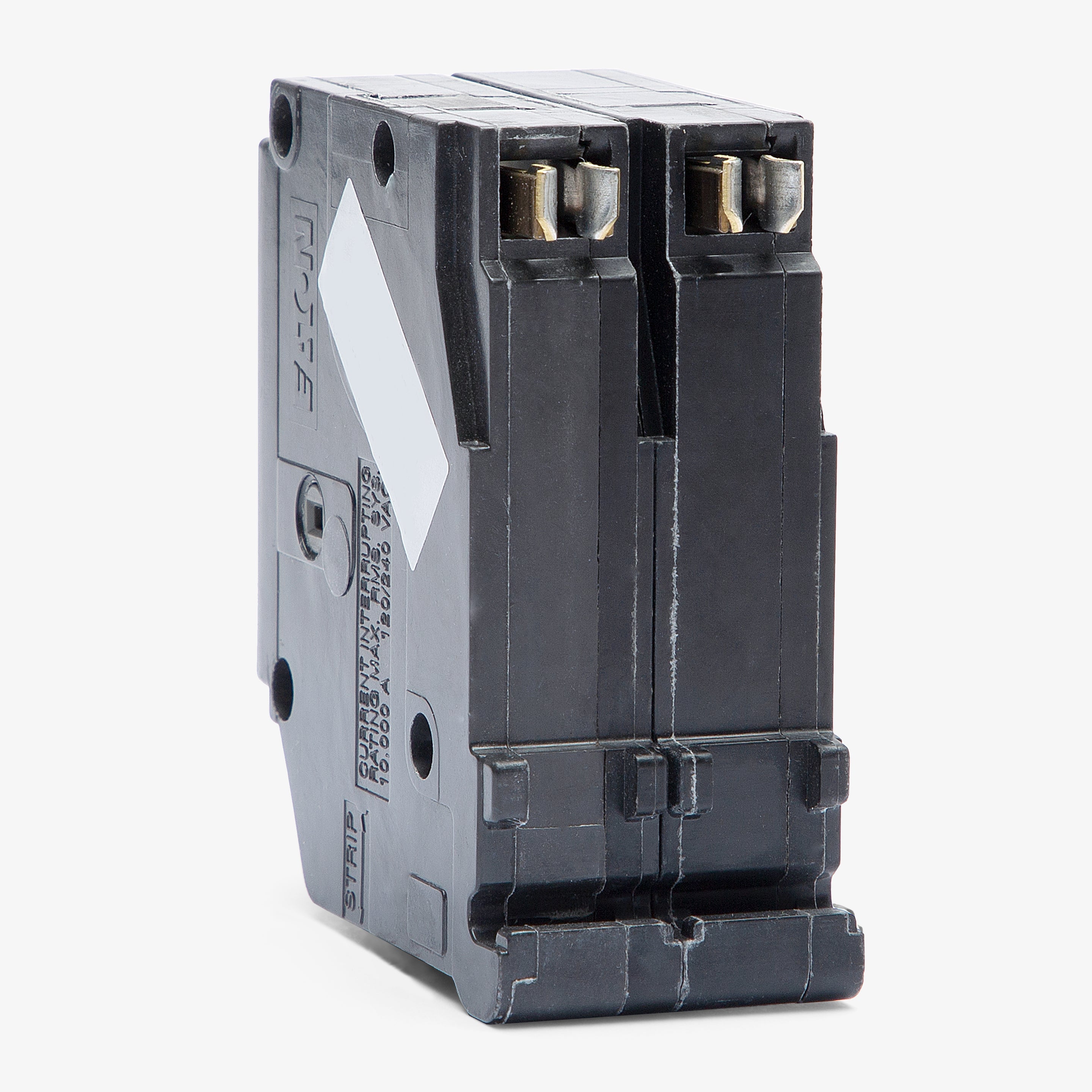

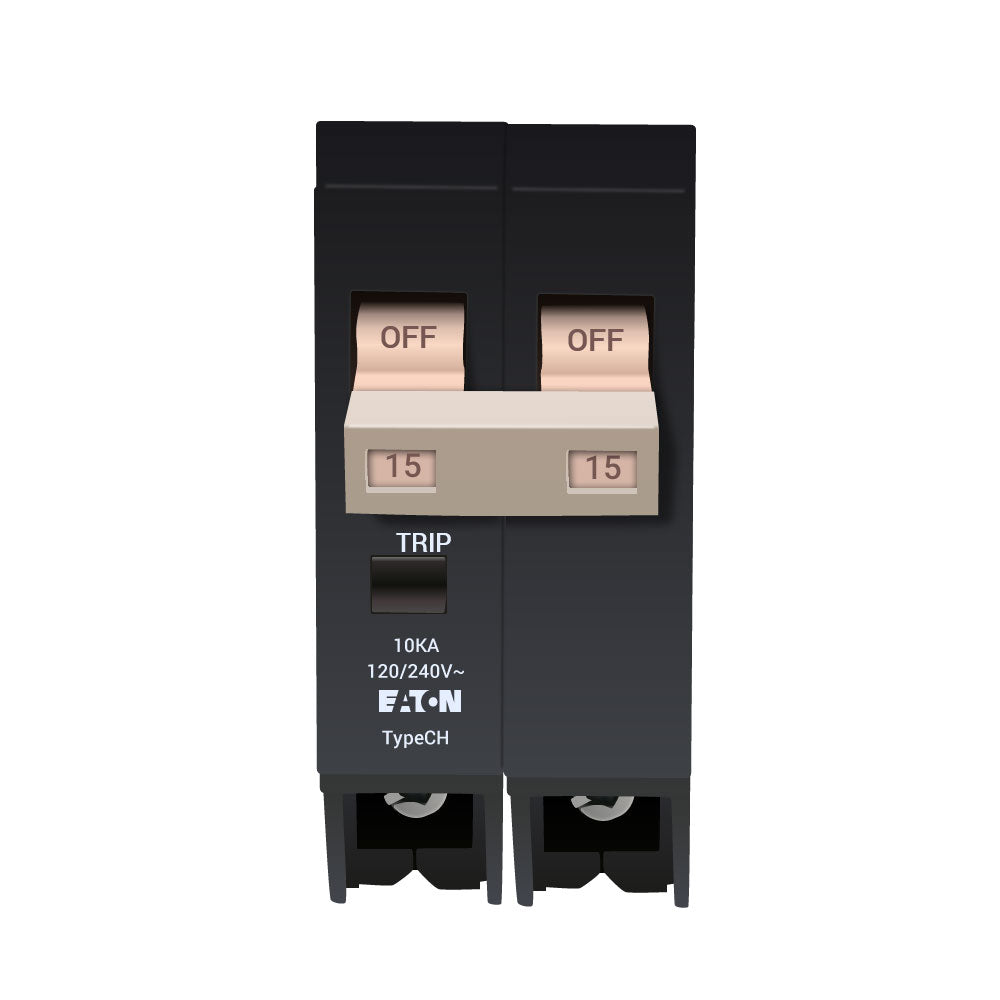

Cutler & Hammer CH215 2-Pole 15A 240V

Product Description

The CUTLER & HAMMER CH215 is a 15A, two-pole miniature circuit breaker designed for residential and light commercial applications. This plug-on breaker installs into Type CH load centers and accepts #14-8 AWG wiring. Rated at 10 kAIC at 120/240V, it features a common trip mechanism to ensure both poles open simultaneously. It is HACR rated for HVAC equipment.

• Designed for residential and light commercial applications
• Plug-on breaker installs into Type CH load centers
• Accepts #14-8 AWG wiring

Product Highlights

The Cutler-Hammer CH215 is a 15A 2-pole circuit breaker with a 10kA interrupt rating at 120/240V, suitable for CH load centers.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH215
• Country of Origin: United States

Technical Specifications

• Series: CH
• Part Number: CH215
• Amperage: 15A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC

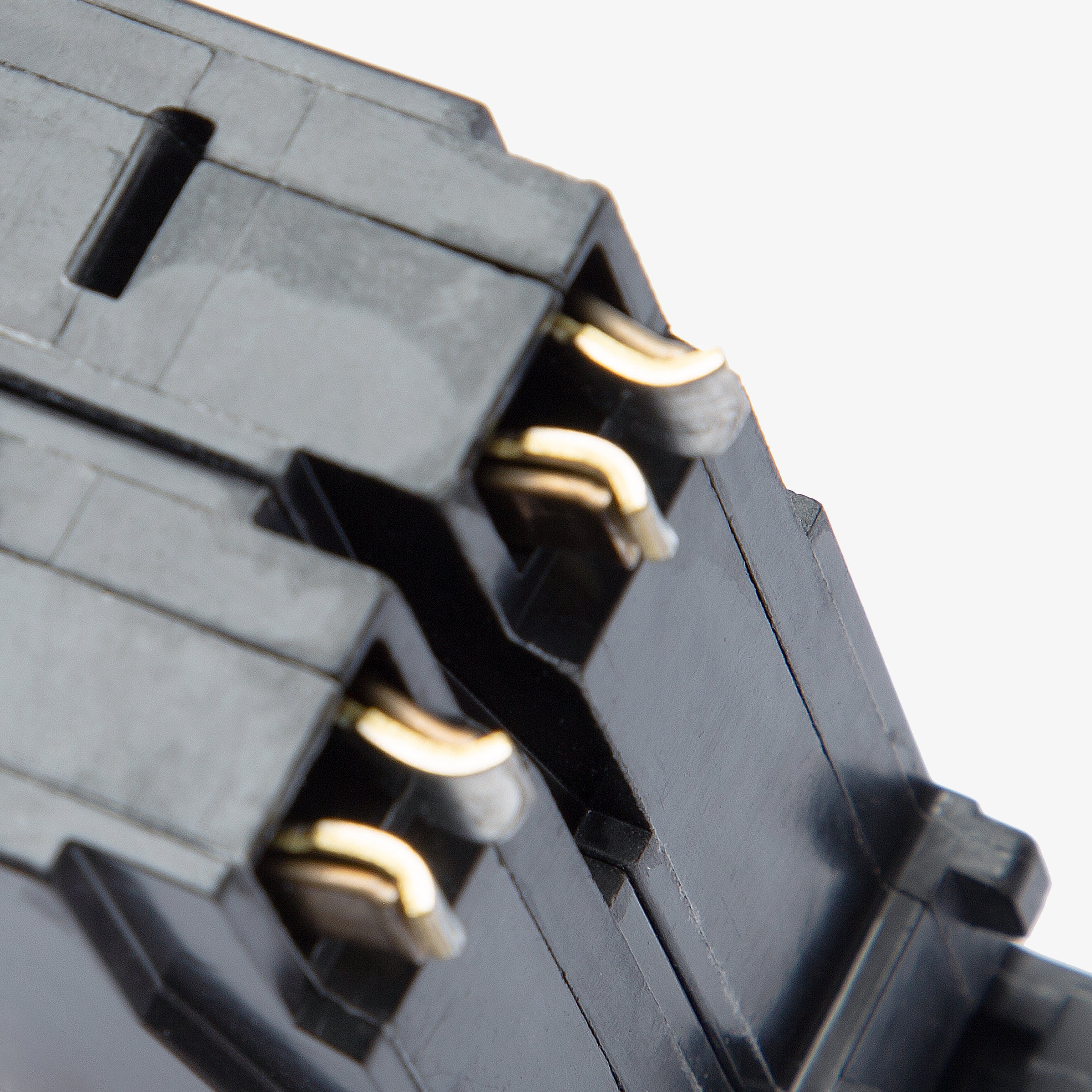

• Mounting Style: Plug-On

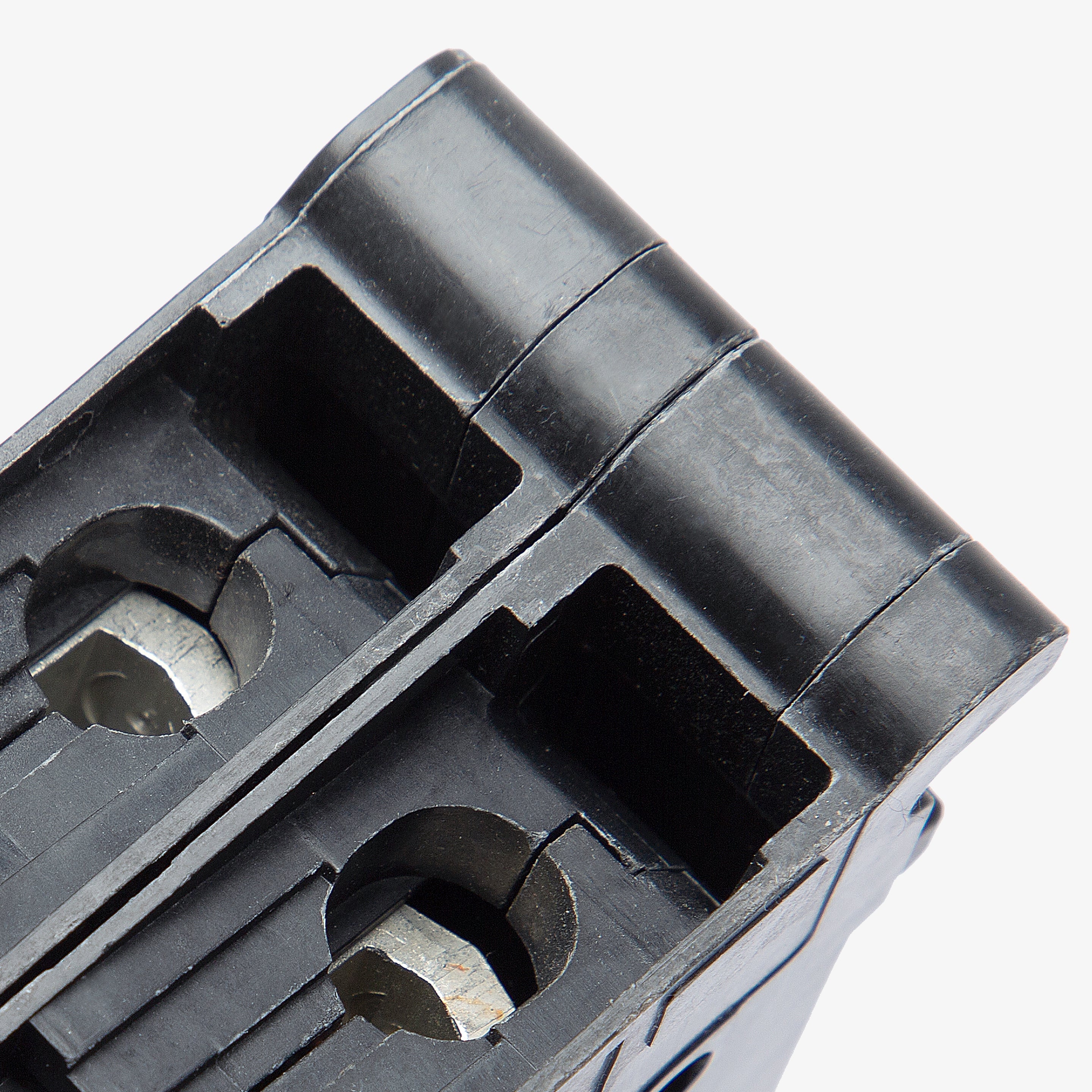

• Terminal Type: Box Lugs
• For Use With: Eaton CH Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Standards: UL 489, CSA C22.2, HACR
• Approval: CSA, UL
• Temp Rating: 60C to 75C

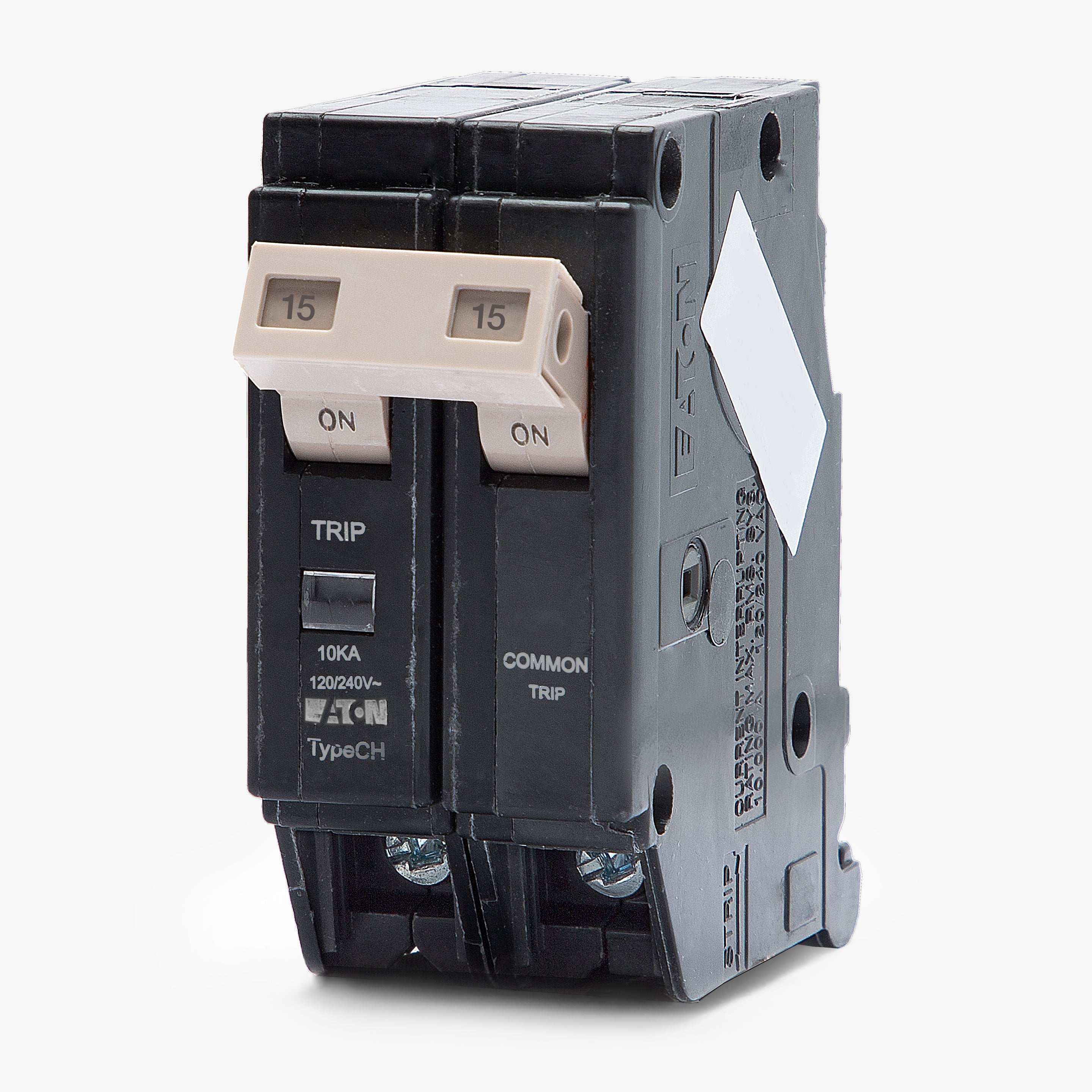

• Construction Features: Common Trip, HACR Rated
• Manufacturer: Eaton Cutler-Hammer
• UL Listed and CSA Certified: true
• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Temperature Rating: 75 deg C
• Trip Type: Common
• Voltage Rating: 120/240 VAC
• Wire Size: 14 to 10 AWG, 14 to 6 AWG, 14 to 8 AWG
• Brand: Cutler-Hammer
• Model: CH215
• MPN: CH215
• UPC: Does Not Apply
• Country of Origin: United States
• Condition: Used
