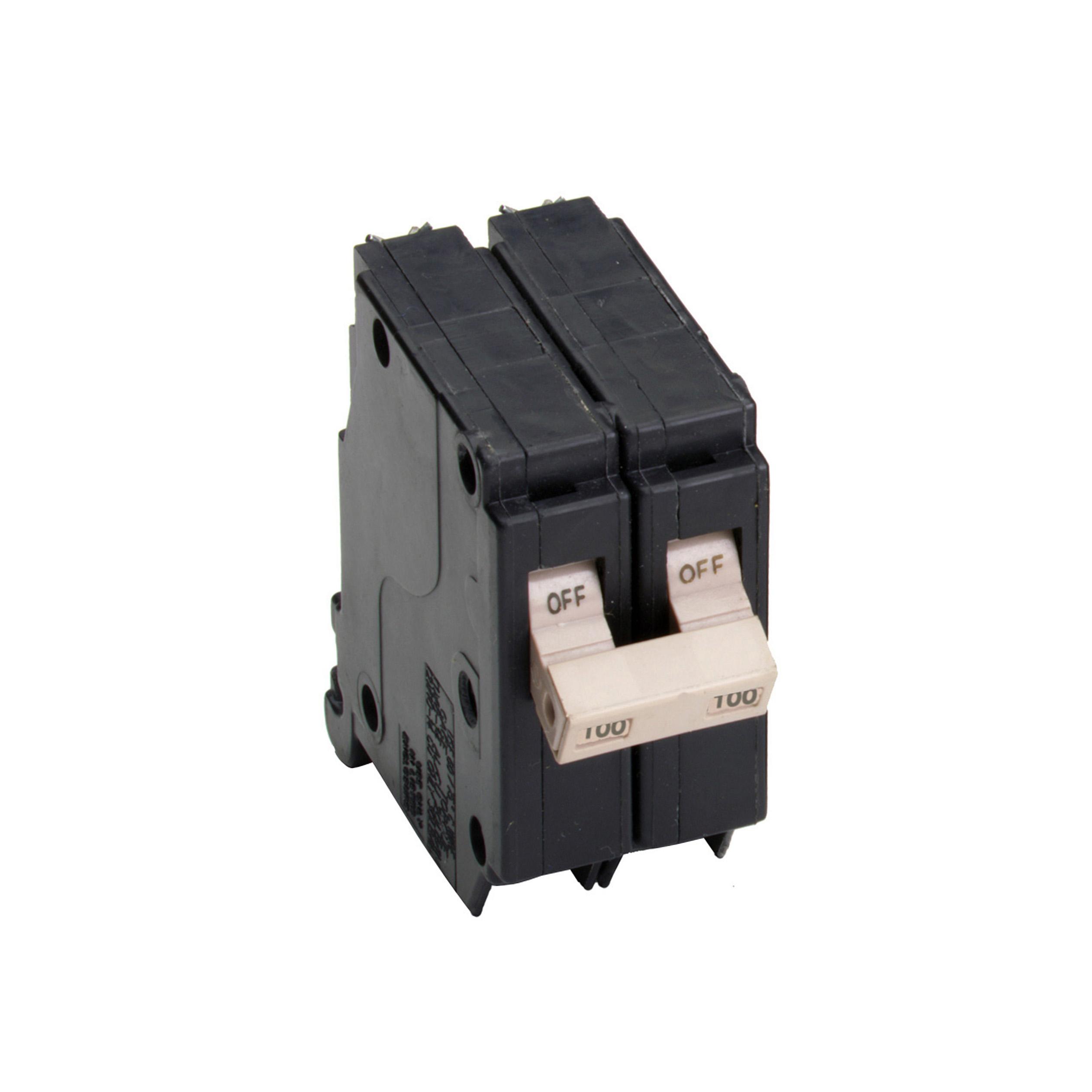

Cutler-Hammer CH2100 Plug-On Circuit Breaker 100A 2P 120/240V CH

Product Description

Cutler-Hammer CH2100 is a plug-on circuit breaker designed for electrical distribution systems. This two-pole circuit breaker supports a maximum amperage rating of one hundred amps and is suitable for use with type CH loadcenters. The device operates at a voltage rating of one hundred twenty to two hundred forty volts. It provides reliable protection and is used in various electrical applications.

• Two-pole configuration for enhanced circuit management
• Has a trip type common for fast response to electrical faults
• Compatible with type CH loadcenters for simple installation

Product Highlights

Durable and efficient, this circuit breaker ensures safety in electrical systems.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Amperage Rating: 100A

Technical Specifications

• Voltage Rating: 120/240V
• Number Of Poles: Two-pole
• Height: 4 inches
• Length: 18.5 inches
• Width: 8 inches
• Weight: 15.27 lbs
• Interrupt Rating: 10 kAIC
• Trip Type: Common
• Wire Size: #10-1/0 AWG Cu/Al
• Used With: Type CH Loadcenters
• Notes: Requires two three-quarter inch spaces
