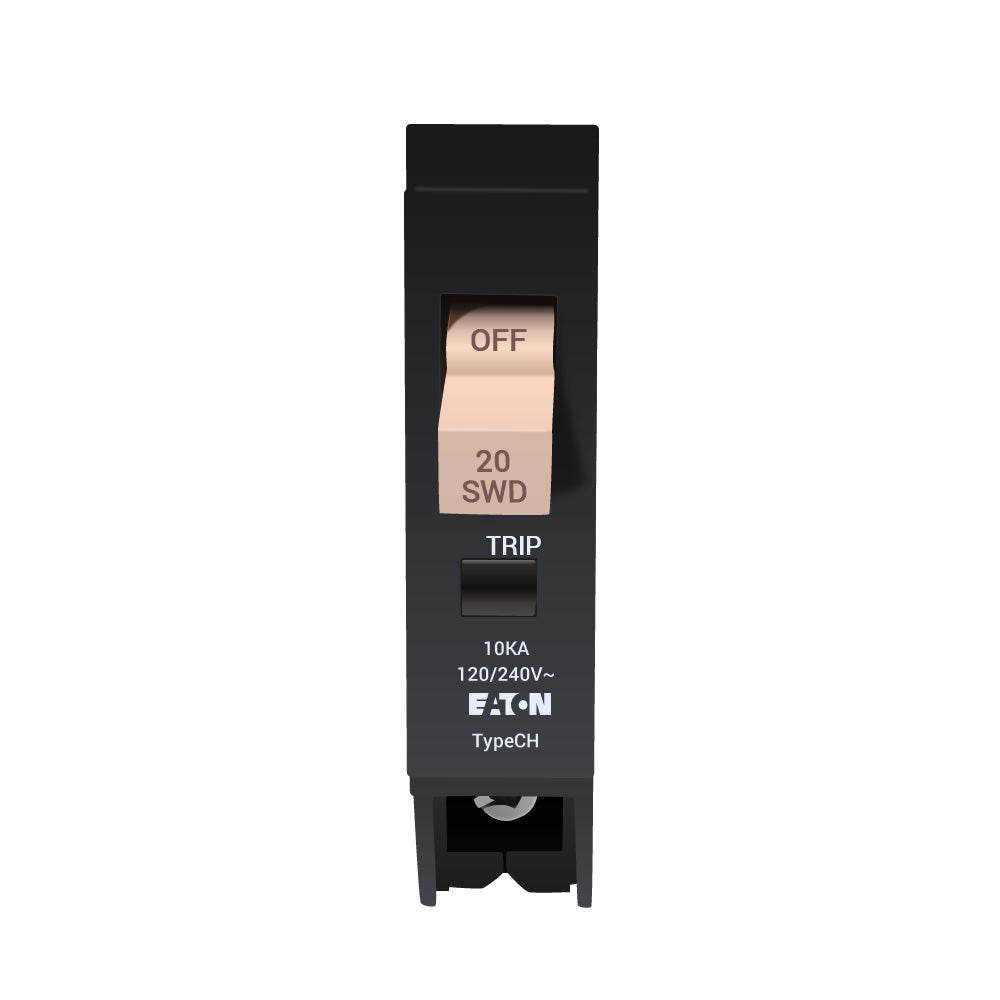

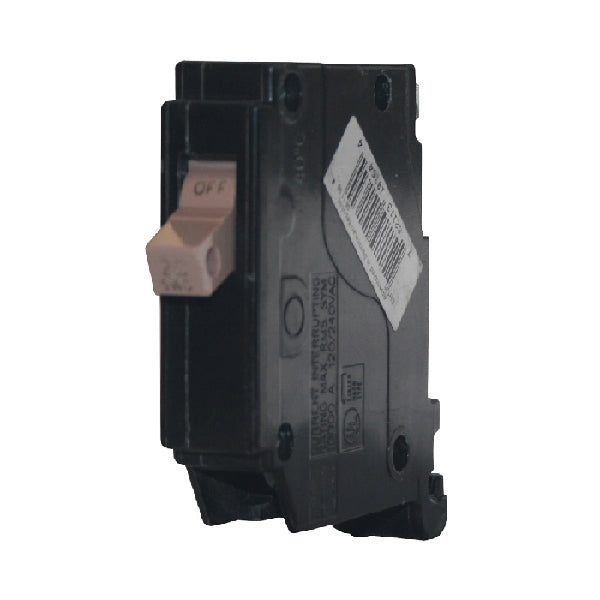

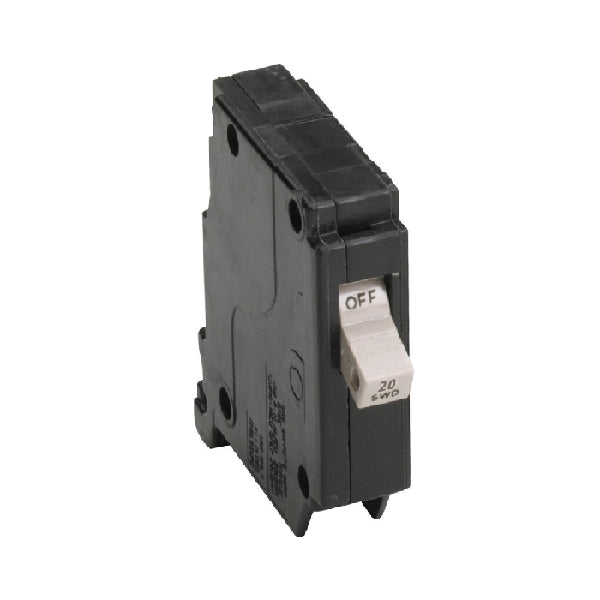

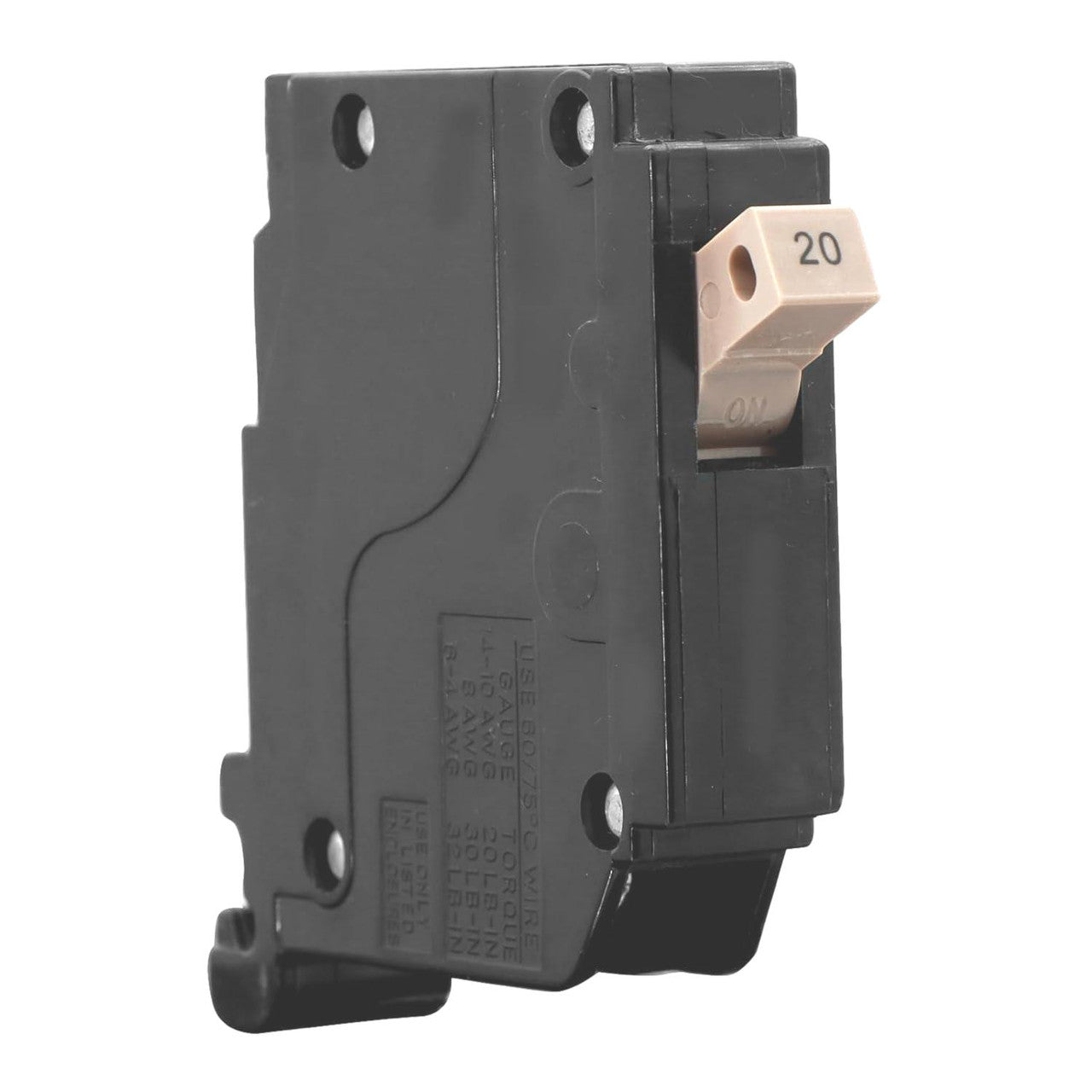

Cutler & Hammer CH120 Circuit Breaker 20 Amp Single Pole

Product Description

The Cutler & Hammer CH120 circuit breaker delivers reliable thermal-magnetic protection. This single-pole, 20-amp breaker is designed for standard branch circuits and offers a 120/240V. It installs easily into Eaton Type CH load centers with a plug-on connection. It handles 10kAIC fault currents and is fully SWD and HACR rated.

• 20-amp thermal-magnetic protection
• Single-pole breaker
• Installs quickly into Eaton Type CH load centers

Product Highlights

The Cutler & Hammer CH120 is ideal for standard branch circuits, maximizing panel space and ensuring safe operation for lighting and HVAC equipment.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH120
• Country of Origin: United States

Technical Specifications

• Brand: Cutler & Hammer
• MPN: CH120
• Series: CH
• Amperage: 20A
• Voltage: 201-250 V
• Poles: 1
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: Eaton CH Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG
• Available Options: Handle Lock, Padlock Attachment
• Standards: UL 489, HACR, SWD
• Approval: UL, CSA. CE
• Temp Rating: 60C to 75C
• Construction Features: SWD Rated, HACR Rated
• Product Length/Depth: 3.5 in
• Product Height: 3 in
• Product Width: 5 in
• Certifications: UL 489
• Catalog Notes: Switch duty rated, HACR rated, Single-Pole 120/240V Requires one 3/4-Inch space.
• Product Type: Thermal magnetic circuit breakers
• Used with: Type CH Loadcenters
• Amperage Rating: 20 A
• Voltage rating: 120/240 V
• Circuit breaker type: CH
• Interrupt rating: 10 kAIC
• Main circuit breaker: CH
• Wire size: (2) #14-10 AWG Cu/Al (1) #14-8 AWG
• Number of poles: Single-pole
• Type: Type CH 3/4-Inch standard circuit breaker
• Actuator Type: Magnetic, Thermal
• Current Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Phases: 1
• Operating Temperature: 60 to 75 deg C
• Suitable for: Type CH Load Center
• Wire Size: 14 to 8, 14 to 10 AWG
• Family: CH Series
• Pole: 1
• Amp: 20
• Volt: 120
• Category: Molded Case
• Connection: Plug-In
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@120V
• Application: Residential
• Style: Plug-on
• Model: Ch
• Number of Poles: 1
• Country of Origin: United States
