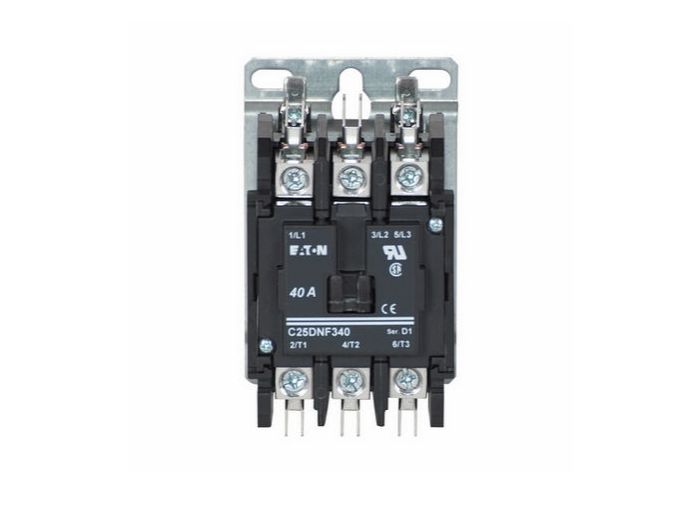

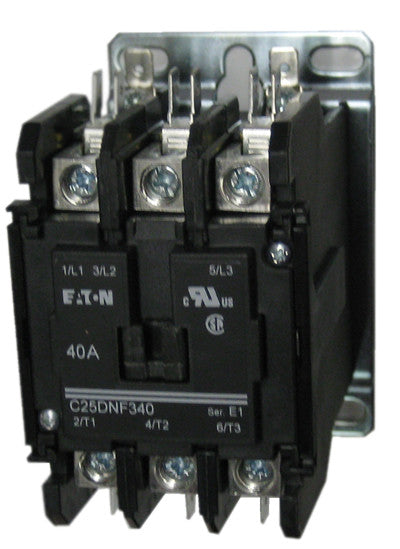

Cutler & Hammer C25DNF340T Definite Purpose Contactor 40A

Product Description

The CUTLER & HAMMER C25DNF340T definite purpose contactor is a 3-pole contactor rated for 40A with a 24 VAC coil. It features a compact design with a low VA coil and straight-through wiring. Designed to handle challenging installations, it ensures efficient switching of electrical circuits.

• Compact, efficient design with a low VA coil and straight-through wiring
• New contactor housing design effectively limits dust and other contaminants from magnet structure - reduces or eliminates noise
• Non-reversing contactor with 3-pole frame

Product Highlights

This contactor is ideal for HVACR applications and other low-cycle duty applications requiring low-cost switching of single and three-phase loads.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: C25DNF340T

Technical Specifications

• MPN: C25DNF340T
• Brand: CUTLER & HAMMER
• Product Name: Eaton definite purpose contactor
• Catalog Number: C25DNF340T
• UPC: 782116300709
• Product Length/Depth: 3.35 in
• Product Height: 2.3 in
• Product Width: 2.4 in
• Product Weight: 1.05 lb
• Warranty: 1 year
• Compliances: RoHS Compliant
• Certifications: CSA Certified UL Recognized
• Product Type: Definite purpose contactor
• Amperage Rating: 40A
• Number of poles: 3
• Type: Non-reversing
• Coil: 24 Vac, 50/60 Hz
• Enclosure: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 40 A
• Model: Contactor
• Resistive load: 50 A
• Terminals: Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
• Connection: Quick
• Load Current Inductive: 40A
• Relay Mounting: Panel Mount
• Operating Voltage: 600VAC
• Contact Configuration: 3PST
• Switching Power AC3: 7.5kW
• Switching Current AC1: 50A
• Coil Voltage VAC Nom: 24V
• Coil Voltage VDC Nom: -
• Switching Power AC1: 5.5kW
• Load Current Resistive: 50A
• Switching Current AC3: 40A
• Product Range: C25 Series
• SVHC: No SVHC (17-Dec-2015)
• Manufacturer: Eaton / Cutler Hammer
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: C25CN Series
• Maximum Operating Temperature: 150 °F, 65 °C
• Terminator Type: Box Lugs
• Alternate Mfr Part Number: D1C25DNF340T
• Weight: 1.3 lb
• Dimensions: 3.75 Inch X 0.00 in W X 3.35 in L
• Approvals: CSA Certified, UL Recognized
• Horsepower, Motor, Max at 115 V: 7.5
• Horsepower, Motor, Max at 230 V: 10
• Coil Power: 24 Vac, 50/60 Hz W
• Control Voltage: 24 V
• Contact Current Rating: 40 A
• Item model number: C25DNF340T
• Item Weight: 1.05 pounds
• ASIN: B00WN4SO1S
• Product Series: C25
• Family Series: Eaton Contactors, C25 Series
• Description: Eaton definite purpose contactor, Quick, 40A, 24 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, 2 and 3 pole, 40A, Contactor, Three-pole, 50A, Box lugs posidrive setscrew and quick connect terminals side-by-side, Non-reversing
• Nominal Coil Voltage: 24 VAC
• Coil Voltage: 24 volt AC coil
• Inductive Current Rating: 40 A
• Coil Type: Magnetic
• Poles: 3NO
• Frame Size: D
• Termination: Box Lug, Quick Connect
• Shunt: No
• Enclosure Rating: Open
• Resistive Rating: 50 A
• Net Weight: 1 lb
• Gross Weight: 1.05 lbs
• Number of Pole: 3
• AMP Rating (Inductive): 40A
• AMP Rating (Resistive): 50A
• Locked Rotor AMPS: 240A
