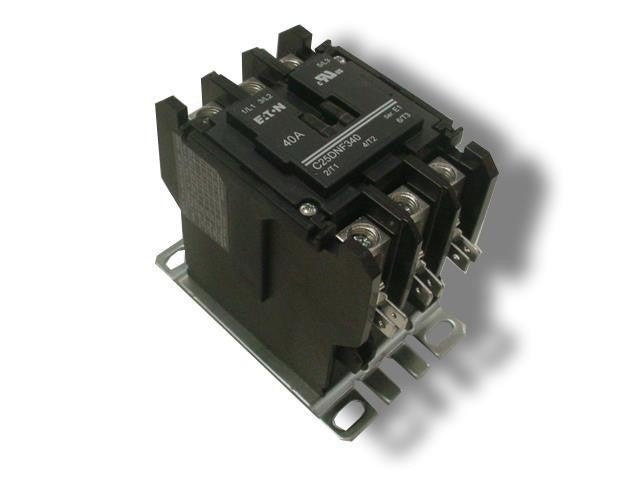

Cutler & Hammer C25dnf240a definite purpose contactor 40A

Product Description

The CUTLER & HAMMER C25DNF240A is a definite purpose contactor featuring a mounting plate and quick connect terminals. This two-pole, non-reversing contactor is suitable for use in heating/air conditioning, refrigeration, data processing, and food service applications. It has a low VA coil and straight-through wiring. The contactor limits dust and contaminants from entering the magnet structure, reducing noise.

• UL Recognized and CSA Certified
• Equipped with box lugs (posidrive setscrew) and quick connect terminals
• Operating temperature range: -25 to +70°C

Product Highlights

The Cutler Hammer C25 series contactor offers a compact design, efficient performance, and is ideal for various applications requiring reliability and consistency.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: C25DNF240A
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton definite purpose contactor
• Catalog Number: C25DNF240A
• UPC Code: 782116300396
• Product Length/Depth: 3.35 in
• Product Height: 3.75 in
• Product Width: 2.4 in
• Compliances: RoHS Compliant
• Certifications: UL Recognized CSA Certified
• Product Type: Definite purpose contactor
• Amperage Rating: 40A
• Number of Poles: 2
• Type: Non-reversing
• Coil Voltage: 208-240 Vac
• Contact Configuration: 1 NO
• Enclosure: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 40 A
• Model: Contactor
• Resistive load: 50 A
• Terminals: Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
• Connection: Quick
• Control Voltage: 120 V
• Horsepower Rating: 3 hp
• Power Rating: 2.2 kW
• Primary Type: IEC Contactor
• Series: C25DN Series
• Special Features: Auxiliary Contacts
• Temperature Operating Range: -25 to 70 C
• Termination: Box Lugs, Quick Connect Terminal
• Voltage Rating: 120 V
• Amps: 40
• Volts: 600
• Poles: 2
• AMP Rating (Inductive): 40A
• AMP Rating (Resistive): 50A
• Locked Rotor AMPS: 240A
• Coil Power: 110-120 Vac, 50/60 Hz W
• Enclosure Rating: Open with metal mounting plate
• Maximum Operating Temperature: 70 "
• uses: 1. The contactor will be100% fully tested before shipping.
