Product Description

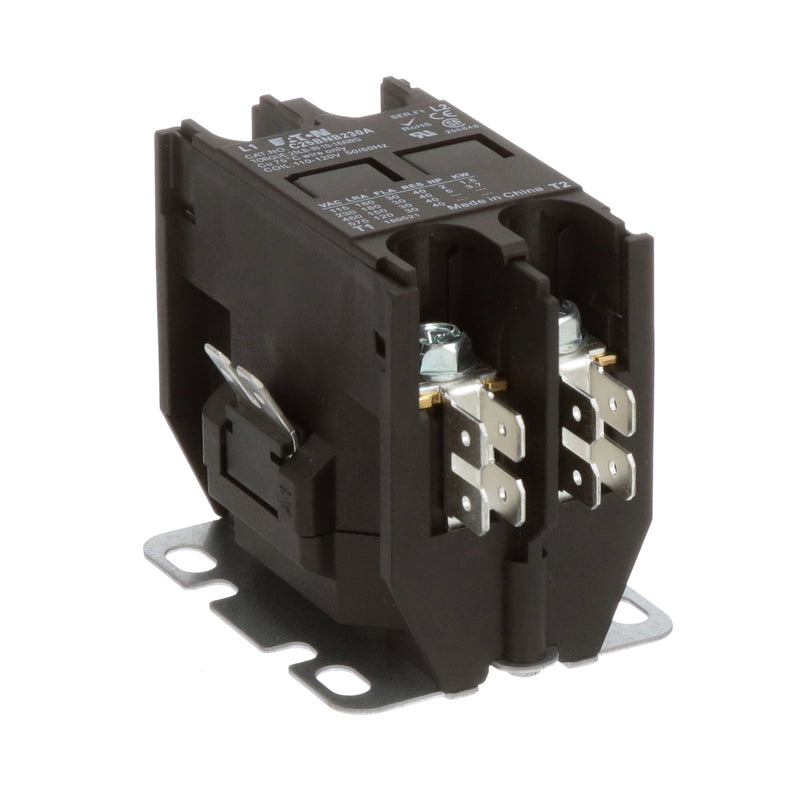

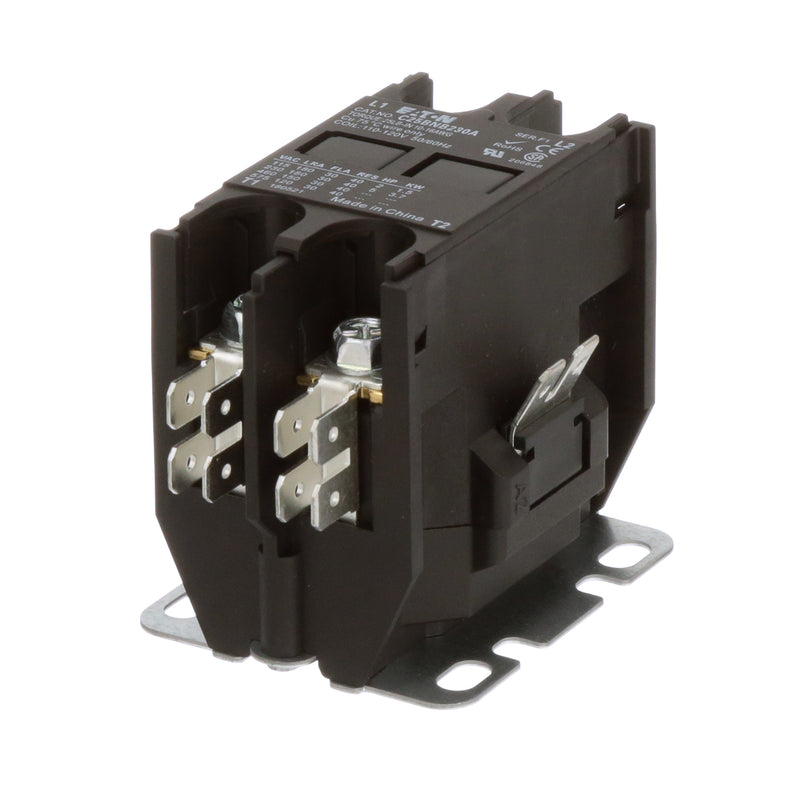

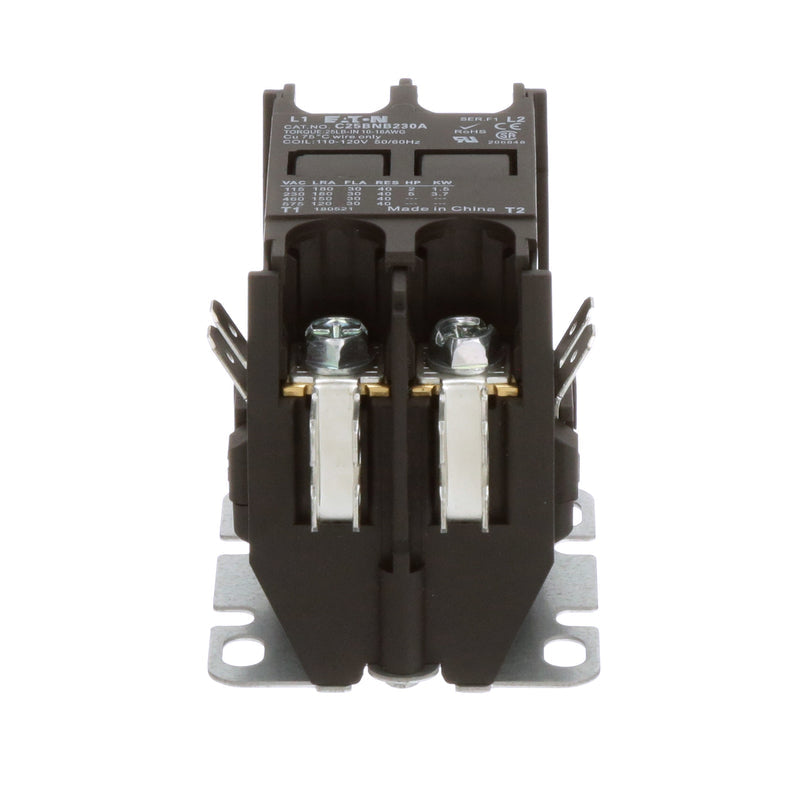

The Cutler Hammer C25BNB230A is a definite purpose contactor designed for motor and power control in HVAC, refrigeration, and industrial applications. This compact, two-pole contactor features a 110-120V AC coil and an open enclosure with a metal mounting plate. It also has binding head screw and quick-connect terminals for flexible installation.
- Completely encased design impervious to dust and other environmental elements
- Single two three and four-pole configurations
- Open components and enclosed designs
Product Highlights
Ideal for heating, air conditioning, refrigeration, and data processing equipment.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: C25BNB230A
-
Country of Origin: United States
Technical Specifications
-
Product Name: Eaton definite purpose contactor
-
Catalog Number: C25BNB230A
-
UPC: 786685116020
-
Product Length/Depth: 2.32 in
-
Product Height: 3.19 in
-
Product Width: 1.97 in
-
Product Weight: 0.6 lb
-
Warranty: 1 year
-
Compliances: RoHS Compliant
-
Certifications: UL Recognized CSA Certified
-
Product Type: Definite purpose contactor
-
Amperage Rating: 30A
-
Number of Poles: 2
-
Type: Non-reversing
-
Coil Voltage: 110 to 120
-
Coil: 110-120 Vac, 50/60 Hz
-
Enclosure: Open with metal mounting plate
-
Frame size: Compact, two-pole
-
Inductive full load: 30 A
-
Model: Contactor
-
Resistive load: 40 A
-
Terminals: Binding head screw and quick connect terminals (side-by-side)
-
Connection: Quick
-
Frequency Rating: 50/60
-
Maximum Load Current: 30
-
Minimum Order Qty: 1
-
Order Interval: 1
-
Catalog ID: C-HC25BNB230A
-
Dimensions: 3.19 in L x 2.32 in W x 1.97 in H
-
Enclosure Type: Open With Metal Mounting Plate
-
Terminal: Binding Head Screw and Quick Connect
-
Standard & Approvals: ARI 780/790 Standard, CE Certified, CSA Certified, EN 60947-4-1, IEC 60947-4-1, RoHS Compliance, UL File No. E1491, Guides NLDX2 and NLDX8
-
Brand: Cutler Hammer
-
Voltage: 120 V
-
MPN: C25BNB230A
-
Country of Origin: United States
-
Condition: Used
-
Part Number: C25BNB230A
-
Manufacturer: Eaton - Cutler Hammer
-
Category: Motor Control
-
Item Subcategory: Contactor
-
Family: C25 Series
-
Configuration: Non-Reversing
-
Coil Voltage Maximum: 120
-
Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
-
Coil Voltage Minimum: 120
-
Compatible Frames: DK,KDB,KD,HKD,KDC
-
Frequency: 50 Hz
-
UNSPSC Code: 39120000
-
Mounting Type: Panel Mount
-
Series: C25BN Series
-
Maximum Operating Temperature: 70 °C
-
Minimum Operating Temperature: -25 °C
-
Alternate Mfr Part Number: F1C25BNB230A
-
Weight: 0.7 lb
-
Approvals: CSA Certified, UL Recognized
-
Enclosure Rating: Open with metal mounting plate
-
Horsepower, Motor, Max at 115 V: 2
-
Horsepower, Motor, Max at 230 V: 5
-
Coil Power: 110-120 Vac, 50/60 Hz W
-
Control Voltage: 120 V
-
Contact Current Rating: 30 A
