Cutler & Hammer C25ANB130H Contactor 30A 277 VAC

Product Description

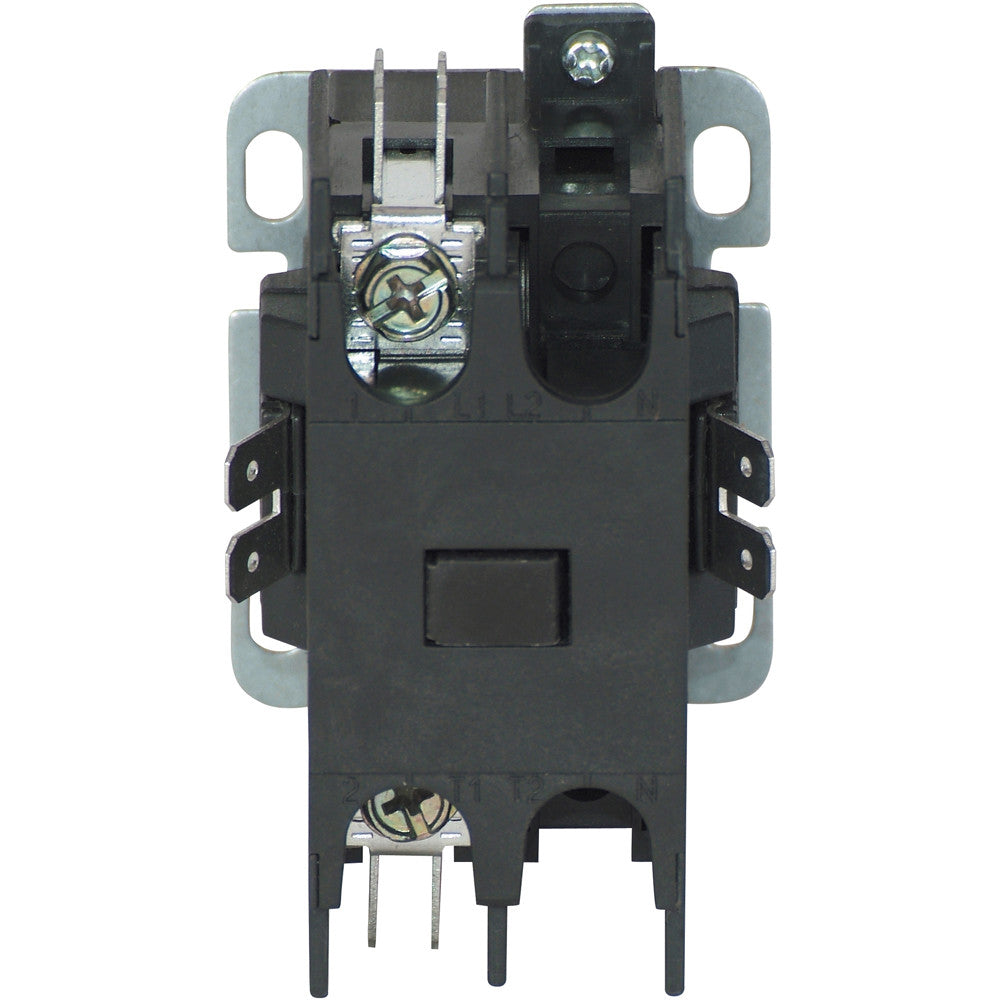

The CUTLER & HAMMER C25ANB130H definite purpose contactor is an electrically operated switching device designed for HVACR and low-cycle duty applications. This compact, single-pole contactor features quick connect terminals, an open enclosure, and double break contacts. It has a 30A inductive current rating and a 40A resistive rating, with a 277 VAC coil at 50/60 Hz.

• Quick Connect Terminals
• Open Enclosure
• Double Break Contacts
• Class B Magnetic Coil

Product Highlights

Designed for motor control and HVAC applications, this contactor features a non-reversing configuration and is UL and CSA certified.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: C25ANB130H
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: C25ANB130H
• Manufacturer: Eaton
• Product Series: C25
• Family Series: Eaton Contactors, C25 Series
• Description: Eaton definite purpose contactor, Quick, 30A, 208-240 Vac, 50/60 Hz, Open with metal mounting plate, Compact, single-pole, 30A, Contactor, Single-pole, 40A, Binding head screw and quick connect terminals side-by-side, Non-reversing
• Nominal Coil Voltage: 277 VAC
• Coil Voltage: 277 VAC
• Inductive Current Rating: 30 A
• Poles: 1
• Termination: Quick Connect, Screw
• Enclosure: Open
• Resistive Rating: 40 A
• Approvals: CSA, UR
• Brand: Cutler Hammer
• Category: Motor Control
• Item Subcategory: Contactor
• Family: C25 Series
• Type: C25
• Voltage: 600
• Amperage: 30
• Phase: 1
• Configuration: Non-Reversing
• Coil Voltage Maximum: 277
• Coil Voltage Minimum: 277
• Frequency: 50 Hz
