Cutler & Hammer C0500E2AFB TFMR 500VA

Product Description

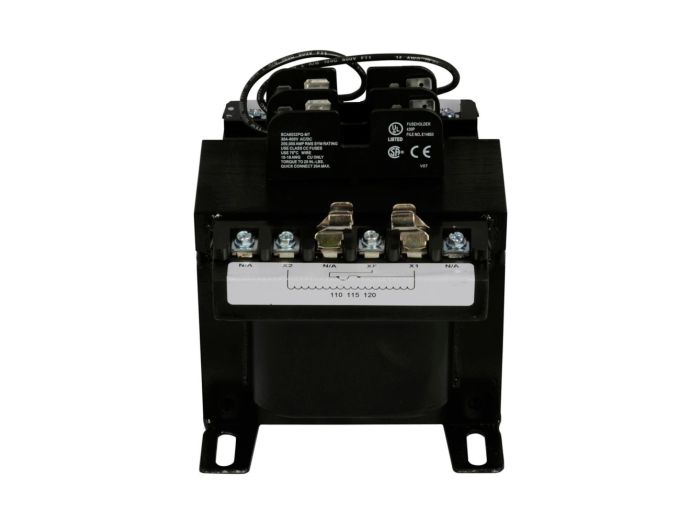

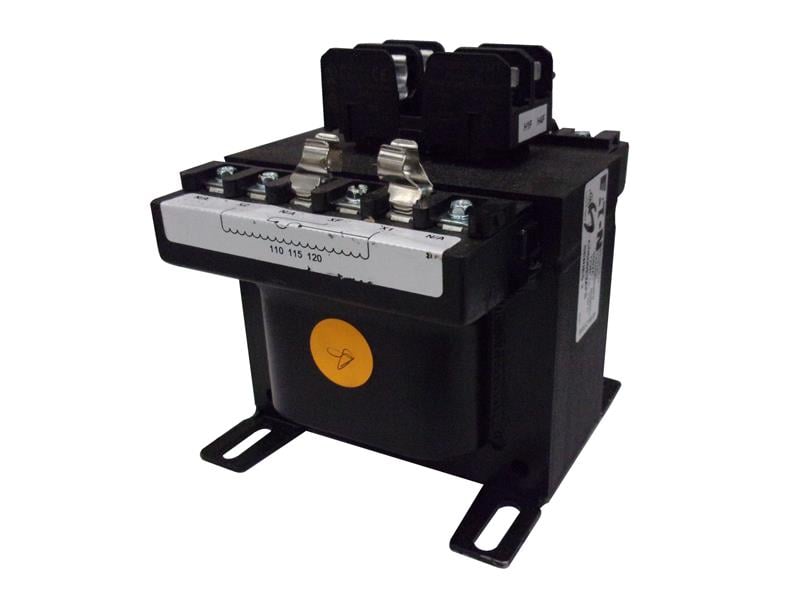

The CUTLER & HAMMER C0500E2AFB is an Eaton Type MTE industrial control transformer. It provides stepped–down voltages to machine tool control devices, enabling control circuits to be isolated from all power and lighting circuits. It has primary voltage of 240 x 480v, 230 x 460v, 220 x 440v and secondary voltage of 120/115/110v with 500 VA.

• Epoxy encapsulated
• Laminations of high quality silicon steel to minimize core losses and optimize performance
• 50/60Hz operation

Product Highlights

This transformer is suitable for applications where compact construction is demanded. It allows the use of grounded or ungrounded circuits.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: C0500E2AFB
• Country of Origin: United States

Technical Specifications

• Catalog Number: C0500E2AFB
• Coil material: Copper windings
• Design: MTE
• Tap size: None
• Primary Voltage: 220 x 440 V, 230 x 460 V, 240 x 480 V
• Secondary Voltage: 120/115/110 V
• Temperature rating: 55°C
• Volt ampere rating: 500 VA
• Compliances: RoHS Compliant
• Certifications: UL Listed CSA Certified cUL Certified
• Special features: Primary fuse block
• UPC: 786680420962
• Product Length/Depth: 5.51 in
• Product Height: 6.14 in
• Product Width: 5.23 in
• Product Series: MTE
• Family Series: Eaton Transformers, MTE Series
• Phase: 1
• Type: Control Transformer
• Enclosed: No
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Termination: Integrally Molded Terminal Blocks
• Cover Included: No
• Insulation Class: Class B
• Temperature Rise (F): 176 °F
• Approvals: CSA, UL
• Net Weight: 19.7 lbs
• Gross Weight: 19.7 lbs
• Power Rating: 500 VA
• Mounting Style: foot mount
• Primary Voltage Rating (AC): 220/480 V
• Secondary Voltage Rating (AC): 110/120 V
• Maximum Operating Frequency: 60 Hz
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Numeric ID: 2510413
• Primary Type: Industrial Transformer
• Secondary Current: 4.2 A
• Series: Type MTE Series
• Weight: 18.00 lbs
• Category: Control Transformer
