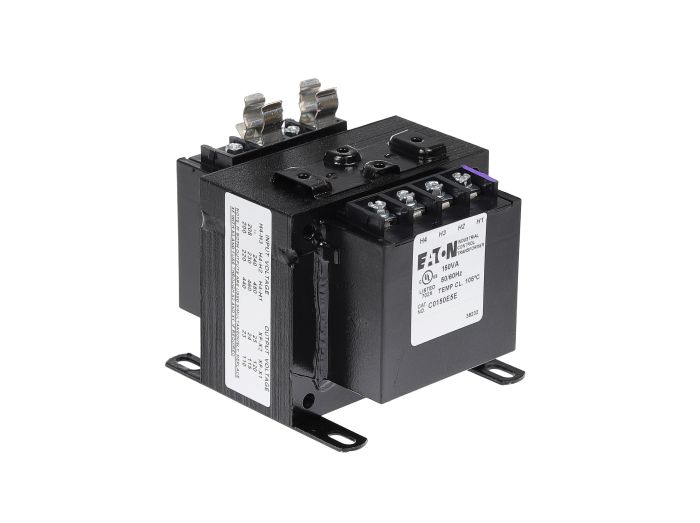

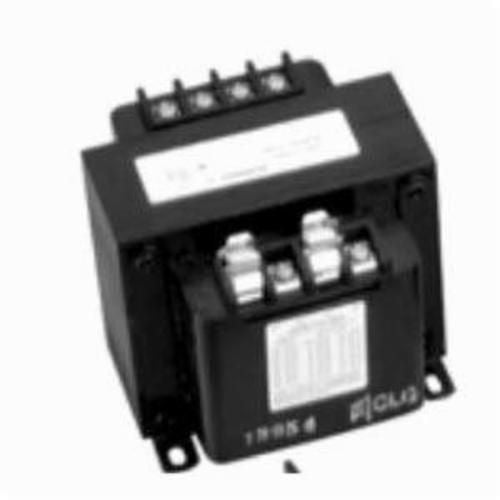

Cutler & Hammer C0150E5E Eaton Type MTE Industrial Control Transformer 150 VA

Product Description

The Cutler & Hammer C0150E5E is an Eaton Type MTE industrial control transformer. It features primary voltage options of two hundred volts, two hundred twenty volts, four hundred forty volts, two hundred eight volts, two hundred thirty volts, four hundred sixty volts, and two hundred forty volts, four hundred eighty volts. It provides secondary voltage options of twenty-three volts, one hundred ten volts, twenty-four volts, one hundred fifteen volts, and twenty-five volts, one hundred twenty volts. This transformer is designed to lower voltages for machine tool control devices, separating control circuits from power and lighting circuits. It operates efficiently at fifty or sixty Hertz.

• Epoxy encapsulated for enhanced reliability
• Laminations of high-quality silicon steel to reduce core losses
• Molded-in terminals for improved durability

Product Highlights

This transformer is ideal for controlling voltage in industrial environments, ensuring safe and reliable operation for machine tools.

Product Information

Standard Information

• Product Name: Eaton Type MTE industrial control transformer
• Catalog Number: C0150E5E

Technical Specifications

• UPC: 786680420368
• Product Length/Depth: 3.75 inches
• Product Height: 3.63 inches
• Product Width: 3.96 inches
• Warranty: One year from installation or eighteen months from shipment
• Compliances: RoHS Compliant
• Certifications: CSA Certified, UL Listed
• Primary Voltage: 200/220/440 V, 208/230/460 V, 240/480 V
• Secondary Voltage: 23/110 V, 24/115 V, 25/120 V
• Phase: 1
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Power Rating: 0.15 kVA
• Insulation Class: Class B
• Temperature Rating: 55°C
