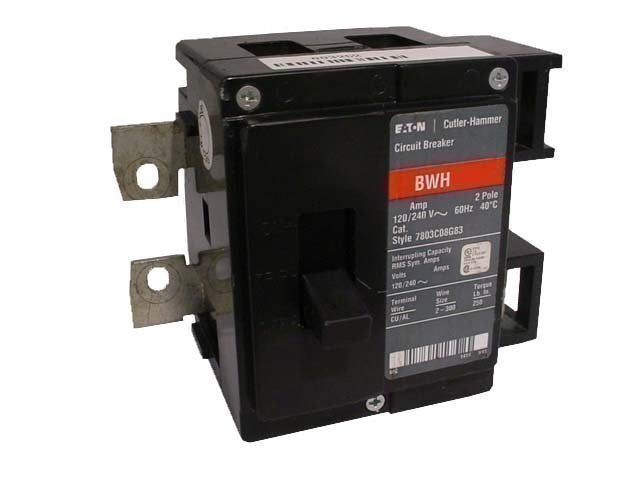

Cutler & Hammer BWH2150 BR Main Circuit Breaker 150A

Product Description

The CUTLER & HAMMER BWH2150 is a type BW plug on circuit breaker. Rated at 120/240 volts and 150 amps, it is single phase with 2 poles for wire size #2-300 MCM. It is generally used in loadcenters, panelboards, or similar applications and are rated though maximums of 225 Amp and 240 Volts.

• Cutler-Hammer type BW plug on circuit breaker
• Rated at 120/240 volts and 150 amps
• Single phase

Product Highlights

The CUTLER & HAMMER BWH2150 circuit breaker is ideal for use in main circuit breaker applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BWH2150
• Country of Origin: Unknown

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: BWH2150
• Poles: 2
• Amperage: 150A
• Voltage: 120/240 VAC
• Product Length/Depth: 6.25 in
• Product Height: 5.25 in
• Product Width: 5.25 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Catalog Notes: Series combination rating with Types BD, BR, BQ, BQC and GFCB is 22,000 AIC with BRH main and 25,000 AIC with BWH main.
• Product Type: Main breaker
• Used with: MHM150P, MHM150B, MHR150P, MHR150B
• Amperage Rating: 150 A
• Circuit breaker frame type: BWH
• Interrupt rating: 25 kAIC
• Main circuit breaker: BR
• Wire size: #2 AWG-300 kcmil Cu/Al
• Number of poles: Two-pole
• Type: Main circuit breaker
• Maximum Amperage: 150 A
• Suitable For: Interior
• Material: ABS/Plastic
• Bundle Listing: No
• Number of Positions: 1
• Model: BWH2150
• Current Rating: 150 Amps
• Current Type: AC
• Operation Method: On/Off
• Mounting Style: Bolt-On
• Number of Throws: 1
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Number Of Poles: 2
• AIC Rating: 25kA@240V
• Family: BWH Series
• Amp: 150
• Volt: 240
• Phase: 1
• Category: Molded Case / 2-Pole
• Connection: Bolt On
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• Dimensions (HxWxD): 5.25" x 5.25" x 6.25"
• Frequency: Ac 50-60Hz
• Enclosure: Open(None)
• Frame: BR Frame
• Series: Type BR Miniature
