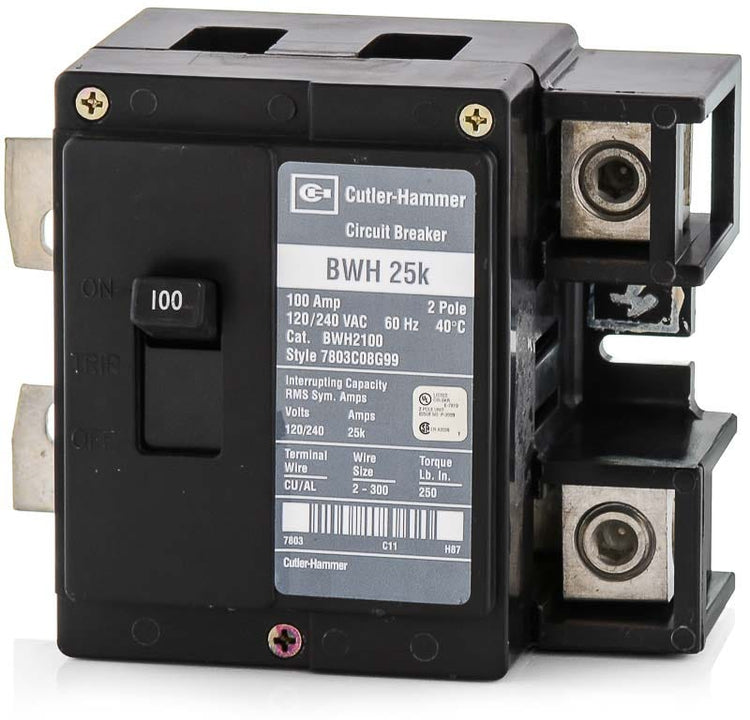

Cutler & Hammer BWH2100 100A 2 Pole Molded Case Circuit Breaker

Product Description

The Cutler & Hammer BWH2100 is a thermal-magnetic circuit breaker providing 100 amps of main service protection. Rated for 25kAIC at 120/240VAC, it is designed for higher fault currents in residential and commercial electrical systems. The unit installs into Eaton Type BR load centers, meter breakers, and ECB unit enclosures. It features standard lug terminals.

• 100 amps of main service protection
• Rated for 25kAIC at 120/240VAC
• Thermal-magnetic circuit breaker

Product Highlights

The Cutler & Hammer BWH2100 circuit breaker has fixed long-time and instantaneous trip settings, responding accurately to overcurrent events.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BWH2100

Technical Specifications

• Brand: Eaton / Cutler-Hammer
• Series: BWH
• Amperage: 100A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 25kA @ 120/240VAC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Eaton Type BR Load Centers, ECB Unit Enclosures, Meter Stacks, Meter Breakers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 2 AWG - 300 kcmil (Cu/Al)
• Max Wire: 300 kcmil
• Min Wire: 2 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Bell Alarm
• Accessories: Lugs Included
• Standards: Federal Specification W-C375, UL 489
• Approval: UL
• Temp Rating: -25C to 70C
• Construction Features: Main Breaker, HACR Rated, High Interrupting Capacity
• Manufacturer: Eaton Cutler-Hammer
• Manufacturer Part No: BWH2100
• Product Type: Thermal Magnetic Circuit Breaker
• Product Line: BW Breakers
• Part Number: BWH2100
• UPC: 782116061105
• Rated Current: 100 A
• Rated Voltage: 120/240 V
• Number of Poles: 2 Poles
• Phase Type: 1 Phase
• Connection Type: Bolt On Connection
• Interrupting Rating at 240 V: 25 kA
• Protection Type: Thermal Magnetic Protection
• Functions: LI - Long-Time and Instantaneous
• Operating Humidity: 80% (Non-Condensing)
• Installation Altitude: 1000 MSL
