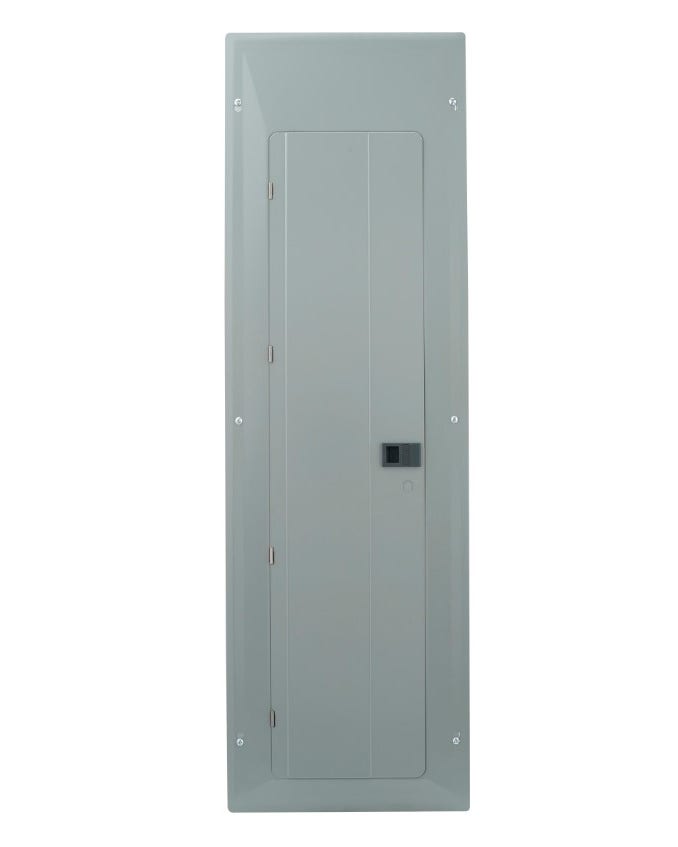

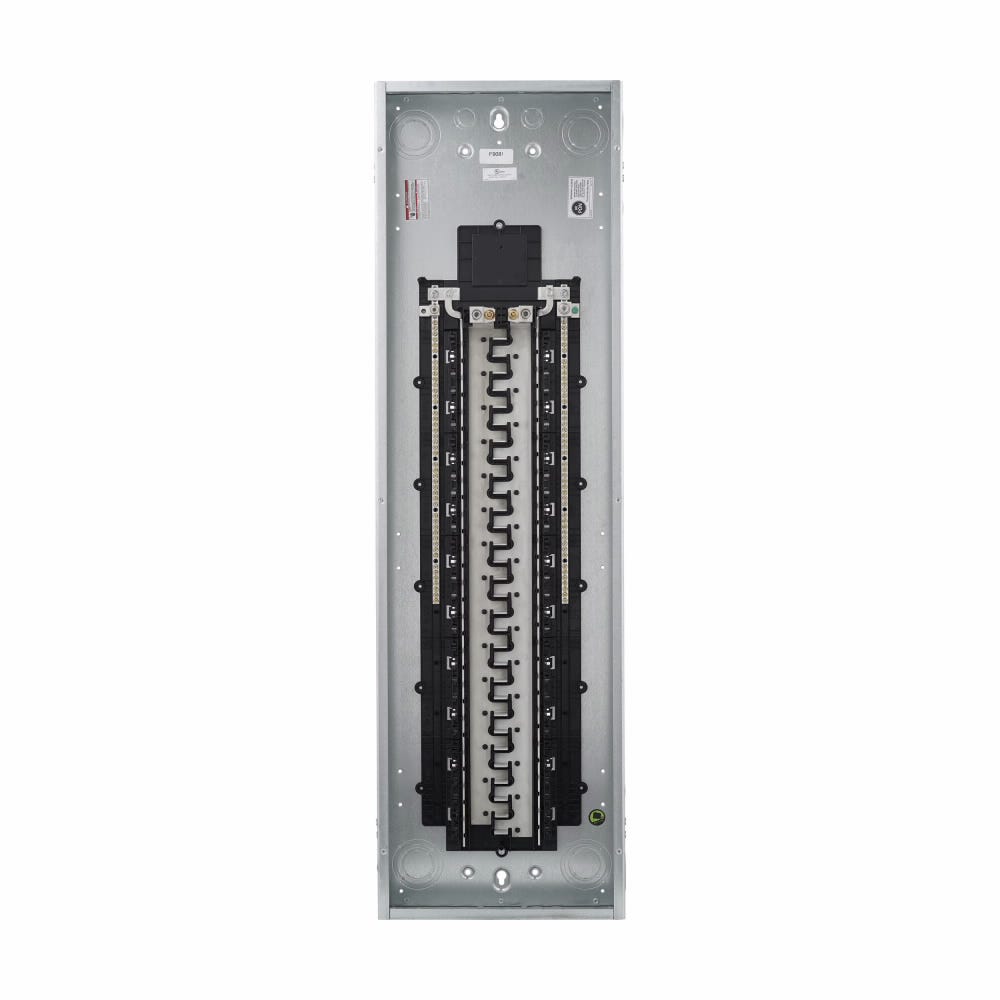

Cutler & Hammer BRP60E200 Main Lug/Convertible 200A 60 Spaces 120 Circuits

Product Description

The CUTLER & HAMMER BRP60E200 is a 200A main lug convertible load center designed for indoor electrical distribution. This single-phase panel features 60 spaces and 120 circuits, accommodating 120/240 V applications. It includes convertible lugs installed and is housed in a NEMA 1 metallic enclosure, suitable for residential and light commercial use. It is compatible with Type BR 1-inch breakers.

• Provides 60 spaces and 120 circuits for flexible electrical distribution.
• Features a 200A amperage rating and 120/240 V single-phase voltage.
• Equipped with convertible lugs and a NEMA 1 metallic enclosure for indoor installation.

Product Highlights

This 200A main lug convertible load center offers 60 spaces and 120 circuits, ideal for single-phase indoor electrical systems requiring flexible wiring and robust protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BRP60E200

Technical Specifications

• Number of Spaces: 60
• Special Features: Convertible lugs installed
• Interrupt Rating: 25 kAIC
• Phase: Single-phase
• Wire Size: #6-1/0 AWG Cu/Al
• Bus Material: Aluminum
• Main Circuit Breaker Type: CSR
• Enclosure Rating: NEMA 1
• Amperage Rating: 200 A
• Mounting Type: Combination
• Enclosure Material: Metallic
• Cover: Cover included
• Compatible Breaker Type: Type BR 1-inch breakers
• Number of Wires: Two hots neutral and ground
• Number of Circuits: 120
• Voltage Rating: 120/240 V
• Certifications: UL 67
