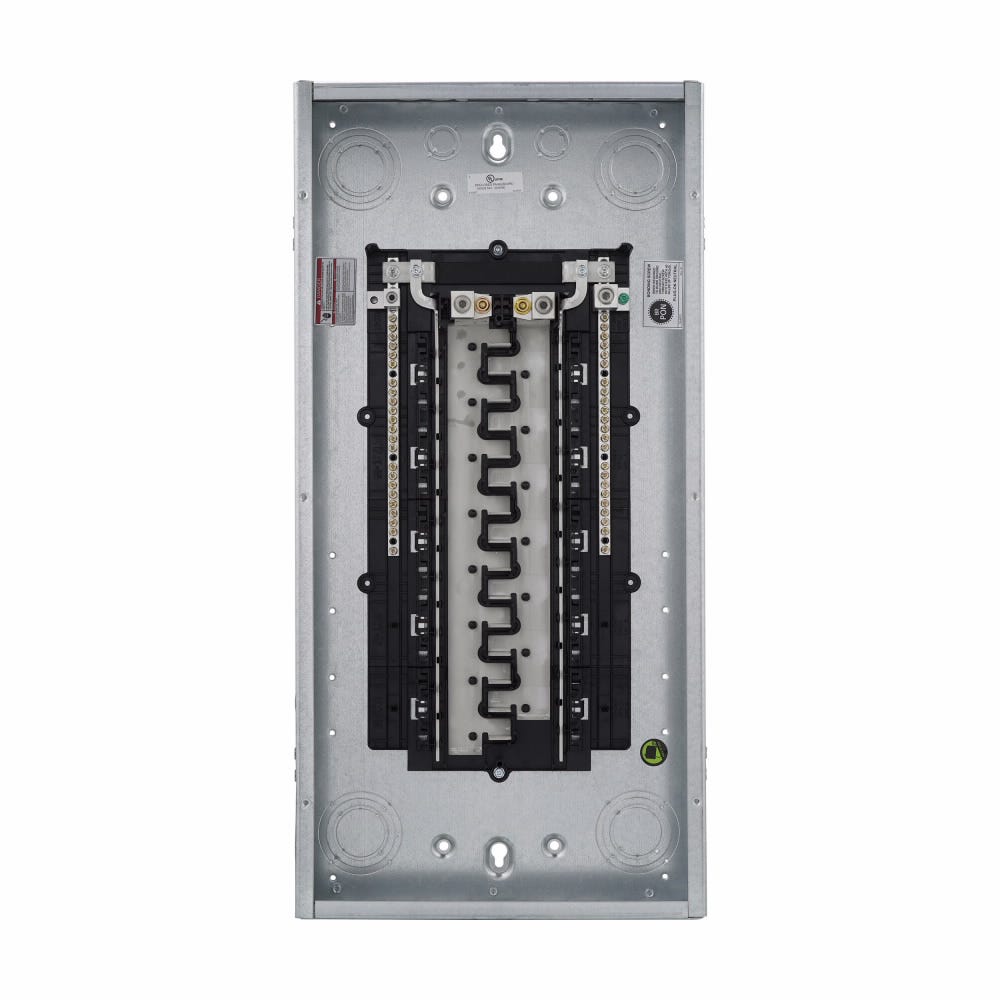

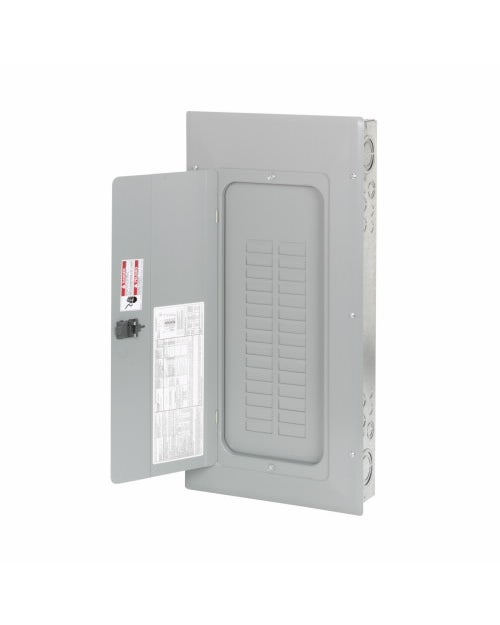

Cutler & Hammer BRP30L200 BR Main Lug Loadcenter 200 A 30 Spaces

Product Description

The CUTLER & HAMMER BRP30L200 is an Eaton BR main lug loadcenter designed for indoor use. Rated at 200 A, this loadcenter features an aluminum bus material and a NEMA 1 enclosure. It accommodates 60 circuits within 30 spaces and is suitable for single-phase, 120/240V systems. The unit includes a CSR2200 main circuit breaker and supports Type BR 1-inch breakers.

• Rated for 200 A
• Features 30 spaces and supports up to 60 circuits
• Constructed with an aluminum bus and a metallic NEMA 1 enclosure

Product Highlights

This main lug loadcenter is ideal for indoor applications requiring a robust and reliable power distribution solution.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BRP30L200
• Country of Origin: US

Technical Specifications

• Product Type: Main lug loadcenter
• Type: MLO
• Amperage Rating: 200 A
• Bus material: Aluminum
• Cover: Cover included
• Main circuit breaker: CSR2200
• Mounting: Surface, flush
• Number of circuits: 60
• Number of spaces: 30
• Phase: Single-phase
• Used with: Type BR 1-inch breakers
• Voltage rating: 120/240V
• Box size: X5
• Color: Gray
• Enclosure: NEMA 1
• Enclosure material: Metallic
• Interrupt rating: 10 kAIC
• NEMA rating: NEMA 1
• Number of wires: Two hots, neutral and ground
• Product Length/Depth: 29.12 in
• Product Height: 3.88 in
• Product Width: 14.31 in
• Certifications: UL 50 UL 67
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Enclosure Material: Metal
• Mounting Type: Surface, Flush
• Number of Phases: 1 Phase
• Size: X5
• Voltage: 120/240 Volt
• Breaker Mounting: Plug-on
• Rating - Volts: 120/240 VAC
• Mains: Lug
• Main Breaker: CSR2200 10 kA IC
• Rating - Amps: 200 A
• Enclosure Size - Dimensions: LxWxH: 29.12 x 14.31 x 3.88 in.
